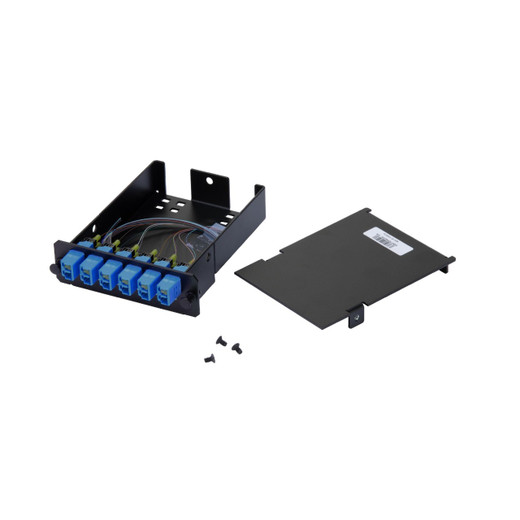

Panduit FCS9N-12-10R OptiCom LC Fiber Splice Cassette

The Panduit FCS9N-12-10R is a factory pre-loaded 12-fiber splice cassette engineered for high-density single-mode installations in datacenter MDA/HDA environments, telecom central offices, and enterprise backbone terminations. Built on the OptiCom platform with LC duplex connectors on the front and an unterminated 12-fiber ribbon pigtail on the splice side, this cassette delivers factory-grade termination quality while eliminating field polishing variables. The steel housing provides mechanical protection in congested rack pathways, and the ribbon architecture consolidates what would otherwise require six discrete LC duplex adapters into a single modular slot—critical when rack space and cable management are constrained.

Key Features

• 12-fiber OS2 single-mode capacity in compact cassette form factor
• LC duplex connectors (front) with unterminated ribbon pigtail (splice side) for fusion splicing to incoming trunk cables
• 9/125 μm OS2 fiber optimized for 10G/40G/100G and long-haul applications up to 10 km and beyond
• Steel cassette housing resists crushing and impact in high-density rack environments
• OptiCom platform compatible—integrates with Panduit's modular fiber enclosure ecosystem
• Pre-loaded factory terminations ensure consistent insertion loss and return loss performance
• Ribbon pigtail format accelerates mass fusion splicing versus individual fiber handling
• Black finish for professional appearance in visible pathways
• Standard polish (PC) insertion loss specification
• Carton quantity of 10 cassettes supports staged deployment or multi-floor rollouts

The FCS9N-12-10R uses ribbon fiber architecture on the splice side, where all 12 fibers are held in a flat ribbon with precise 250 μm spacing. This allows you to fusion-splice an entire 12-fiber trunk to the cassette pigtails in a single alignment step using a ribbon fusion splicer, cutting splice time from 10–15 minutes per fiber down to under two minutes for the entire group. The LC duplex front connectors follow standard pinout conventions, so each cassette provides six duplex LC ports—position 1 carries fibers 1-2, position 2 carries fibers 3-4, and so on through position 6 (fibers 11-12). OS2 single-mode fiber delivers 1 dB/km maximum attenuation at 1310 nm and 0.4 dB/km at 1550 nm, supporting 10GBASE-LR, 40GBASE-LR4, and 100GBASE-LR4 optics at distances well beyond multi-mode's 550-meter OM4 limit. The 9 μm core diameter maintains modal dispersion below 3.5 ps/(nm·km), ensuring clean signal integrity on DWDM and coherent transmission systems where chromatic dispersion matters.

This cassette is built for modular fiber distribution frames where you're terminating 144-fiber or 288-fiber trunk cables into manageable breakout groups. In a typical datacenter horizontal distribution area (HDA), you'd fusion-splice twelve 12-fiber ribbon groups from a 144-count backbone trunk to twelve FCS9N-12-10R cassettes, then load those cassettes into a 1U or 2U OptiCam enclosure to present 72 LC duplex ports to your switching infrastructure. The steel housing is thicker gauge than polymer cassettes, preventing deformation when cable ties are over-torqued or when adjacent cassettes press against each other in fully populated enclosures. Pre-loaded terminations are polished and inspected at the factory under controlled temperature and humidity, eliminating the field variables that cause high insertion loss—contaminated polishing film, inconsistent pressure, or incorrect polish angle. Ribbon splicing requires a ribbon fusion splicer (Fujikura 70R, Sumitomo Z2C, or equivalent) and a ribbon cleaver, but the workflow is faster and more repeatable than individual fiber splicing, especially when you're landing multiple 144-count trunks in a single maintenance window. The unterminated pigtail length is typically 1.5 meters from the cassette body, giving you enough slack to route into a splice tray while keeping excess manageable inside the enclosure.

Steel construction sets this cassette apart in environments where rack doors slam shut, cables get pulled during moves/adds/changes, or maintenance techs work in low-clearance spaces where tools and cassettes collide. The OptiCom platform cassette standard is compatible with enclosures from Panduit and several cross-licensed manufacturers, so you're not locked into a single-vendor distribution frame if your design calls for mixed infrastructure. For a 40G QSFP+ breakout application, a single cassette can support three 40GBASE-LR4 links (each consuming four fibers), leaving you room for future 100G migration without reTerminating the backbone trunk—OS2's bandwidth headroom extends well into 400GBASE-FR4 territory when your optics budget allows the upgrade.
