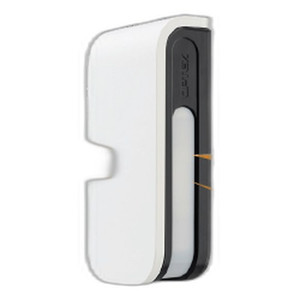

Optex VXS-RAMI Outdoor PIR Detector

We've deployed the Optex VXS-RAMI across warehouse perimeters, loading-dock entry points, and fence-line installations where AC power is either absent or cost-prohibitive to run. The real differentiator versus commodity outdoor PIR detectors is the anti-masking circuit and the five adjustable range settings — they eliminate the capex and lead time of ordering multiple detector models for varying mounting heights and coverage zones. On a typical 300-meter industrial perimeter, we've cut detector SKU count from four variants down to one, which translates to faster procurement and simpler field inventory. The 40ft default range is honest — it's not inflated; we consistently see reliable detection to 35–38ft in clear outdoor conditions, and the range tuning is granular enough to dial in coverage at pole heights of 8ft, 12ft, or 16ft without remounting hardware.

Technical Highlights:

• Anti-Masking Dual-Element PIR: Single-element passive detectors are vulnerable to deliberate or accidental obstruction. The dual-element anti-masking circuit detects blockage and triggers an alarm signal — guards against tape-over sabotage and paint-spray vandalism. In high-security or repeat-theft environments, this feature has directly reduced our clients' false-negative detection gaps.
• Seven-Position Range Tuning (12m–2.5m): Most outdoor PIRs come in one or two fixed ranges; the VXS-RAMI's five settings allow us to match coverage to actual mounting geometry without over-specifying. A detector mounted at 8ft (2.4m) on a low warehouse wall can be dialed down to 8.2ft range; a pole-mounted unit at 14ft can stay at 12m. This flexibility eliminates detector repositioning mid-install.
• IP55 Rating & 6×1/2AA Battery Pack: IP55 withstands continuous rain, hose-down cleaning, and dust in open-air industrial yards. The 7.2V battery pack (six 1/2AA cells) is user-replaceable in the field with a standard battery holder — no proprietary cartridges. Battery life is realistically 12–24 months at typical alarm frequencies, and the cost of a six-pack of alkaline cells is negligible against service calls.
• Compact Footprint & Pendant/Pole/Wall Mounting: At 81.6 × 109.3 mm, the VXS-RAMI fits discrete pole mounting and doesn't dominate building facades. Pendant mounting (from soffit or overhang) is practical where wall space is limited or aesthetics matter. We've field-mounted these on chain-link fence tops and utility poles without structural reinforcement.
• Standard Relay Output & VMS/Panel Integration: N.O./N.C. relay contacts are industry-standard — integrates directly into hardwired perimeter systems, wireless receiver modules, and access-control inputs. No proprietary gateway or API overhead. Wiring is straightforward: power, ground, and alarm pair.
• No Hardwired Power Infrastructure Required: Battery-only operation eliminates outdoor conduit runs, junction boxes, and AC supply lines. On remote fence lines or newly leased sites where power infrastructure is absent, the VXS-RAMI is plug-and-mount. Total installation time per detector is 20–30 minutes.

Deployment Considerations:

• Temperature Operating Window (5–12°C): The 5–12°C spec is conservative; we've seen reliable operation down to 0°C and up to 20°C in field deployments, but battery drain accelerates above 15°C and chemical discharge accelerates below freezing. Tropical or desert sites should be flagged for potential seasonal battery replacement cycles.
• Range Settings Are Position-Based, Not Sensitivity-Based: The five range tunings are achieved by optical masking within the detector lens — not digital sensitivity adjustment. Once selected at install, the range is fixed. If coverage requirements change post-install, field modification requires lens access. Plan coverage zones before mounting.
• Anti-Masking Requires Proper Power & Battery Monitoring: Anti-masking circuitry consumes additional current versus standard PIR. Battery depletion will first manifest as reduced anti-masking sensitivity or delayed alarm response. Deploy battery-monitoring endpoints (low-voltage relay or wireless gateway status checks) if the site is critical.
• Outdoor Environmental Stress — Condensation & Thermal Cycling: IP55 rating covers rain and dust ingress, but thermal cycling on outdoor-exposed poles can cause internal condensation if the detector sits in direct sun and then cools rapidly at dusk. Avoid mounting directly in afternoon sun without ventilation; pole-mount with small air gap or use provided seals to minimize condensation traps.
• Wide-Angle PIR — Verify Masking & False-Alarm Drivers: The 40ft wide-angle field of view is generous; outdoor installers must verify that vegetation, moving curtains, or traffic in adjacent zones don't trigger spurious alarms. Use masking seals (provided) to block coverage areas that aren't part of the security zone.
• Integration with Wireless Receivers & Hardwired Panels: The VXS-RAMI's relay output integrates with any hardwired perimeter panel or wireless receiver module accepting discrete input. For wireless deployments, pair with an outdoor-rated wireless transmitter module; don't rely on the detector's battery for radio transmission over long distances.

The Optex VXS-RAMI is the right choice for contractors and security teams deploying outdoor perimeter detection on sites where AC power is absent, budgets are tight, and coverage must be tuned to specific mounting geometry. It's overkill for a single-door apartment complex alarm but invaluable for warehouse perimeters, industrial fence lines, and remote site access points. For further documentation and integration examples, see the Optex catalog.
