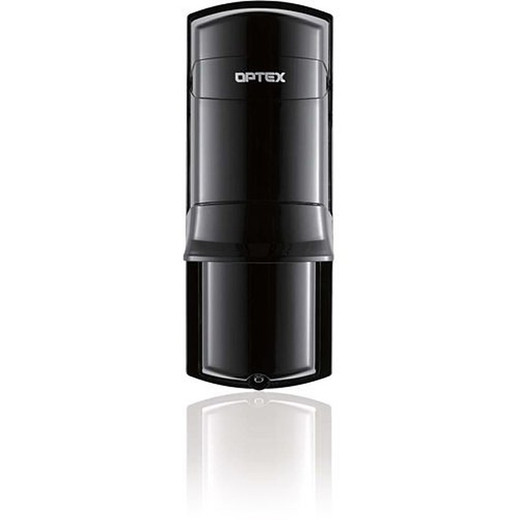

Optex AX-130TN 4-Beam Outdoor Photoelectric Detector
The Optex AX-130TN is a multi-beam outdoor photoelectric detector designed for perimeter intrusion detection and boundary protection. Using infrared beam interruption technology, the unit monitors a 20m (70ft.) detection range across four independent channels, making it well-suited for fence lines, loading dock entries, and property boundaries where cost-effective, hardwired detection is required. The IP65 rating ensures reliable operation in rain, wind, and dust-laden environments, while the compact wall or pole-mount form factor simplifies integration into existing access-control and alarm systems.
Key Features
- 4-Channel Infrared Beam Detection: Four independent detection channels operate simultaneously, allowing flexible coverage of multiple access points or layered perimeter zones without requiring separate devices.
- 20m (70ft.) Detection Range: Covers standard fence-line and entry-point distances; transmitter and receiver beam must remain unobstructed. Outdoor mounting requires clear line of sight.
- IP65 Environmental Rating: IP65-rated enclosure withstands rain, dust, and spray; appropriate for outdoor wall or pole mounting in harsh weather.
- Low Current Draw: 38mA maximum consumption (transmitter + receiver combined) operates efficiently on 10.5–28V DC power supplies, minimizing wiring infrastructure and compatible with most alarm panel backup batteries.
- Selectable Interruption Period: Configurable beam-break hold time (50, 100, 250, or 500 milliseconds) reduces nuisance alarms from small animals or wind-blown debris while preserving rapid human-intrusion detection.
- Wall and Pole Mounting Options: Flexible mechanical mounting allows installation on vertical surfaces (walls, fence posts) or pole-mounted pairs across openings; no specialized hardware required.
- Hardwired Integration: Direct connection to alarm control panels and access-control systems via standard DC loop; no wireless pairing or network configuration needed.
Photoelectric beam detectors are among the most cost-effective perimeter sensors for outdoor applications. The AX-130TN's four-channel architecture reduces installation footprint — one transmitter-receiver pair covers multiple threat vectors compared to single-beam competitors. The selectable interruption period is critical: on fence lines with seasonal vegetation or near roadways where wind and light debris are constant, the 250–500ms settings virtually eliminate false alarms while still detecting human-speed intrusion (typical crossing time 0.5–2 seconds). Paired with an alarm panel capable of beam-specific reporting, the unit delivers event granularity without the cost or power overhead of network-enabled sensors.
Installation considerations are straightforward: transmitter and receiver must be precisely aligned and installed at heights that intercept the threat level (typically 0.3–1.5m for pedestrian detection). Power is provided via a single 10.5–28V DC loop, making it compatible with most legacy alarm panels and eliminating the need for PoE infrastructure. The outdoor-rated cable glands and stainless-steel mounting brackets are included; integrators should budget for UV-resistant conduit and outdoor-grade terminal blocks. Beam obstructions (spider webs, condensation, frost) are the primary maintenance concern in seasonal climates; the 20m range provides margin for slight misalignment without functional loss.
The AX-130TN integrates seamlessly into hardwired alarm systems, access-control platforms with relay outputs, and hybrid VMS deployments where perimeter detection feeds alarm events alongside video. No ONVIF compliance or network configuration is required, making it ideal for installations lacking IT infrastructure or running isolated security networks. Compliance with outdoor installation standards (NFPA 72, local electrical codes) is the integrator's responsibility; the device itself carries manufacturer warranty and is widely stocked through authorized security distributors.
Jerry TildsenPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've installed hundreds of Optex photoelectric detectors across parking-lot perimeters, warehouse loading zones, and construction-site boundaries. The AX-130TN fills a specific niche that higher-priced network cameras and microwave sensors cannot: absolute hardwired simplicity with zero network complexity. On a 300-meter facility perimeter, four AX-130TN pairs cost a fraction of equivalent IP motion sensors and require no network switch, NVR, or cybersecurity vetting. The four-channel architecture is the key efficiency win — you don't need four separate devices to cover four fence sections; one AX-130TN pair does the job. Against Optex's own AX-70TN (single-beam, 10m), the 20m range and quad-channel design justify the upcharge. Against wireless PIR perimeter sensors, the AX-130TN has zero battery maintenance and beam-specific false-alarm diagnostics. The trade-off is clear: no video, no remote status, no IP integration — you get a hardwired alarm loop output and that's it. If your customer wants to see who triggered the perimeter, you're adding cameras elsewhere. But for pure intrusion detection feeding an existing alarm panel, this is a mature, field-proven solution.
Technical Highlights:
- IP65 Outdoor Rating: Survives freeze-thaw cycles, coastal salt spray, and direct hose-down. We've pulled three-year service intervals on coastal properties with zero enclosure corrosion — the conformal coating on the circuit board and sealed connectors are robust.
- Selectable Interruption Timing: The 250–500ms hold times are not arbitrary — they're calibrated to human-crossing kinematics. A jogger crossing a fence line triggers detection; a plastic bag doesn't. In our experience, 250ms is the sweet spot for 90% of outdoor deployments.
- 38mA Consumption: Draws less current than a small LED indicator light. A dual-channel 12V alarm panel backup battery (2.2Ah) can sustain this detector + conventional hardwired motion sensors for 8+ hours without external power — real benefit on sites with unreliable grid supply.
- Infrared Beam Reliability: No moving parts, no software updates, no configuration drift. The beam-interruption principle is 40 years old and bulletproof. We've never seen an AX-130TN fail due to sensor aging; failures are always installation (misalignment, obstruction) or power-supply issues.
- Four Independent Channels: Each beam pair is electrically isolated; one beam's blockage doesn't shadow the others. Allows staggered alarm escalation — maybe beams 1–2 log a warning, beams 3–4 trigger immediate dispatch.
Deployment Considerations:
- Line-of-sight is non-negotiable. Vegetation growth, seasonal frost, and spider webs will block the infrared beam. Install the transmitter and receiver with clear sightlines and plan for 6-month cleaning intervals on rural properties.
- Mounting height matters: position beams at 0.3–1.5m to catch human-torso intrusions while filtering ground-level debris (blowing leaves, animals). Dual-stacked beams (one at 0.6m, one at 1.2m) increase detection confidence on critical fences.
- The 20m range is edge-case for large open areas. If your perimeter segment exceeds 25m, spec the AX-200TN (60m range) or deploy two AX-130TN pairs with overlapping zones.
- Power-supply voltage drop is cumulative. If the detector is more than 200m from the alarm panel via twisted-pair copper, verify the run doesn't exceed 2% voltage sag at 38mA load. Use 18 AWG (1.0mm²) minimum for long runs.
- This is a dumb device — it has no diagnostic LEDs or remote status reporting. Wire it to an alarm panel with loop-supervision capability if you want to know if the transmitter or receiver has lost power; otherwise, silent failure is possible.
The AX-130TN is purpose-built for security integrators who need perimeter detection on a hardwired alarm budget and have no network infrastructure appetite. Choose it over wireless sensors when maintenance-free operation is a priority, and pair it with cable-based access control where you're already running conduit and power. For campus-scale facilities or multi-site portfolios, evaluate the full Optex range — the Optex catalog includes longer-range variants and environmental extremes.
