Panduit FW2ERQ1Q1NNF030 OM3 LC-LC 30ft Fiber Patch Cord

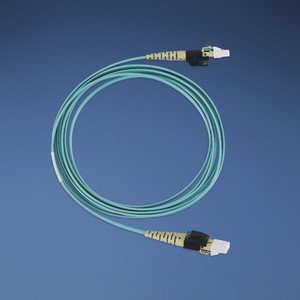

Panduit FW2ERQ1Q1NNF030 50/125μm OM3 LC-LC Duplex Fiber Patch Cord, 30 ft, Aqua

The Panduit FW2ERQ1Q1NNF030 is a laser-optimized 50/125μm OM3 multimode fiber patch cord engineered for 10 Gigabit Ethernet backbone installations in enterprise data centers, SAN/NAS storage networks, and high-speed telecommunications infrastructure. This 30-foot duplex jumper features precision-polished LC-to-LC connectors with aqua OFNR-rated jacketing, delivering the low modal dispersion and insertion loss required for 10GBASE-SR links up to 300 meters. Unlike commodity patch cords that drift out of spec under thermal cycling or mechanical stress, Panduit's factory-terminated assemblies maintain <0.35 dB insertion loss across the installed base, ensuring margin for future 25G/40G migrations without re-cabling horizontal runs.

Key Features

• Laser-optimized 50/125μm OM3 fiber supports 10GBASE-SR to 300m and 40/100GBASE-SR4 to 100m per IEEE 802.3ae
• LC duplex connectors with zirconia ceramic ferrules, factory-polished to <0.35 dB insertion loss and >-50 dB return loss
• 30-foot (9.14m) length optimizes rack-to-rack connections in pod architectures and cross-connects in telecom MDF/IDF installations
• Aqua OFNR (riser-rated) PVC jacket meets NEC Article 770 for vertical riser pathways without conduit
• 2.0mm zipcord construction balances flexibility for dense patch-panel dressing with crush resistance in cable-management troughs
• Pull-proof strain relief boots omitted (NNF = no boot) to maximize port density in SFP+ arrays and breakout panels—add field boots if slack management requires retention
• 100% factory-tested for insertion loss, return loss, and length; serialized test data available on request for audited infrastructure projects

Panduit's Enhanced 10 Gig (ERQ) fiber assemblies use laser-optimized 50/125μm glass with <2.0 ps/nm·km chromatic dispersion and 2000 MHz·km effective modal bandwidth at 850nm, meeting TIA-568.3-D OM3 specifications for VCSEL-based 10G transceivers. The LC connectors employ field-proven push-pull latching with zirconia ceramic ferrules aligned to <0.5μm concentricity, ensuring repeatable <0.35 dB mated loss even after 500+ insertion cycles. Each ferrule endface is factory-polished to IEC 61300-3-35 geometry limits (radius of curvature 10–25mm, apex offset <50μm) and inspected under 400× magnification to eliminate sub-micron debris that causes back-reflection in high-speed links. The 2.0mm zipcord jacket uses flame-retardant PVC compounded to UL 910 riser specifications, allowing installation in vertical shafts and plenums served by air-handling spaces without additional raceway—critical for retrofit projects where conduit pull is cost-prohibitive.

Deploy the FW2ERQ1Q1NNF030 in leaf-spine data center fabrics where 30-foot spans connect top-of-rack switches to end-of-row aggregation layers, or in enterprise telecom rooms bridging floor-serving IDF patch panels to backbone MDF switches. The aqua jacket provides instant visual identification of OM3 infrastructure per TIA-598-D color coding, preventing cross-connection errors when OM4 (erika violet) or OM5 (lime green) fibers coexist in the same pathway. Installers working under BICSI RCDD standards appreciate the bootless (NNF) termination, which reduces per-port depth by 18mm in ultra-high-density SFP+ blade arrays—Cisco Nexus 9K and Arista 7050 line cards routinely pack 48 duplex LC ports in 1RU, where every millimeter of connector overhang matters. For storage fabrics, the controlled insertion loss (<0.5 dB typical end-to-end) preserves optical power budget on 10GBASE-SR links using Broadcom 57810 or Intel X520 NICs, ensuring error-free operation even when daisy-chaining through intermediate cross-connects or stretching to the 300m OM3 distance limit. The 30-foot length also suits AV-over-IP deployments extending SDVoE or Dante signal from equipment racks to display walls or distributed audio zones, where fiber's immunity to ground-loop hum and RFI eliminates the 60Hz buzz that plagues long copper runs in electrically noisy environments.

This assembly is manufactured under ISO 9001:2015 quality systems with TIA-568.3-D, IEC 61754-20 (LC interface), and UL OFNR listing, meeting the documentation requirements for LEED v4.1 Materials & Resources credits and GSA procurement under contract GS-07F-0405Y. Panduit's factory-terminated assemblies carry a comprehensive warranty covering fiber, connectors, and jacket against material and workmanship defects—an assurance absent from field-terminated alternatives where polishing inconsistencies routinely push insertion loss beyond 0.5 dB and void transceiver warranties. For integrators bidding ARRA Buy American Act projects or state/municipal contracts requiring domestic content certification, consult your Panduit SE to verify country-of-origin compliance for this SKU. The FW2ERQ1Q1NNF030 is the engineered choice when your SLA demands five-nines uptime, your cabling standard prohibits field terminations, and your 10-year infrastructure roadmap must support tomorrow's 25G server migrations without forklift replacement of horizontal fiber.
