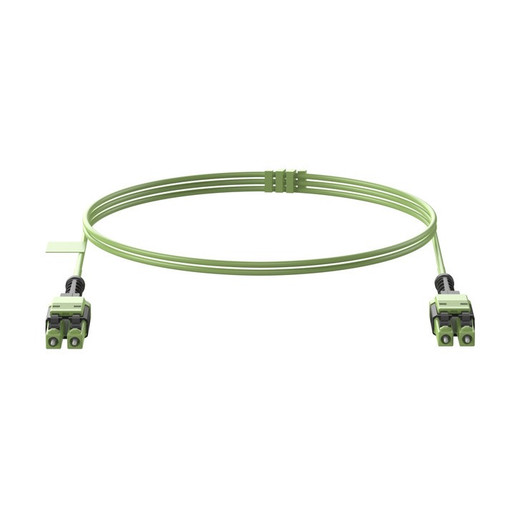

Panduit FW2RLU1U1NNM6.5 OM5 LC Uniboot LSZH Fiber Patch Cable

Overview

The Panduit FW2RLU1U1NNM6.5 is a QuickNet™ pre-terminated OM5 wideband multimode fiber patch cable — 2-fiber, LC duplex, LSZH jacketed — built for rapid deployment in structured cabling environments where installation speed and air quality compliance matter. OM5 (50/125µm) wideband multimode supports SWDM4 and parallel optics transmission strategies, giving your fiber optic cabling infrastructure forward headroom for 40/100G and beyond without a forklift upgrade. The LSZH jacket limits toxic smoke emission during a fire event — mandatory in plenum spaces, data halls with poor egress, and any jurisdiction enforcing IEC 60332 or equivalent. Compliant with TIA-568.3-D, ISO/IEC 11801, and ANSI/TIA-942-B, so it drops cleanly into designs validated against those standards without triggering compliance re-work.

Compatibility

LC duplex connectors mate with any LC-equipped active equipment or patch panel port: Panduit QuickNet™ fiber cassettes and modules, standard LC-SFP transceivers, and LC-port patch panels from any manufacturer. The uniboot form factor routes both fibers under a single jacket and hood, halving cable diameter relative to a standard duplex cordset — a real advantage in densely populated rack and cabinet environments where airflow lanes and bend-radius management are constrained. OM5 glass is backward compatible with OM4 and OM3 equipment, so existing OM3/OM4 switch ports and transceivers will accept this cable without penalty, though wavelength-division benefits are only realized with OM5-aware optics. Intended deployment environments per Panduit specification: data centers, telecommunications rooms, entrance facilities, and equipment distribution areas requiring pre-terminated structured cabling infrastructure for rapid deployment.

Installation Notes

The uniboot design requires polarity awareness at installation — confirm A-to-B polarity convention matches your patch panel and switch port assignments before terminating runs. PC (physical contact) polish on both connectors delivers low insertion loss suitable for standard multimode links; verify your loss budget if cascading multiple patch points. LSZH jacket compounds run slightly stiffer than PVC at low temperatures — observe minimum bend radius during cable dressing in cold data halls. Standards compliance: TIA-568.3-D, ISO/IEC 11801, ANSI/TIA-942-B.
