Panduit OM4 2F 3MM PC LSZH SC DUP / SC - FZ23LSNSNSNM005

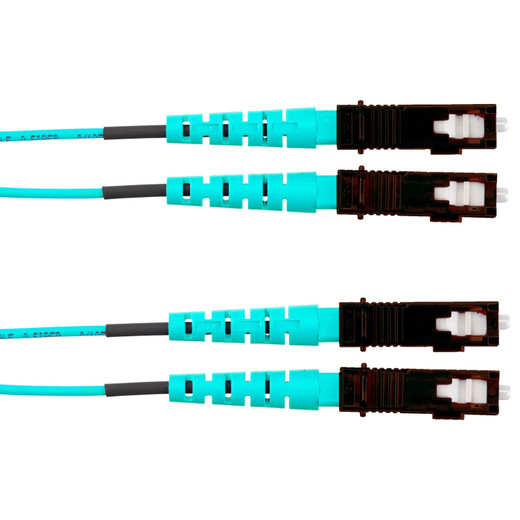

Panduit FZ23LSNSNSNM005 OM4 2F 3MM PC LSZH SC DUP / SC

Overview

The Panduit FZ23LSNSNSNM005 is a duplex fiber optic patch cable designed for high-speed data transmission in enterprise networks and data centers. It features OM4 multimode fiber with LSZH (Low Smoke Zero Halogen) jacketing, making it suitable for installations where plenum-rated cables are required for fire safety. The cable terminates with SC duplex connectors on both ends, providing a secure and reliable connection for network equipment. This 3mm jacketed cable offers a balance of flexibility and durability for structured cabling deployments.

Compatibility

This Panduit OM4 fiber patch cable is compatible with any network equipment featuring SC duplex ports. It is designed for use with standard fiber optic transceivers and network interface cards (NICs) that support OM4 multimode fiber specifications, including switches, routers, and servers from major manufacturers. Its LSZH jacket ensures compliance with building codes requiring low-smoke and zero-halogen materials in air-handling spaces.

Installation Notes

When installing the FZ23LSNSNSNM005, maintain a minimum bend radius of 30mm for the 3mm LSZH jacket to prevent signal degradation or fiber damage. Ensure connectors are clean before mating to avoid performance issues. The SC duplex connectors utilize a push-pull latching mechanism for secure engagement.

What's in the Box

• 1x Panduit FZ23LSNSNSNM005 OM4 2F 3MM PC LSZH SC DUP / SC Patch Cable
