Panduit FZ23RSNSNSNF015 OM4 2F 3MM PC Ofnr SC Dup/sc DupK1moq10

Panduit FZ23RSNSNSNF015 OM4 2F 3MM PC Ofnr SC Dup/sc DupK1moq10

Overview

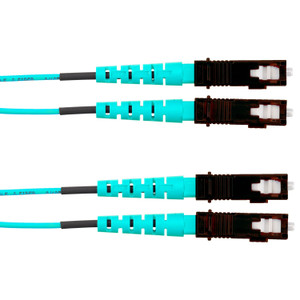

The Panduit FZ23RSNSNSNF015 is a QuickNet™ OM4 multimode fiber optic patch cord designed for rapid deployment in high-density data center and telecommunications environments. It terminates with SC Duplex connectors on both ends, providing a reliable link for 10/40/100 GbE applications where speed and ease of installation are critical. The 3mm jacketed cable offers durability for structured cabling systems.

Compatibility

This cable assembly is designed to connect network equipment with SC Duplex ports. It is compatible with any active equipment, patch panels, or fiber optic enclosures that utilize SC Duplex connectors. The OM4 fiber type supports high-bandwidth applications up to 100 meters for 100GbE and beyond, aligning with TIA-568.3-D, ISO/IEC 11801, and ANSI/TIA-942-B standards.

Installation Notes

The Riser (OFNR) flammability rating indicates this cable is suitable for use in vertical pathways within non-plenum spaces. Ensure connectors are clean before mating to prevent signal degradation and connector damage. The 3mm jacket provides a balance of flexibility and protection for installation in racks and cable management systems.
