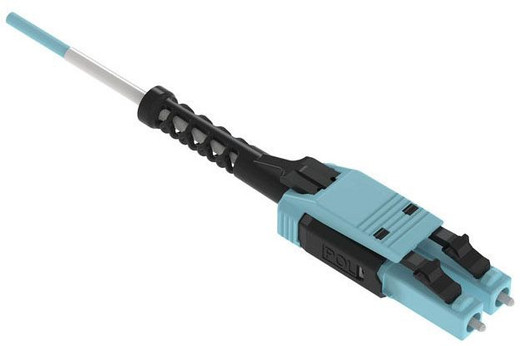

Panduit FZ2RLU1U1NNM0.5 OM4 LC Uniboot Fiber Cable

Panduit FZ2RLU1U1NNM0.5 OM4 LC Uniboot Fiber Optic Patch Cable

The Panduit FZ2RLU1U1NNM0.5 delivers pre-terminated OM4 multimode fiber connectivity in a compact 0.5-meter uniboot configuration, engineered for high-density datacenter and telecommunications environments where space, deployment speed, and 40/100 Gigabit Ethernet performance are critical. QuickNet™ factory termination eliminates field splicing variability, while the single-boot LC duplex design reduces pathway congestion by 50% compared to traditional dual-boot assemblies—letting integrators maximize rack density and simplify moves/adds/changes without sacrificing optical performance or mechanical durability.

Key Features

• OM4 50/125µm multimode fiber supports 40GBASE-SR4 to 150m and 100GBASE-SR10 to 100m per IEEE 802.3ba, future-proofing against bandwidth upgrades
• Uniboot LC duplex connector consolidates transmit/receive into a single compact housing, cutting cable-management footprint in half
• Low Smoke Zero Halogen (LSZH) jacket meets IEC 60332-1 flammability and IEC 61034-2 smoke density standards for enclosed pathways and international deployments
• Factory-terminated and 100% optically tested to IL ≤0.35 dB, ensuring day-one link budget compliance without field rework
• Polished Physical Contact (PC) ferrules deliver <-50 dB return loss, minimizing reflection-induced bit errors in bidirectional transceivers
• TIA-568.3-D and ISO/IEC 11801 compliant structured cabling, qualified for ANSI/TIA-942-B Tier III/IV data center infrastructures

Pre-terminated fiber assemblies solve the three failure modes that plague field terminations: inconsistent cleave geometry, contamination during epoxy cure, and ferrule end-face damage from improper polishing. Panduit's QuickNet™ manufacturing process automates cleave-and-polish to sub-micron tolerances in a controlled cleanroom environment, then validates every connector with interferometric inspection before the cable leaves the factory. Installers get guaranteed insertion loss and return loss performance without investing in fusion splicers, microscopes, or technician certification—turning a two-hour field termination into a two-minute plug-and-test deployment. In retrofit scenarios where existing pathways are congested, the 0.5-meter jumper length bridges top-of-rack switches to patch panels or connects adjacent enclosures without excess cable service loops that trap heat and block airflow.

OM4's laser-optimized 50µm core supports 40 and 100 Gigabit Ethernet over the distances required for intra-rack, rack-to-rack, and row-to-row connectivity in contemporary datacenters. The 850nm VCSEL transceivers used in 40GBASE-SR4 and 100GBASE-SR10 applications demand tight modal bandwidth specifications—OM4 delivers >4700 MHz·km at 850nm, nearly double OM3's minimum—to maintain inter-symbol timing across parallel fiber lanes. When combined with MPO trunk cables and LC uniboot jumpers at the equipment interface, this infrastructure scales from 10G today to 400G tomorrow without re-cabling horizontal pathways. The uniboot LC form factor preserves the established duplex LC footprint that dominates enterprise switching and storage, avoiding the adapter compatibility issues and polarity complexity of newer connector types while still capturing the density benefits of consolidated housings.

Low Smoke Zero Halogen jacketing addresses the fire-safety and environmental regulations that govern enclosed telecommunications spaces, vertical risers, and international markets where PVC is restricted. LSZH compounds produce 60-80% less smoke opacity than PVC when burning, improving egress visibility during fire events, and release no hydrochloric acid or dioxins—protecting both occupants and sensitive electronics from corrosive combustion byproducts. The 2mm round cable diameter strikes the balance between flexibility for tight-radius routing (minimum bend radius 10× diameter under load) and mechanical protection for the 900µm buffered fibers inside. Pull-tab uniboot latches enable tool-free polarity reversal in the field: a 180° rotation of the boot swaps TX/RX without re-termination, simplifying polarity correction during troubleshooting or reconfiguration.

This assembly ships as part of Panduit's QuickNet™ pre-terminated fiber system, a unified platform spanning LC/SC/MPO connectors, OM3/OM4/OS2 fiber types, and lengths from 0.5m to 300m. TIA-568.3-D and ISO/IEC 11801 compliance ensures interoperability with third-party transceivers and structured cabling, while ANSI/TIA-942-B qualification confirms suitability for Tier III and Tier IV datacenters where link performance, documentation, and warranty traceability are contractually mandated. Every QuickNet assembly includes serialized test data traceable to factory QC records, satisfying the as-built documentation requirements that underpin datacenter infrastructure management (DCIM) systems and simplifying post-installation acceptance testing.
