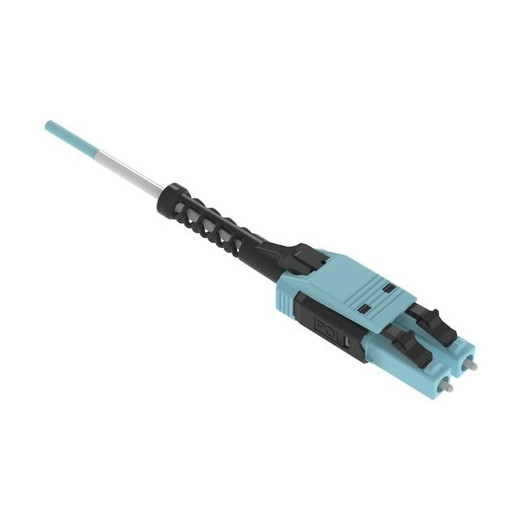

Panduit FZ2RLU1ZNNNM001 OM4 LC Uniboot Fiber Cable 1m

Panduit FZ2RLU1ZNNNM001 QuickNet OM4 LC Uniboot Fiber Patch Cable

The Panduit FZ2RLU1ZNNNM001 is a factory-terminated OM4 multimode fiber patch cable engineered for high-density data center and telecommunications environments where space, speed, and safety converge. This 1-meter (3.3 ft) duplex cable features LC uniboot connectors with push-pull tabs, LSZH jacketing for plenum compliance, and aqua-colored 2mm cable construction. QuickNet pre-termination delivers factory-grade insertion loss and return loss performance out of the box, eliminating field termination labor and the risk of contamination during installation. For integrators deploying 10GBASE-SR, 40GBASE-SR4, or 100GBASE-SR10 links in confined rack spaces, this cable offers the space efficiency of uniboot design with the performance headroom of OM4 fiber—supporting up to 550 meters at 10 Gbps and 150 meters at 40/100 Gbps per TIA standards.

Key Features

• OM4 Multimode Fiber (50/125µm): Supports 10/40/100 Gigabit Ethernet applications with extended reach compared to OM3, enabling 550m at 10G and 150m at 40/100G over laser-optimized multimode fiber.
• LC Uniboot Connector Design: Single-body duplex connector with integrated polarity-reversal mechanism reduces cable pathway congestion by 50% vs. dual LC cables, critical in high-density patching scenarios.
• LSZH (Low Smoke Zero Halogen) Jacket: Meets IEC 60332-1 and 60754 flammability and toxicity standards, required for plenum-rated installations and international data center builds where halogenated materials are restricted.
• Factory Pre-Terminated QuickNet Construction: Each connector is factory-polished, tested, and serialized for consistent insertion loss <0.35 dB and return loss >-20 dB (PC polish), eliminating field termination errors and accelerating deployment schedules.
• 1-Meter Patch Length: Optimized for intra-rack connections between patch panels and switch uplinks, or server NIC to top-of-rack switch runs in structured cabling environments.
• TIA-568.3-D and ISO/IEC 11801 Compliant: Certified for use in commercial building telecommunications infrastructure and ANSI/TIA-942-B-compliant data center designs.
• Aqua 2mm Round Cable: Color-coded per industry convention (aqua = OM4) for instant visual identification during moves, adds, and changes; 2mm diameter cable body fits MTP/LC uniboot cable managers and tight-radius pathways.
• Push-Pull Tab Design: Tool-free insertion and extraction via integrated latch tabs—no separate dust cap removal required—speeding MACs and reducing connector damage from improper handling.

OM4 laser-optimized 50/125µm multimode fiber represents the current backbone of enterprise data center connectivity, balancing the cost efficiency of multimode optics with the bandwidth demands of virtualized server fabrics and storage area networks. Unlike OM3, which supports 300m at 10 Gbps, OM4 extends that reach to 550 meters—enough to span most horizontal and backbone runs within a single building without stepping up to singlemode infrastructure. At 40 and 100 Gbps, OM4's 150-meter reach covers the vast majority of data center row-to-core and leaf-spine topologies, making it the de facto standard for Cisco, Arista, Juniper, and Dell switch uplinks using QSFP+ and QSFP28 SR optics. The LC uniboot form factor consolidates the traditional duplex LC footprint into a single connector body roughly the size of one LC simplex connector. This space savings becomes critical in 1U switch faceplates where 48-port density is the norm; uniboot cables allow two duplex links to occupy the space previously consumed by one traditional duplex LC cable pair. Panduit's uniboot design incorporates a field-reversible polarity mechanism—a sliding key that swaps the A/B fiber positions without re-termination—enabling Method B, Method C, or universal polarity schemes per TIA-568 Annex recommendations. The LSZH jacket formulation replaces PVC with halogen-free polymers that, when exposed to fire, produce significantly less smoke opacity and zero hydrochloric acid or other corrosive gases. This is not merely a safety upgrade—it's a compliance mandate in most European and Asia-Pacific markets, and increasingly specified in U.S. federal and financial-sector data centers under NFPA and building-code plenum ratings.

Typical deployment scenarios include patch panel to switch connections in telecommunications rooms (TRs) where pre-terminated trunk cables land on MTP-to-LC cassettes or panels, and the FZ2RLU1ZNNNM001 completes the final equipment connection. In two-post relay racks or vertical cable managers, the 1-meter length provides enough slack for proper bend-radius management (minimum 10x cable diameter per TIA-568.3-D, or 20mm for this 2mm cable) while avoiding the cable-spaghetti look of over-length patch cords. The cable is also commonly used in entrance facility (EF) demarc extensions, connecting carrier handoff points to customer-owned MDA or HDA patch fields. Because each cable is serialized and ships with test data traceable to Panduit's factory quality program, it satisfies the documentation requirements of TIA-942-B Tier III and Tier IV data centers, where every interconnect must have verified performance metrics on file. The 1-meter length also suits storage environments: Fibre Channel 16G and 32G SANs using OM4 infrastructure rely on short, low-loss patch cords to maintain link budgets within the tight tolerances of SFP+ and SFP28 transceivers. For integrators managing MAC cycles in live production environments, the push-pull uniboot latch eliminates the fumbling and accidental disconnects common with traditional squeeze-tab LC connectors, and the single-body design means one less connector to clean and inspect during troubleshooting. Field testing with an OLTS (optical loss test set) or OTDR will show insertion loss well below the 0.75 dB TIA-568.3-D channel maximum, typically landing in the 0.15–0.30 dB range for a single mated pair, leaving ample margin for multi-span links and future connector re-matings as the infrastructure ages.

The FZ2RLU1ZNNNM001 is backed by Panduit's standard manufacturer warranty and is tested to meet or exceed the 500-mating-cycle durability specification for LC connectors per IEC 61754-20. For mission-critical installations requiring documentation of performance, each cable can be individually tested and certified using Panduit's OptiCam or third-party OLTS systems, with results stored in DCIM platforms or Panduit's PanView iQ infrastructure management software. This level of traceability and performance assurance is what separates contractor-grade commodity fiber jumpers from the factory-terminated assemblies specified by Fortune 500 IT groups, hyperscale cloud operators, and Tier III/IV colocation providers who treat the physical layer as a capital asset rather than a consumable.
