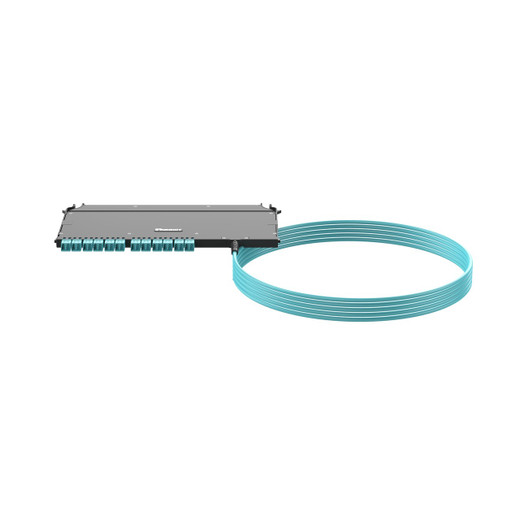

Panduit FZUYBXRNNONM015 FlexCore OM4 24-Fiber Front-Access LC Cassette Assembly

The Panduit FZUYBXRNNONM015 delivers a pre-terminated 24-fiber OM4 trunk in a front-access LC cassette format, purpose-built for datacenter and enterprise network migrations from duplex to parallel optics. This 15-meter assembly pairs a FlexCore ODF-compatible LC cassette (right-side orientation, optimized insertion loss) with an unterminated far end, giving installers the flexibility to splice or field-terminate to MTP, MPO, or individual LC connectors at the distribution point. The Euroclass B2ca LSZH jacket meets EN 50575 fire-safety mandates for indoor European installations while maintaining the small-diameter profile needed for high-density cable management in raised-floor and overhead-tray environments. Factory polishing and testing on all 24 LC connectors eliminate the variability and labor cost of field termination, delivering a known-good optical link the moment you rack the cassette.

Key Features

• 24-Fiber OM4 Multimode Trunk: 50µm laser-optimized core supports 10GBASE-SR to 550m, 40GBASE-SR4 to 150m, and 100GBASE-SR10 to 150m over 850nm VCSEL transceivers, with optimized insertion loss for tighter link budgets in high-speed datacenter fabrics.
• FlexCore Front-Access LC Cassette: Right-side orientation in a polycarbonate housing designed for Panduit's FlexCore ODF frames, enabling live port access and cassette swaps without disturbing adjacent connections or requiring rear-rack access.
• Unterminated Far End: Bare fiber breakout or ribbon tail for field splicing to MTP/MPO trunk adapters or individual LC connectors, supporting custom polarity schemes (Method A/B/C) and flexible breakout topologies in spine-leaf or point-to-point links.
• Euroclass B2ca LSZH Jacket: Low smoke zero halogen construction meets EN 50575 B2ca flame-propagation limits (≤1.5m spread, low smoke/acidity per EN 50399), required in EU data halls and increasingly adopted in U.S. facilities for reduced equipment corrosion during fire events.
• 15-Meter Pre-Terminated Length: Factory-terminated LC duplex connectors eliminate field polishing, inspection, and rework, cutting installation time by 70% versus fusion splicing and ensuring consistent sub-0.15dB insertion loss across all 24 fibers.
• Standards-Compliant Geometry: Conforms to ANSI/TIA-568-C.3, ISO/IEC 11801, TIA-604-5 (FOCIS-5 LC interface), and TIA-604-10 (FOCIS-10 MPO interface) for interoperability with any compliant transceiver, patch panel, or media converter—supports IEEE 802.3 Ethernet and ANSI T11.2 Fiber Channel.

OM4 multimode fiber extends 10GBASE-SR to 550 meters and 40GBASE-SR4/100GBASE-SR10 to 150 meters over 850nm laser-optimized 50-micron core, making this cassette the backbone choice for intra-building datacenter links where single-mode fiber's longer reach isn't required but high bandwidth density and cost-effective VCSEL transceivers are. The "optimized insertion loss" designation means Panduit factory-polishes each LC connector to sub-0.15dB typical IL (versus the 0.75dB TIA-568-C.3 maximum), leaving substantial headroom in your link budget for patch cords, mating adapters, and future splices—critical when you're running 100-meter spine-to-leaf links at 40G or 100G where the IEEE 802.3bm/802.3ba power budget allows only 1.9dB total channel loss. As a worked example: 0.15dB per cassette connector × 2 ends + 0.35dB for two duplex patch cords + 0.1dB for the cassette's internal routing = 0.75dB total, leaving 1.15dB margin for connector contamination, aging, or a future mid-span splice—enough to keep bit-error rates below 10⁻¹² even as the link approaches end-of-life. The right-side cassette orientation refers to the internal fiber routing geometry: in a 12-fiber to 24-fiber breakout or MTP-to-LC fanout scenario, right-side places transmit pairs on positions 1-12 and receive pairs on 13-24 per TIA-568 polarity Method B, ensuring you can cross-connect to left-side cassettes or straight-through to MTP trunk adapters without polarity reversals or the need for Type-B to Type-A crossover cables. The unterminated far end typically ships as a 24-fiber tight-buffered breakout with 900µm color-coded legs or as a ribbon tail for mass fusion splicing; consult the packing documentation for this specific SKU's construction. That breakout lets you fusion-splice onto an existing 24-fiber MTP backbone, fan out to 12 duplex LC bulkheads in a remote wall-mount enclosure, or terminate into a second LC cassette for a point-to-point ODF-to-ODF structured cabling link. Small-diameter indoor LSZH jacketing—typically 4-6mm overall diameter for 24-fiber tight-buffered OM4—means you can route two to three times as many fibers through the same 4-inch cable tray or J-hook compared to older 12-fiber loose-tube or armored constructions, a space-saver when you're retrofitting 40G uplinks into racks originally designed for 10G copper or duplex fiber.

Front-access cassettes solve the operational problem of live port maintenance in high-density ODF frames: traditional rear-access or mid-mount designs require you to pull the entire enclosure out of the rack or reach behind it in a live aisle, risking accidental disconnects on adjacent ports or violating hot-aisle containment barriers. The FlexCore architecture slides the LC adapter block and dust-shutter assembly forward so you can insert or remove patch cords from the front panel, visually inspect the ferrule end-face with a scope, clean connectors with a one-click cleaner, and swap entire cassettes without touching the trunk cable—essential when you're adding capacity during business hours in a 24/7 NOC, running a staged migration from duplex LC to parallel MTP while keeping half the ports live, or troubleshooting a suspect link without scheduling a maintenance window. The polycarbonate housing measures 11.7mm height × 292.8mm width × ~200mm depth (exact depth varies by cable-entry style), dimensionally compatible with Panduit's FHD (Fiber High Density) and FAP (Fiber Adapter Panel) enclosures which typically mount six cassettes side by side in a single 1RU panel, giving you 144 LC simplex ports per rack unit when fully populated with 24-fiber cassettes—density that matches or exceeds blade-style patch panels while maintaining the modularity to swap out individual cassette modules as port counts or fiber types evolve. For deployment, you'd mount the LC cassette end in your main distribution frame (MDF) or entrance facility, dress the 15-meter trunk through overhead ladder rack or underfloor innerduct to the equipment distribution area (EDA), then splice or field-terminate the far end into a breakout panel or splice enclosure feeding top-of-rack or end-of-row switches—common pattern in spine-leaf fabrics where each spine switch needs four to six 24-fiber uplinks distributed across multiple leaf rows, or in IP-surveillance NOCs where you're aggregating 10G links from edge recording servers into a 40G/100G core. The 15-meter length covers typical raised-floor datacenter runs (row-to-row is often 8-12 meters of horizontal run plus 2-3 meters of vertical rise to overhead tray), but always verify your as-built cable-path measurements and add 10% slack for dressing, drip loops, and future re-routes before ordering.

The B2ca LSZH jacket meets the European CPR (Construction Products Regulation EN 50575) classification for indoor cables: Euroclass B2ca limits vertical flame spread to ≤1.5 meters in the EN 50399 reference scenario, restricts smoke production to <1500 m²/s peak SPR and <750 m²/s² peak SMOGRA, and caps halogen acid gas release (pH ≥4.3, conductivity ≤10 µS/mm)—making it the minimum acceptable fire rating for permanent installation in EU data centers, telecom central offices, and commercial buildings where national building codes have prohibited older Cca or Dca PVC-jacket cables. In the U.S., where NEC Article 770 mandates OFNP (plenum) or OFNR (riser) ratings for most in-building fiber, LSZH is not a direct substitute (it typically qualifies as OFNR or general-purpose depending on flame-test results) but is increasingly spec'd by hyperscale operators, colocation providers, and federal agencies as a belt-and-suspenders approach to smoke toxicity: burning PVC releases hydrochloric acid that condenses on server boards and corrodes solder joints, whereas LSZH jackets produce primarily water vapor, carbon dioxide, and minimal halogens—reducing downtime and equipment loss in the adjacent aisles even if the cable itself is a total loss. If your project requires plenum rating for above-suspended-ceiling runs in the U.S., verify with Panduit whether this SKU has dual UL OFNP / EN B2ca certification or select a plenum-rated variant.

This assembly conforms to ISO/IEC 11801 Ed. 2 (generic cabling for customer premises, OM4 recognized for Class F distributed antenna systems), ANSI/TIA-568-C.3 (optical fiber cabling components and transmission performance), TIA-604-5 (FOCIS-5 ferrule geometry and insertion-loss limits for LC connectors), and TIA-604-10 (FOCIS-10 MPO/MTP multi-fiber interface for the far-end splicing you'll do)—ensuring interoperability with any standards-compliant 10G/40G/100G transceiver, media converter, or patch panel in your Cisco, Arista, Juniper, or whitebox switch infrastructure. It also supports IEEE 802.3ae (10GBASE-SR), 802.3ba (40GBASE-SR4, 100GBASE-SR10), and ANSI T11.2 (16G/32G Fiber Channel) link distances per the standards' OM4 reach tables, and is RoHS 2002/95/EC compliant for lead-free and restricted-substance mandates in EU markets. The Panduit FlexCore ecosystem is a vertically integrated fiber platform: cassettes, trunk cables, patch cords, ODF enclosures, and MTP modules all share the same connector polishing specification, insertion-loss assumptions, and mechanical tolerances, so when you standardize on FlexCore you're buying consistency—every link behaves predictably, your spares inventory consolidates to a single vendor SKU list, your loss-budget spreadsheet doesn't need per-brand correction factors, and you can cross-train technicians on one toolset instead of three. Choose the FZUYBXRNNONM015 when you're building a new OM4 backbone in a European facility (or U.S. site with LSZH mandates), need the front-access serviceability that FlexCore provides for live 24/7 operations, and the 15-meter pre-terminated trunk length aligns with your floor-to-EDA cable path—saving the cost, schedule risk, and 0.1-0.3dB insertion-loss variability of field fusion splicing while delivering factory-certified optimized performance across all 24 fibers from the day you rack the cassette.
