Panduit FZUYBXLNNONM015 FlexCore OM4 24-Fiber Front-Access LC Cassette

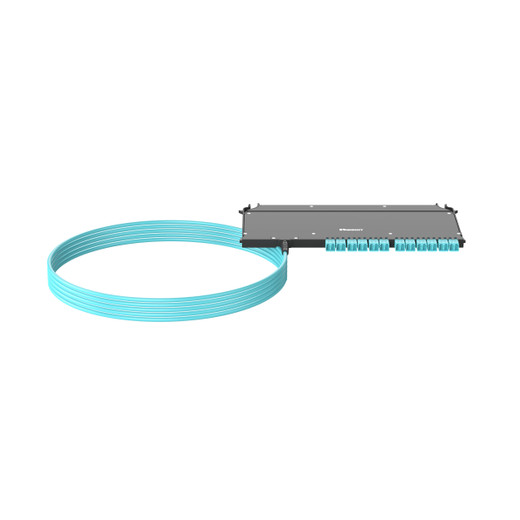

The Panduit FZUYBXLNNONM015 is a factory-terminated FlexCore™ front-access fiber optic cassette delivering 24 fibers of OM4 multimode connectivity in a compact, rack-mountable form factor. Engineered for high-density data center and telecom switching environments, this 15-meter tethered assembly features LC duplex connectors on the cassette side and unterminated fibers for field splicing or connector termination on the distribution side. The left-hand orientation and B2ca/LSZH flame rating meet stringent European installation codes, while optimized insertion loss guarantees headroom for 40GBASE-SR4, 100GBASE-SR10, and emerging 400G applications over OM4 infrastructure.

Key Features

• OM4 multimode fiber (50/125 µm) supports 40G/100G Ethernet and 32G Fiber Channel over extended distances
• 24-fiber cassette capacity in 11.53" wide × 0.46" tall form factor maximizes rack-unit density
• FlexCore™ front-access design eliminates rear-panel routing and accelerates moves/adds/changes in live racks
• Factory-terminated LC duplex connectors deliver optimized insertion loss and eliminate field polishing variability
• 15-meter tethered length bridges equipment racks to wall-mounted ODF or inter-row patching scenarios
• Euroclass B2ca flame rating + LSZH jacket meets EN 50575 CPR requirements for European data centers and public-access facilities
• Left-hand cassette orientation supports mirrored rack layouts and cable-management planning
• Unterminated distribution end allows fusion splicing to backbone or field connector installation per site standards
• Polycarbonate housing withstands rack vibration and thermal cycling in HVAC-controlled environments
• RoHS 2002/95/EC compliant for EU green procurement mandates

Data center operators and telecom switch-room designers face relentless pressure to increase port density while maintaining sub-rack access for troubleshooting and patching. Traditional rear-access cassettes force technicians to pull equipment forward or work blind behind live gear—risky in 24×7 production environments. The FZUYBXLNNONM015 solves this with Panduit's FlexCore front-access architecture: all 24 LC duplex ports face forward, accessible without disturbing adjacent equipment or yanking servers out of the rack. The 15-meter tethered trunk routes down the front of the rack, under raised floor, or through overhead cable tray to a remote ODF or splice enclosure, where unterminated fibers terminate via fusion splicing to backbone plant or field-installable connectors. This split architecture keeps active patching in the hot aisle and permanent infrastructure in the rear, reducing Mean Time To Repair and eliminating the "server pull" step that costs hours during outages.

OM4 multimode fiber is the workhorse for campus and intra-building 40G/100G networks. At 850 nm wavelength, OM4 delivers 400-meter reach for 40GBASE-SR4 and 150-meter reach for 100GBASE-SR10—sufficient for 95% of horizontal and vertical building risers. The FZUYBXLNNONM015's factory-terminated LC connectors ship with optimized insertion loss (typically ≤0.35 dB per mated pair), preserving optical budget for future transceiver upgrades or longer patch cords. Each of the 24 fibers is individually color-coded per TIA-598-C, simplifying pair identification during breakout and reducing mis-patch errors that plague hand-labeled trunk assemblies. The cassette's polycarbonate housing snaps into FlexCore ODF chassis (sold separately), which mount in standard 19" racks and accept up to 12 cassettes per 1U panel—enabling 288-fiber density in a single rack unit. For hyperscale or co-location operators provisioning multi-tenant racks, this density translates to fewer patch panels, reduced U-count consumption, and lower recurring space lease costs.

European Union Construction Products Regulation (CPR) EN 50575 mandates flame-rated cables in public buildings, transport hubs, and mixed-use facilities. The FZUYBXLNNONM015's Euroclass B2ca rating certifies limited flame spread, low smoke opacity, and minimal halogen gas emission—critical for evacuation safety in occupied structures. The LSZH (Low Smoke Zero Halogen) jacket produces non-corrosive smoke during combustion, protecting sensitive electronics in adjacent equipment rooms and reducing post-fire cleanup liability. North American operators often specify LSZH for submarine cable landing stations, hospital IT closets, and airport network rooms where fire codes prohibit PVC-jacketed assemblies. The black jacket color provides visual differentiation from OM3 (aqua) or single-mode (yellow) infrastructure, reducing the risk of accidental cross-patching between fiber types during maintenance windows.

Field deployment begins with mounting the FlexCore ODF chassis in the equipment rack at the desired U-position, then snapping the FZUYBXLNNONM015 cassette into an open slot. The 15-meter tethered trunk routes to the remote termination point—typically a wall-mounted splice enclosure for backbone fusion splicing or a field-installable connector panel for breakout to individual LC patch cords. Left-hand orientation means the cassette's LC ports populate from right to left when viewed from the front, mirroring right-hand cassettes in adjacent racks to create symmetric cable paths. This matters in paired-row layouts where east-west traffic crosses between racks: matching orientations prevent cable crossovers that obscure port labels and complicate troubleshooting. The unterminated end accepts fusion splicing to OS2 single-mode backbone (for future migration), mechanical splicing to OM4 trunk extensions, or field connector installation using Panduit's Opti-Crimp LC termination system. Installers running mix-and-match deployments can order additional FZUYBXLNNONM015 units in bulk, then terminate distribution ends per site-specific requirements without waiting for custom build orders or factory lead times.

Compliance with ISO/IEC 11801 and ANSI/TIA-568-C.3 ensures interoperability with structured cabling ecosystems worldwide. TIA-604-5 (FOCIS-5) and TIA-604-10 (FOCIS-10) define the LC connector's physical dimensions and optical performance, guaranteeing mating compatibility with transceivers from Cisco, Juniper, Arista, and other IEEE 802.3-compliant switch vendors. The cassette's design supports ANSI T11.2 Fiber Channel standards, making it equally suitable for storage area networks (SANs) running 16G/32G FC over OM4. For enterprise IT teams managing converged LAN/SAN fabrics, a single cassette SKU simplifies procurement, reduces spare-parts inventory, and accelerates vendor qualification—critical when onboarding new data center sites or refreshing aging 1G/10G copper infrastructure with fiber-to-the-rack architectures.

The FZUYBXLNNONM015 ships as a single unit (package quantity: 1) with no minimum carton quantity, allowing project managers to order exact quantities for phased buildouts or pilot deployments. The 11.53" width spans the full width of a FlexCore 1U panel slot, while the 0.46" height keeps the cassette profile low enough for dense stacking without obstructing airflow in perforated rack doors. Total installed cost includes the cassette, the FlexCore chassis (required, sold separately), and field labor for trunk routing and unterminated-end termination—typically 2-3 hours per cassette for fusion splicing or 1-2 hours for mechanical connectors. Return on investment accrues through faster MACs (moves, adds, changes): front-access patching cuts service-call time by 40-60% versus rear-access designs, reducing truck rolls and minimizing customer downtime in co-location or managed-services contracts where SLA credits penalize outages. The optimized insertion loss and factory quality control also eliminate the "bad connector" failures that plague hand-terminated assemblies, dropping trouble-ticket volume and freeing senior fiber techs for revenue-generating project work instead of remedial rework.

Panduit's FlexCore OM4 24-fiber cassette is the strategic choice for operators who demand Tier III/IV data center reliability without sacrificing rack accessibility or installation velocity. The FZUYBXLNNONM015's left-hand orientation, B2ca/LSZH European compliance, and 15-meter tethered length address the specific challenges of cross-aisle patching, public-safety fire codes, and scalable high-density designs—delivering a future-proof fiber backbone that supports today's 40G edge and tomorrow's 400G spine without forklift upgrades or re-cabling disruption.
