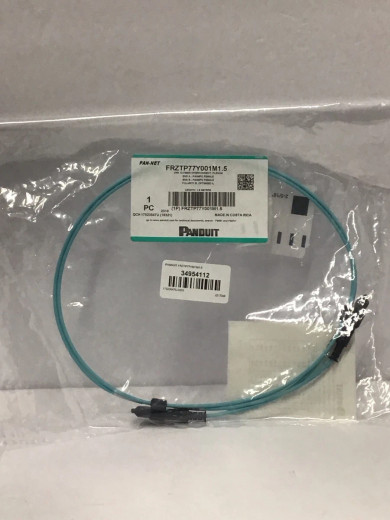

Panduit FRZTP77Y001M1.5 12-Fiber OM4 Plenum Trunk Cable
The Panduit FRZTP77Y001M1.5 is a factory-terminated 12-fiber OM4 multimode trunk cable designed for high-speed data center and telecommunications applications. This 1.5-meter plenum-rated assembly delivers plug-and-play installation for 40GBASE-SR4 and 100GBASE-SR4 networks, eliminating field termination labor and reducing deployment time in mission-critical environments. Built to TIA-568.3-D and ISO/IEC 11801 standards, this Opti-Core trunk supports duplex breakout architectures and structured cabling systems where speed-to-deployment and reliability are non-negotiable.
Key Features
- OM4 50/125µm multimode fiber supports 40G/100G Ethernet up to 150 meters
- 12-fiber MTP/MPO configuration enables efficient breakout to six duplex LC connections
- Plenum-rated (OFNP) jacket meets NEC Article 770 for air-handling space installations
- Factory-terminated connectors with insertion loss under 0.35 dB guarantee first-time link certification
- 1.5-meter length optimized for rack-to-rack and cross-connect applications in telecommunications rooms
- Polarity method B keying ensures correct fiber pairing in parallel optics deployments
- TIA-568.3-D and ANSI/TIA-942-B compliant for Tier III/IV data center structured cabling
- 25-year system warranty when registered within 90 days of installation
OM4 multimode fiber delivers 40 Gbps and 100 Gbps transmission over 150-meter links using cost-effective 850nm VCSEL transceivers — the baseline for spine-leaf architectures and high-density switch fabrics. The FRZTP77Y001M1.5 uses laser-optimized 50/125µm fiber with 4700 MHz·km modal bandwidth at 850nm, enabling low bit-error rates and headroom for 400G migration paths. Panduit's factory termination process produces insertion loss under 0.35 dB per connector and return loss better than -55 dB, eliminating the variability and rework associated with field terminations. Every trunk ships with test data traceable to the serial number, providing documentation for TIA link certification and warranty claims.
The 12-fiber MTP/MPO interface maps to six duplex LC breakout cables in a 1:6 fan-out topology, consolidating cable pathways and reducing congestion in overhead cable trays and underfloor ducts. Method B polarity (key-up to key-down) aligns with TIA-568 structured cabling conventions for duplex transceiver systems — connect this trunk to a mirrored Method B trunk or use Method A breakout cassettes without adapter flipping. The push-pull tab design survives 500+ mating cycles and allows single-handed insertion in dense patch panels where finger space is limited. Panduit's extraction-resistant latch prevents accidental disconnects during adjacent port moves or cleaning operations.
In spine-leaf network architectures, the FRZTP77Y001M1.5 serves as the physical layer between leaf switches and spine aggregation layers, carrying four 10G lanes per fiber pair to achieve 40G aggregate bandwidth. When paired with 40G QSFP+ SR4 or 100G QSFP28 SR4 transceivers, this trunk supports parallel optics transmission with sub-2.4dB channel loss budget compliance. The 1.5m length fits cross-connects within the same row of racks or between adjacent telecommunications enclosures in entrance facilities, providing the exact reach needed without excess service loops that add insertion loss and clutter cable management trays.
Plenum-rated OFNP jacketing meets NEC Article 770.179(A) for installation in environmental air spaces without conduit, passing UL 910 Steiner Tunnel flame and smoke tests. The jacket uses flame-retardant compounds that self-extinguish and produce minimal smoke density under fire conditions — critical for occupied spaces where cable runs traverse return-air plenums above drop ceilings. The 3.0mm round jacket withstands 110N pulling tension during installation and provides crush resistance in cable trays shared with copper Cat6A and power feeds. Yellow jacket color-coding follows industry convention for OM4 identification, reducing misconnection risk during MAC operations. Panduit applies sequential footage markings every meter for inventory tracking and as-built documentation.
This assembly integrates with Panduit's Opti-Core system of cassettes, patch panels, and enclosures to build modular fiber distribution networks. Use the FRZTP77Y001M1.5 as a backbone trunk from a main distribution area (MDA) patch panel to horizontal distribution area (HDA) cassette modules, then break out to duplex LC jumpers for server and storage connections. The MTP interface supports both pinned and unpinned connector configurations — verify transceiver module requirements before deployment, as some 40G QSFP+ optics require male (pinned) connectors on one end and female (unpinned) on the other to maintain proper transmit-receive alignment. Panduit's polarity method B simplifies this by using key-up male connectors on both ends, requiring a key-up-to-key-down adapter or cassette module for signal path reversal.
Standards compliance includes TIA-568.3-D (Commercial Building Telecommunications Cabling Standard), ISO/IEC 11801 (Generic Cabling for Customer Premises), and ANSI/TIA-942-B (Telecommunications Infrastructure Standard for Data Centers). The assembly qualifies for LEED v4 Materials & Resources credits under responsible sourcing disclosure and supports ANSI/BICSI 002 data center design requirements for Tier III redundant capacity and Tier IV fault-tolerant infrastructure. Installation and maintenance must follow manufacturer guidelines to maintain warranty coverage — avoid bend radii below 10x cable diameter during installation and 20x under no-load conditions, do not exceed pulling tension limits, and use only lint-free cleaning materials on connector end-faces.
