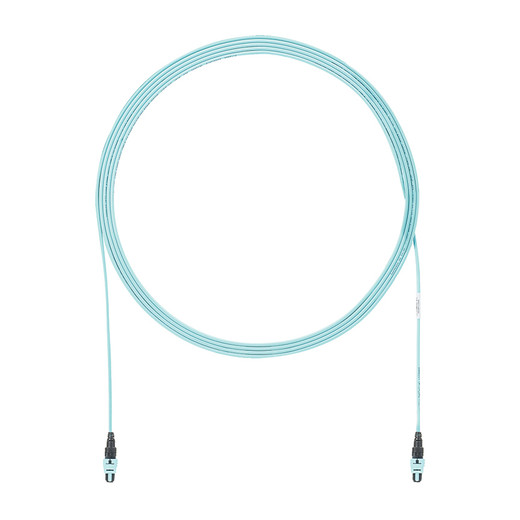

Panduit FRZTP77X001M002 OM4 12F PanMPO Plenum Trunk

Panduit FRZTP77X001M002 OM4 12-Fiber PanMPO Plenum Trunk Cable

The Panduit FRZTP77X001M002 delivers pre-terminated 12-fiber OM4 multimode connectivity for high-density data center backbone installations. This 2-meter plenum-rated trunk features PanMPO female connectors on both ends with Method A polarity, eliminating field termination labor while ensuring reliable 40/100GbE optical paths in server-to-switch, spine-leaf, and storage-network deployments. Factory-tested insertion loss and OM4 50/125µm performance support 100-meter 100GBASE-SR4 reaches and future 400G migrations.

Key Features

• OM4 multimode fiber (50/125µm) — 100m reach at 100Gb/s, 150m at 40Gb/s via parallel optics
• 12-fiber trunk with PanMPO (MPO-12) female connectors — direct compatibility with QSFP+/QSFP28 transceiver modules
• Method A polarity — straight-through lane mapping for switch-to-switch and switch-to-server breakout architectures
• Plenum (OFNP) jacket rating — UL 910 compliant for installation in air-handling spaces without conduit
• 2-meter (6.6 ft) length — optimized for top-of-rack to aggregation-switch trunking and cabinet cross-connects
• Factory-terminated and tested — insertion loss ≤0.35 dB typical, eliminates field fusion splicing and connector polishing
• Push-pull boot design — tool-free connection and removal in dense patch-panel environments
• TIA-568.3-D and ISO/IEC 11801 compliance — meets structured cabling standards for commercial data centers

PanMPO connectivity consolidates twelve fiber strands into a single high-density connector, reducing cable congestion and patch-panel footprint in 40/100GbE leaf-spine fabrics. The FRZTP77X001M002 uses OM4 laser-optimized multimode fiber with 4700 MHz·km modal bandwidth at 850nm, supporting 100GBASE-SR4 at 100 meters and providing headroom for 400GBASE-SR8 migrations when paired with duplex breakout harnesses. Method A (straight-through) polarity aligns transmit lanes on one end with receive lanes on the opposite end, simplifying deployment in switch-to-switch trunk scenarios and reducing the risk of polarity mismatches that cause link failures. Each connector is precision-aligned at the factory and tested for insertion loss, return loss, and end-face geometry per IEC 61300-3-35, ensuring Day 1 optical budget compliance without field rework. The plenum jacket uses low-smoke, flame-retardant compounds that meet NFPA 262 and UL 910 requirements, allowing installation in dropped-ceiling plenums, raised-floor voids, and HVAC return paths without metallic conduit—critical for retrofit projects where conduit runs are cost-prohibitive.

Deploy the FRZTP77X001M002 in top-of-rack to end-of-row aggregation trunks, spine-to-leaf switch fabrics, and storage-area-network (SAN) interconnects where structured pre-terminated cabling reduces installation time and eliminates the variability of field terminations. The 2-meter length fits typical cabinet-to-adjacent-cabinet and intra-row patching scenarios in hot-aisle/cold-aisle layouts, while the female-to-female configuration supports direct connection to MPO cassettes, breakout modules, or duplex LC fanout assemblies for 10GbE server connectivity. PanMPO's push-pull latch mechanism withstands repeated connect/disconnect cycles during MACs (moves, adds, changes) without connector degradation, and the keyed housing prevents accidental mating with incompatible 16-fiber or 24-fiber MPO interfaces. For installations requiring rapid deployment—edge compute buildouts, modular data halls, or emergency failover links—factory-tested trunk cables eliminate the 2–4 hour per-trunk labor burden of field fusion splicing and the specialized fusion-splicer capital expense, translating directly to faster time-to-revenue for colocation providers and reduced downtime windows for enterprise IT teams.

Engineered to TIA-568.3-D, ISO/IEC 11801, and ANSI/TIA-942-B data center infrastructure standards, the FRZTP77X001M002 ensures interoperability with IEEE 40GBASE-SR4, 100GBASE-SR4, and proprietary 4×25G breakout optics from Cisco, Arista, Juniper, and Dell EMC switching platforms. Panduit's Opti-Core product line provides end-to-end fiber documentation, including polarity labeling, jacket print legends, and serialized boot tags that integrate with DCIM (data center infrastructure management) asset-tracking systems—giving network engineers the auditability and change-control traceability required in SOC 2, HIPAA, and PCI-DSS regulated environments. When your deployment demands zero-margin-for-error optical performance, factory-certified insertion loss, and plenum safety compliance out of the box, the FRZTP77X001M002 delivers the backbone infrastructure that keeps 100GbE fabrics running at wire speed.
