Panduit FRXTP77X001F020 12-Fiber OM3 Trunk 20ft

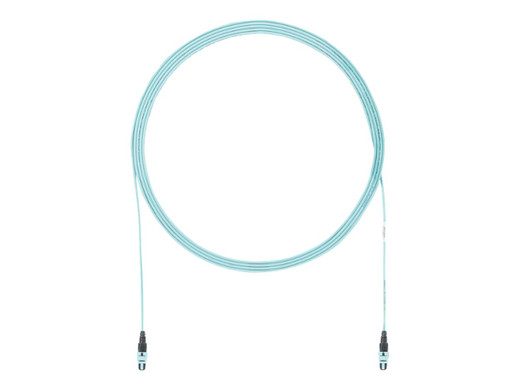

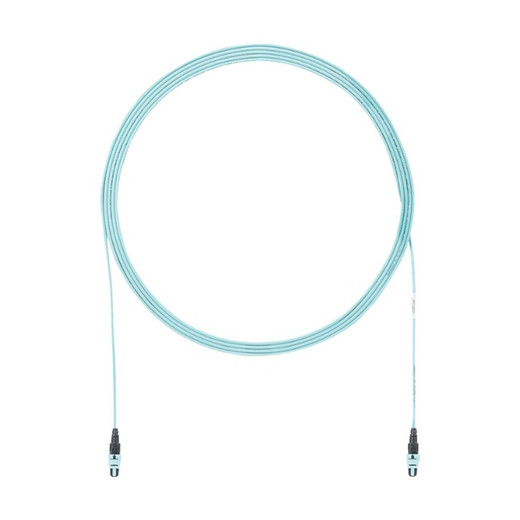

Panduit FRXTP77X001F020 Opti-Core 12-Fiber OM3 Plenum Trunk Cable

The Panduit FRXTP77X001F020 is a factory-terminated 12-fiber OM3 multimode trunk cable engineered for commercial integrators deploying high-density fiber infrastructure in data centers, telecommunications rooms, and enterprise surveillance networks. This 20-foot plenum-rated trunk eliminates field termination labor and delivers consistent insertion loss performance across all 12 fibers, reducing deployment time from hours to minutes while maintaining TIA-568.3-D compliance for 10GBASE-SR and 40GBASE-SR4 applications.

Key Features

• Factory-Terminated Precision: All 12 fibers terminated and tested at the factory with documented insertion loss reports, eliminating field polishing variables and ensuring reliable 10Gb performance.
• OM3 50/125µm Multimode Fiber: Supports 10GBASE-SR to 300 meters and 40GBASE-SR4 to 100 meters, ideal for IP camera backhaul, NVR connectivity, and switch-to-switch trunking in surveillance networks.
• Plenum-Rated OFNP Jacket: UL 910 compliant for air-handling spaces, meeting commercial building codes without requiring conduit in drop ceiling and raised floor installations.
• MTP/MPO Connector Interface: 12-fiber push-pull connectors enable breakout to six duplex LC connections via MTP-to-LC cassettes or direct MTP-to-MTP switch connections for simplified cable management.
• 20-Foot Optimized Length: Pre-cut for typical rack-to-rack or telecommunications room cross-connects, reducing excess cable slack and improving airflow in network cabinets.
• TIA/ISO Standards Compliance: Meets TIA-568.3-D, ISO/IEC 11801, and ANSI/TIA-942-B data center cabling requirements for permanent link and channel performance.
• Opti-Core Brand Reliability: Panduit's precision-molded connectors and low-loss fiber construction deliver <0.35 dB typical insertion loss per connector with <0.15 dB return loss.

In high-density surveillance deployments where integrators are consolidating dozens of IP cameras through fiber uplinks, the FRXTP77X001F020 solves the cable congestion problem at the aggregation layer. Instead of running six individual duplex fiber cables between an edge switch and core network equipment, this single 12-fiber trunk cable consolidates the pathway into one pull. When paired with an MTP-to-LC breakout cassette in a fiber enclosure, it delivers six independent duplex channels—enough to support six 10GbE camera uplinks or three 40GbE NVR connections. The factory terminations eliminate the skill gap and time sink of field fusion splicing, which is critical when project schedules are measured in days and field termination errors can cost hours of troubleshooting.

OM3 multimode fiber strikes the practical balance for commercial installations under 300 meters. While singlemode fiber offers unlimited distance, it requires expensive laser optics at both ends. OM3 works with lower-cost 850nm VCSELs standard in most 10GbE switches and media converters, keeping the total system cost in check while still delivering the bandwidth headroom for 4K and multi-sensor camera traffic. The aqua jacket color-coding (OM3 standard) provides instant visual identification during maintenance and reduces mis-patching risk when multiple fiber types coexist in the same pathway. For integrators pulling cable through congested ceiling grids or vertical risers, the plenum rating means you can route directly without metallic conduit, saving both material cost and installation time while meeting NEC Article 770 requirements.

This trunk cable is designed for permanent installation as structured cabling backbone—not patch cord duty. The MTP connector housings are built for one-time insertion into patch panels or cassette modules, where they'll remain seated for years. If your deployment requires frequent connect/disconnect cycles (such as portable equipment racks or test benches), standard duplex LC patch cords are the better choice. The 20-foot length is optimized for intra-rack and adjacent-rack connections in telecommunications rooms; for longer cross-floor or building-to-building runs, Panduit offers the same trunk configuration in lengths up to 300 feet. When planning your fiber count, remember that each MTP-12 trunk supports six duplex LC breakouts—if your switch has eight 10GbE SFP+ uplink ports, you'll need two of these trunks to populate the full capacity.

TIA-568.3-D compliance ensures this cable meets the structured cabling performance requirements for commercial buildings, while ANSI/TIA-942-B certification confirms suitability for rated-3 and rated-4 data center tiers where surveillance NVRs and VSM servers typically reside. Factory test reports document insertion loss, return loss, and polarity for each fiber, giving you the audit trail needed for low-voltage inspections and customer acceptance testing.
