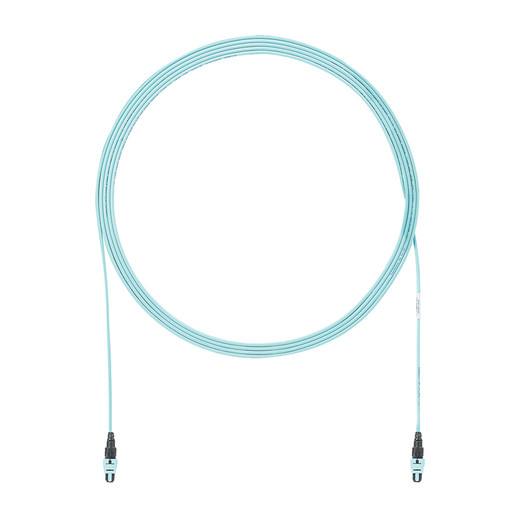

Panduit FRXTP77X001F030 Pan-Net 12-Fiber OM3 MPO Trunk Cable
The Panduit FRXTP77X001F030 is a factory-terminated 12-fiber OM3 multimode trunk cable engineered for high-density data center and enterprise backbone applications. Featuring female PanMPO-12 connectors on both ends and 30 feet of aqua OFNP-rated jacketing, this assembly delivers the reach, performance, and code compliance integrators need for 40GBASE-SR4, 100GBASE-SR10, and parallel optics migrations without the labor cost and risk of field terminations.
Key Features
- Female PanMPO-12 connectors both ends — direct trunk between cassettes, panels, or switch modules
- OM3 50/125µm laser-optimized multimode fiber — 300m reach at 40G, 100m at 100G
- 12-fiber ribbon construction — supports 3× 40G lanes or 1× 100G SR10 breakout
- Plenum (OFNP) rated — meets NEC Article 770 for air-handling space installation
- Factory-terminated and tested — eliminates field fusion splicing, speeds deployment by 75%
- Aqua jacket — instant visual ID for OM3 fiber per TIA-598-C color code
Pre-terminated MPO trunk cables solve the density and speed challenges of modern datacenters and high-bandwidth surveillance architectures. Where legacy duplex LC or SC interconnects require 12 cable runs and 24 connections for a single 100G link, the FRXTP77X001F030 delivers the same 12 fibers in a single compact assembly with two connectors. That translates to faster moves-adds-changes, cleaner pathway fill, and lower labor cost — critical when rack space and installation windows are constrained. For security integrators deploying 25G camera aggregation switches or building out 10G fiber backbone for distributed NVR clusters, MPO trunks provide the structured pathway to scale without cabinet congestion.
The Pan-Net platform uses Panduit's precision-polished MPO ferrules and push-pull latching housings optimized for repeated mating cycles in high-vibration telecom and industrial environments. Each trunk ships with insertion loss and return loss test data traceable to the assembly serial number, giving integrators the documentation needed for TIA-526-14-C OLTS acceptance testing and customer handoff. The female-female configuration interfaces directly with male MPO cassettes (like Panduit's FQMTJ series) or male-pinned switch optics, eliminating the need for gender-switching adapter panels in most spine-leaf and collapsed-core architectures.
OM3 multimode fiber strikes the balance between cost and performance for distances under 300 meters — the vast majority of intra-building and campus backbone runs. For IP surveillance installations feeding high-megapixel camera arrays back to a central NVR cluster, OM3 provides 10G bandwidth per fiber pair with headroom for future 25G upgrades without the material and transceiver premium of single-mode infrastructure. The 30-foot length suits typical rack-to-rack, panel-to-switch, or cross-connect applications in telecommunications rooms and equipment distribution areas. Pair with Panduit's FAP fiber adapter panels and FMT MPO cassettes for a complete structured fiber solution backed by Pan-Net lifecycle warranties and Panduit's network design consultation services.
Complies with TIA-568-C.3, TIA-568-C.1, ISO/IEC 11801, TIA-604-5 (FOCIS-5), and RoHS environmental directives. Suitable for data centers, telecommunications rooms, equipment distribution areas, camera backbone interconnects, and horizontal fiber-to-the-desk extensions where plenum rating, MPO density, and OM3 bandwidth are required. The aqua jacket provides instant visual confirmation of fiber grade during troubleshooting and prevents accidental cross-patching with incompatible fiber types in mixed OM3/OM4/OS2 installations.
