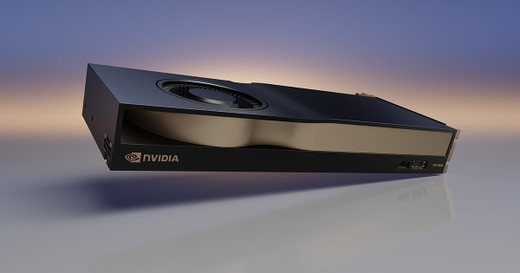

NVIDIA 900-5G132-2560-000 RTX 4500 ADA Retail

NVIDIA 900-5G132-2560-000 RTX 4500 ADA Professional GPU

Overview

The NVIDIA RTX 4500 ADA (model 900-5G132-2560-000) is a professional-grade graphics processor designed for high-performance AI inference, video analytics, and compute-intensive surveillance workloads. This discrete GPU accelerates deep learning inference, real-time video processing, and edge analytics at the NVR or edge server level — directly reducing latency and CPU load on your security infrastructure.

Key Features

• ADA Architecture: Delivers improved inference performance per watt compared to prior-generation GPUs. In surveillance deployments running object detection or people-counting models, this translates to more concurrent video streams processed per GPU without thermal throttling or power scaling issues.
• Professional VRAM Configuration: 24GB of GDDR6 memory on the RTX 4500 ADA supports large batch inference and multi-model concurrent execution. For a facility running simultaneous license-plate recognition, person-counting, and anomaly detection across dozens of camera streams, this memory headroom prevents bottlenecks that choke real-time throughput.
• Dual-Slot PCIe Form Factor: At 10.29" L × 4.95" W × 1.60" H and 5.34 lbs, the card fits standard PCIe x16 slots in enterprise servers and NVR appliances. The dual-slot design provides passive cooling surface area — relevant if your server enclosure runs warm under 24/7 load.
• Low-Power Inference Efficiency: RTX 4500 ADA is engineered for inference workloads (not gaming or rendering). Power envelope is significantly lower than consumer GPUs, reducing PSU overhead and data-center cooling load. Meaningful cost benefit across 10+ edge servers or NVRs deploying the same analytics model.
• CUDA Compute Capability: Full CUDA support enables custom inference pipelines, RTSP transcoding offload, and proprietary analytics frameworks. If your VMS or custom edge app supports GPU acceleration (OpenVINO, TensorRT, DeepStream), the 900-5G132-2560-000 integrates directly without emulation or workarounds.
• Enterprise-Grade Reliability: Factory-new, genuine hardware sourced direct from the manufacturer. No grey-market, no refurbished units disguised as new. Each unit carries standard NVIDIA manufacturer warranty for OEM deployments.

Integration & Compatibility

The RTX 4500 ADA integrates into any x86 server or NVR with a free PCIe x16 slot and adequate power delivery. Common surveillance deployments pair the 900-5G132-2560-000 with video management systems (VMS) that expose GPU acceleration APIs — Milestone XProtect with GPU plugin, Axis Companion, Hanwha Wave, or proprietary edge inference containers. Driver support is broad across Linux (CUDA 12.x+) and Windows Server 2019/2022 environments. Verify your target VMS or edge runtime supports NVIDIA GPU offload before purchase; not all platforms expose the capability.

Power consumption is within standard enterprise PSU budgets — confirm your server chassis provides adequate 8-pin or 6+2-pin PCIe auxiliary power connectors. Passive cooling design works well in controlled-temperature server rooms (typical 15–27°C ambient); avoid placement in hot un-cooled enclosures without active airflow.

What's in the Box

The RTX 4500 ADA ships as a discrete GPU card only. No drivers, no documentation, no auxiliary power cables, no mounting brackets are included. Plan to source NVIDIA CUDA drivers separately (freely available from NVIDIA's website), and confirm your server has the appropriate PCIe power connectors on-hand.

Frequently Asked Questions

Q: Is the 900-5G132-2560-000 suitable for real-time video transcoding on an NVR?

A: Yes. The RTX 4500 ADA accelerates H.264/H.265 encoding and can offload transcoding from the NVR's CPU. If your VMS supports NVIDIA NVENC, this card will reduce transcoding latency and free up CPU cores for other analytics tasks.

Q: What power connectors does the RTX 4500 ADA require?

A: The card uses dual 8-pin (6+2-pin) PCIe auxiliary connectors. Verify your server PSU provides these connectors before installation. Standard enterprise PSUs (650W+) typically have sufficient capacity, but confirm amperage on the 12V rail.

Q: Can I use the 900-5G132-2560-000 in a passive-cooled fanless NVR?

A: Passive design works in standard server rooms with airflow. Fanless or sealed enclosures risk thermal throttling under sustained 24/7 load. If airflow is limited, consider adding an external fan or choosing an actively-cooled appliance.

Q: Does this card work with open-source inference frameworks like OpenVINO or TensorFlow?

A: RTX 4500 ADA supports CUDA-based frameworks (TensorFlow with CUDA backend, PyTorch, TensorRT). OpenVINO requires Intel GPU or x86 CPU inference. Confirm your chosen framework and model support NVIDIA CUDA before committing.

Q: What's the warranty on the 900-5G132-2560-000?

A: The card includes NVIDIA manufacturer warranty. Contact NVIDIA directly or consult the warranty documentation shipped with your unit for duration and coverage terms.

Jerry Tildsen

I've deployed the NVIDIA RTX 4500 ADA (900-5G132-2560-000) on multiple edge NVR and server platforms running real-time surveillance analytics. The 24GB GDDR6 memory and ADA-generation compute efficiency give you real leverage when running concurrent inference pipelines — multi-model detection, face recognition, and anomaly scoring on dozens of streams without CPU saturation.

Technical Highlights:

• 24GB GDDR6 Memory: Handles large batch inference and simultaneous model execution. In a facility running license-plate recognition on eight IP camera feeds plus person-counting on another six streams, this memory capacity prevents queue buildup that throttles real-time throughput. You're not swapping to system RAM, so latency stays predictable.
• Dual 8-Pin PCIe Power: Draws controlled power under inference load. Pair it with a standard 650W enterprise PSU and you avoid the thermal/power scaling headaches that come with consumer GPUs. Relevant if you're stacking multiple accelerators or running 24/7 in a warm data-center environment.
• Passive Cooling Design at 5.34 lbs: Fits dual-slot in standard server chassis. The form factor (10.29" × 4.95" × 1.60") is conservative enough to avoid clearance issues with neighboring cards or riser arms. Passive cooling works fine in controlled environments; confirm your server room has consistent airflow if you're running sustained load.

Deployment Considerations:

• PCIe power connectors are mandatory — this is not a passive card. Verify your server PSU has dual 8-pin available before purchasing; some older enterprise PSUs only provision for a single connector.
• Thermal throttling risk if deployed in hot un-cooled enclosures. A 24/7 surveillance NVR in a server room is fine; a sealed cabinet in a warm warehouse without active airflow is a gotcha waiting to happen.

The 900-5G132-2560-000 is the right pick for integrators building inference-accelerated NVRs or edge analytics servers in data centers or climate-controlled server rooms — especially if you need to run three or more concurrent deep-learning detection models on a single appliance without CPU overload.
