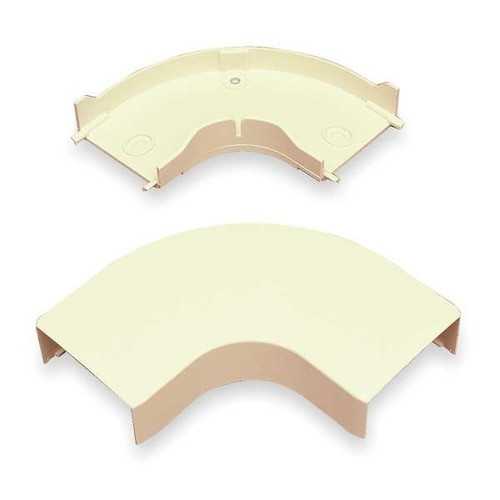

Middle Atlantic PN03F11WH 90° Flat Elbow Fitting for PN03 Non-Metallic Raceway

Overview

The Middle Atlantic PN03F11WH is a white 90-degree flat elbow fitting designed for the Eclipse PN03 non-metallic raceway system. When a cable run needs to make a horizontal direction change along a wall or baseboard — turning a corner without breaking out of the raceway — the PN03F11WH keeps the installation clean, enclosed, and code-compliant. It's the right part when you need a flat-plane turn rather than an inside or outside corner transition. TAA compliant, making it suitable for federally funded projects and installations with domestic procurement requirements.

Compatibility

Designed exclusively for the Middle Atlantic Eclipse PN03 non-metallic raceway series. This fitting mates with PN03-series raceway channel and cover — do not use with PN10, PN20, or other PN-family raceways with different channel profiles. Confirm the raceway channel width matches the PN03 profile before ordering. For inside corner transitions use the PN03I11WH; for outside corners use the PN03O11WH. The PN03F11WH covers flat (in-plane) 90-degree turns only.

Installation Notes

Snap-fit installation — no tools required for the fitting itself. Ensure the raceway channel is cut cleanly and squared at the turn point before seating the elbow. Route cables through the elbow before closing the cover. White finish matches standard PN03 raceway components; field painting is possible but not required in typical commercial interior deployments.
