Overview

SKU: PN03F11V
UPC: 786776015195
Condition: New
Write a Review 1% OFF

Middle Atlantic NM 90 D. Flat Elbow PN03 - PN03F11V

Middle Atlantic PN03F11V NM 90° Flat Elbow for PN03 Cable TrayOverviewThe PN03F11V is a 90° flat elbow fitting for Middle Atlantic's PN03 cable tray s…

$3.02 $2.99 SAVE $0
Ships same business day
In stock

Quantity:

Adding to cart… The item has been added
Compatibility guidance available for your deployment
Senior specialists for pre and post-sales support
Authorized sourcing and documentation support
Shipping and lead-time confirmation before install

Laura Bennett, IPSD Senior Specialist

Talk to Laura

200+ hrs training • U.S - based

Senior Specialist • 877-277-7147

Middle Atlantic NM 90 D. Flat Elbow PN03 - PN03F11V

$3.02
$2.99

Overview

SKU: PN03F11V
UPC: 786776015195
Condition: New

No Bots, Just Experts

Questions about this product? Free pre-sales support from a senior specialist — product questions, compatibility checks, BOM quotes, price confirmation — typically answered within one business day. Need camera placement or system design work? Engineering time is $175 per hour (qty 1 = 1 hour). Hardware buyers get up to one hour ($175) credited back on their order.

Description

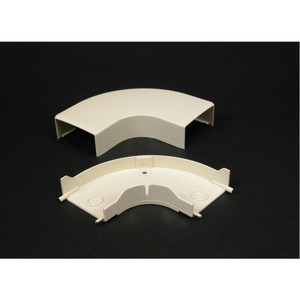

Middle Atlantic PN03F11V NM 90° Flat Elbow for PN03 Cable Tray

Overview

The PN03F11V is a 90° flat elbow fitting for Middle Atlantic's PN03 cable tray system, designed to execute clean horizontal direction changes in cable runs without bending or stressing conductors. If your cable path turns a corner — around a rack row, along a wall junction, or at a room perimeter — this fitting gives you a code-clean, strain-free transition that preserves cable bend radius and keeps runs organized. Install it wherever a PN03 cable tray run needs to change direction in the horizontal plane.

Compatibility

Designed specifically for the Middle Atlantic PN03 series cable management tray system. The PN03F11V mates with standard PN03 tray sections — confirm your existing tray is PN03-series before ordering, as Middle Atlantic offers multiple tray widths and series that use different fittings. This fitting is not interchangeable with PN04, PN06, or other Middle Atlantic cable tray families.

Installation Notes

Orient the flat elbow in the horizontal plane for direction changes within the same elevation. For vertical elevation changes, a vertical elbow fitting is required instead. Secure all tray joints per Middle Atlantic's standard splice hardware to maintain a continuous, grounded cable management pathway. Verify the planned corner radius accommodates the minimum bend radius of your largest conductor before finalizing tray routing.

Specifications
Product Type: Cable Tray Accessory
Cable Category: Cable Management
