Middle Atlantic NM 90 D. Flat Elbow PN10 - PN10F11V

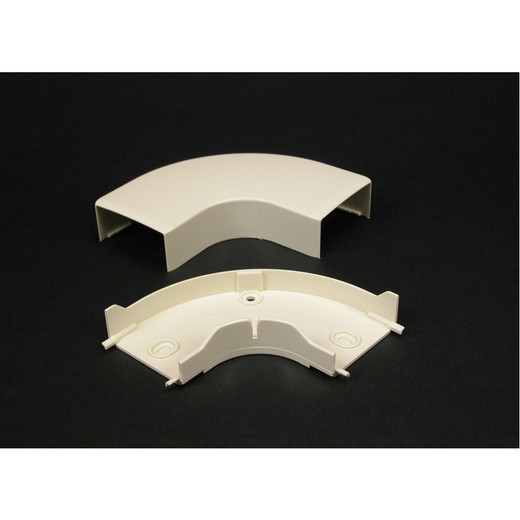

Middle Atlantic PN10F11V 90-Degree Flat Elbow Fitting

Overview

The PN10F11V is a 90-degree flat elbow fitting for Middle Atlantic's Eclipse PN10 surface raceway system. It handles the horizontal direction changes that straight raceway runs can't — specifically the right-angle turns you encounter at wall corners, around door frames, or along baseboards where cabling must change direction without bending conductors past their minimum radius. The ivory finish matches the standard PN10 raceway color, keeping wall-mounted cable management consistent across the installation.

Compatibility

Designed exclusively for the Middle Atlantic Eclipse PN10 surface raceway series. Fits PN10-profile conduit and raceway components within that family — including straight raceway sections, couplings, and other PN10 fittings. Do not use with PN5, PN20, or other Eclipse profile sizes; the channel dimensions are not interchangeable. Verify the existing raceway carries the PN10 designation before ordering.

Installation Notes

Orient the flat elbow so both open channels align with the incoming and outgoing raceway runs before securing. The flat profile keeps the fitting flush against the wall surface, which matters in high-traffic corridors or anywhere a protruding elbow would be a snag hazard. Snap or screw-mount per the standard PN10 installation method consistent with adjacent raceway sections — no specialized tooling required beyond what the broader PN10 system demands.
