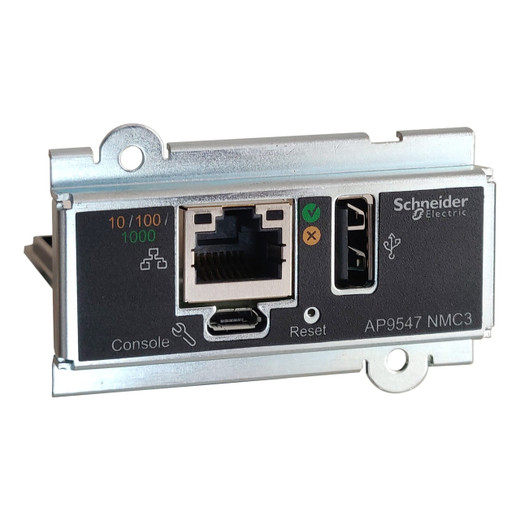

APC by Schneider Electric Network Management Card for Easy UPS 3-PHASE - AP9547

APC by Schneider Electric AP9547 Network Management Card for 3-Phase Easy UPS

Overview

The AP9547 is a network management card engineered specifically for the APC by Schneider Electric Easy UPS 3 Series — the 3-phase UPS line deployed in data centers, industrial facilities, and commercial buildings where remote power management isn't optional, it's operational infrastructure. Slot the AP9547 into a compatible Easy UPS 3 Series unit and you gain full IP-accessible monitoring, control, and alerting without adding a separate management appliance.

If you're running a BACnet-integrated building management system or a SNMP-based network operations center, the AP9547 speaks both languages natively — which is rare at this price point in the power and UPS management card category.

Key Features

• Gigabit Ethernet (10/100/1000 Mbit/s, RJ-45): A single RJ-45 port connects the UPS to your network at up to 1Gbps. Overkill for SNMP polling overhead? Yes — but it future-proofs the management interface against network upgrades and eliminates any bottleneck when transferring event logs or firmware updates.
• SNMPv3 with PowerNet MIB: SNMPv3 delivers authenticated, encrypted SNMP sessions — not the cleartext traps of SNMPv1/v2c. The bundled PowerNet MIB gives your NMS (SolarWinds, PRTG, Nagios, etc.) a complete object tree for APC UPS variables without building custom OID mappings from scratch. Expect full input/output voltage, load percentage, battery runtime, and fault traps out of the box.
• BACnet Protocol Support: BACnet integration is the differentiator here. Facilities teams running Schneider EcoStruxure, Johnson Controls Metasys, or Siemens Desigo CC can pull UPS status directly into the building automation system alongside HVAC and lighting — no separate SNMP poller needed on the BMS side. This is why the AP9547 gets specified in commercial construction projects, not just IT rooms.
• HTTPS and SSH Security: Web-based management runs over HTTPS only — no cleartext HTTP interface to accidentally leave exposed. SSH replaces Telnet for CLI access. Combined with SNMPv3, every management path is encrypted. Password protection and a physical reset button round out the access controls.
• Syslog Event Forwarding: Events stream to your syslog server in real time — power events, battery faults, overload conditions. Pair with a SIEM or log aggregator and you have an auditable power event history without manual log pulls.
• Web-Based Management Interface: Browser-accessible dashboard for operators who don't want to touch CLI. Confirm load, battery status, input voltage, and scheduled tests from any browser on the network — no client software to install or maintain.
• 3-Phase UPS Visibility: The card is built for 3-phase systems, meaning it exposes per-phase load, voltage, and current data — not just aggregate UPS status. For facilities engineers balancing load across phases, that granularity is the difference between proactive management and reactive troubleshooting.
• Password Protection + Reset Button: Hardware reset gives you a physical recovery path if credentials are lost or the card gets into a bad state — no truck roll to the data center required for a management card lockout.

Integration and Compatibility

The AP9547 is compatible exclusively with the Easy UPS 3 Series (3-phase) product line from APC by Schneider Electric. Verify your UPS model accepts the AP9547 management card slot before ordering — not all Easy UPS chassis share the same expansion bay. This card is not interchangeable with the AP9630/AP9631 cards used in older Symmetra or Smart-UPS lines.

On the network side, the card integrates with any SNMP-capable NMS via the included PowerNet MIB, any BACnet/IP-capable BMS, and APC's own EcoStruxure IT platform for cloud-based monitoring. For teams running a network management stack, the SNMPv3 support means the AP9547 slots into existing monitoring infrastructure without a separate polling credential set.

Pair the AP9547 with a managed PoE switch or dedicated management VLAN to isolate UPS management traffic — standard practice in environments where the power infrastructure is considered a critical system. For storage and retention planning in your monitoring stack, consult your NMS vendor's storage and retention guidelines for SNMP trap volumes.

Frequently Asked Questions

Q: Is the AP9547 compatible with APC Smart-UPS or Symmetra UPS models?

A: No. The AP9547 is designed exclusively for the APC Easy UPS 3 Series (3-phase). It is not compatible with Smart-UPS, Symmetra, or other APC UPS families that use different management card form factors such as the AP9630 or AP9631.

Q: Does the AP9547 support SNMPv3?

A: Yes. The AP9547 supports SNMPv3 with authentication and encryption, along with the PowerNet MIB for full UPS object visibility in your network management system. SNMPv1 and SNMPv2c are also referenced in the protocol set.

Q: Can the AP9547 integrate with a building automation or BMS system?

A: Yes. The AP9547 supports BACnet, which allows direct integration with BACnet/IP-capable building management systems such as Schneider EcoStruxure, Johnson Controls Metasys, and Siemens Desigo CC.

Q: What network speed does the AP9547 support?

A: The AP9547 includes a single RJ-45 Gigabit Ethernet port supporting 10/100/1000 Mbit/s auto-negotiation.

Q: Is management traffic on the AP9547 encrypted?

A: Yes. Web-based management uses HTTPS and CLI access uses SSH. SNMP management uses SNMPv3 with encryption. Password protection is also enforced on the management interface.

Q: Does the AP9547 support syslog?

A: Yes. The AP9547 supports syslog event forwarding, allowing UPS power events and alerts to stream to a syslog server or SIEM platform in real time.

Ted Perry

The AP9547 earns its spot in 3-phase Easy UPS deployments specifically because of its BACnet support — that's the spec that separates it from generic NMC options. Most IT-centric management cards speak SNMP fluently but go silent the moment a facilities engineer asks for BMS integration. With the AP9547, the 3-phase UPS becomes a first-class citizen in the building automation layer without requiring a protocol converter or middleware appliance in between.

Technical Highlights:

• BACnet + SNMPv3 dual-protocol: Covers both the IT operations center (SNMP polling via PowerNet MIB) and the facilities BMS (BACnet/IP) simultaneously — a single card handling two organizational reporting chains.
• Gigabit Ethernet RJ-45: 1Gbps management port on a UPS NMC is more about longevity than throughput. It means the card survives network infrastructure upgrades without becoming the bottleneck or requiring a speed-matched switch port.
• HTTPS + SSH + SNMPv3: Every management protocol is encrypted. That matters in environments where the UPS management VLAN traverses shared infrastructure or where compliance frameworks (SOC 2, ISO 27001) require encrypted management plane access.

Deployment Considerations:

• Confirm your Easy UPS 3 Series chassis has an available management card slot before ordering — some configurations ship with a basic card already installed that must be removed first.
• BACnet integration requires the AP9547 to be configured with a valid BACnet device instance and network number; coordinate with the BMS integrator before commissioning to avoid device ID conflicts on the BACnet/IP segment.

The AP9547 is the right call for commercial construction and critical facility projects where the UPS must report into both an IT NOC and a building management system — healthcare facilities, data center co-location spaces, and manufacturing plants running BACnet-based energy management are the primary deployment fit.
