Altronix NETWAY5PQWPX 5-Port Managed Hardened PoE+ Switch with Outdoor NEMA4/IP66 Enclosure
Overview

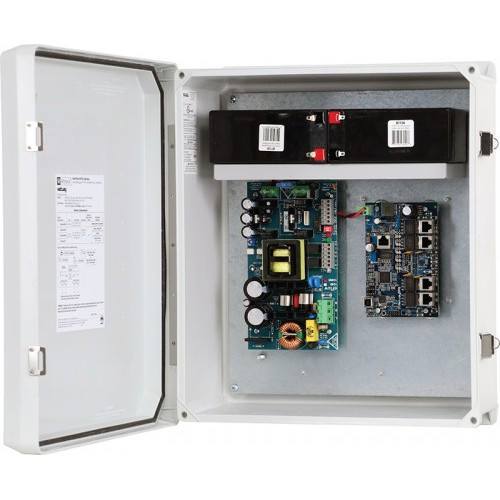

The Altronix NETWAY5PQWPX is a 5-port managed hardened PoE+ switch packaged in a NEMA 4/IP66-rated outdoor enclosure — purpose-built for surveillance deployments where your edge devices live outside and your IT rack is somewhere else entirely. It powers up to four PoE/PoE+ IP devices (cameras, access controllers, intercoms) over a single Ethernet run back to the headend, and its embedded LINQ technology lets you reboot a locked-up camera or check port diagnostics from the network without rolling a truck. If you're managing a parking structure, campus perimeter, or remote gate station and you've been burned by a frozen camera at 2 AM, this is the product that addresses that problem directly.
Unlike its unmanaged sibling (the NetWay5PWPX), the NETWAY5PQWPX gives you full managed network switch control at the edge — VLANs, remote power cycling, event logging, and email alerting — without requiring an IT-grade equipment room at the pole.
Key Features
- 120W Total PoE Budget across Four Ports: Each of the four PoE/PoE+ ports supports IEEE 802.3af (15W) and IEEE 802.3at (30W), with 120W shared across all ports. In practice, you can run four 30W PTZ cameras simultaneously at full draw, or mix in access controllers and intercoms without budgeting port-by-port manually — 120W is sufficient headroom for a dense four-device cluster.
- LINQ Embedded Remote Management: LINQ is Altronix's onboard network power management layer — it provides LAN/WAN access to per-port power status and diagnostics, lets you issue remote device resets, logs a history of events, and pushes email and Windows Dashboard alerts when something goes wrong. For a remote parking lot or unmanned entry point, this eliminates a physical site visit every time a camera locks up.
- NEMA 4/IP66 Hardened Enclosure: The WP2 outdoor enclosure is rated NEMA 4 and IP66 — it blocks windblown rain, hose-down water, and dust ingress, making it appropriate for exposed outdoor mounting at building exteriors, gate columns, or utility poles. This is not an indoor-rated box dressed up with weather tape; the rating is integral to the enclosure design.
- -30°C to 70°C Operating Range: The switch board itself operates from -30°C (-22°F) to 70°C (158°F), which covers northern climate winters and sun-baked southwestern summers without derating. Storage range extends to -40°C/-40°F, so the unit survives unheated warehouses between project stages.
- Battery Backup Ready — Up to Two 12VDC/7AH Batteries: The enclosure accommodates two 12VDC/7AH batteries (sold separately), giving your edge PoE switch a local UPS capability. When the utility feed drops, cameras and access controllers stay online. Size your runtime against your device draw — at 120W total load, runtime will be short; at partial load (two 15W cameras), it extends meaningfully.
- VLAN Support — Up to 10 Groups, ID Range 2–4095: 802.1Q tagged VLAN segmentation lets you isolate camera traffic from access control traffic at the switch level, even at the edge. For sites where physical security and IT security are separate domains, this prevents surveillance traffic from riding the corporate LAN without a managed hand-off point.
- Gigabit on All Five Ports: All five ports — four PoE and one uplink — run 10/100/1000 Mbps with auto-negotiation and auto-crossover on RJ45. Gigabit to the uplink means a 4K camera cluster won't saturate the backhaul run. CAT5 or better structured cable, up to 100m per IEEE standards.
- NDAA, TAA, BAA, and CE Compliant: The NETWAY5PQWPX carries NDAA Section 889 compliance — critical for federal, state, and municipal projects with supply-chain restrictions. TAA and BAA compliance further qualifies it for US government procurement vehicles. Verify your specific contract vehicle requirements, but this unit is positioned for government and institutional work where compliance documentation matters at the BOM stage.
- Integral Surge Protection: Built-in surge protection on the PoE ports reduces the risk of losing the switch board — or the cameras downstream — to a nearby lightning strike. On outdoor deployments at exposed locations, this is not optional protection; it's baseline.
Integration and Compatibility
The NETWAY5PQWPX drops into any standard PoE switch infrastructure as a managed edge node. The uplink port connects back to your core switch or NVR switch over standard structured cabling — up to 100m on CAT5 or better. PoE devices on the four downstream ports negotiate 802.3af or 802.3at automatically; no manual port configuration is required for standard camera deployments.
LINQ management is accessed via LAN/WAN, meaning your VMS operator or security administrator can reach per-port diagnostics through the existing network without a separate out-of-band management path. VLAN tagging (802.1Q) integrates with upstream managed switches to enforce traffic segmentation policies already in place at the core.
For pole mounting, Altronix's PMK2 pole mount kit is a listed accessory. The LOCK1WP padlock is available for enclosure security. Both are separate line items — the base unit ships as the enclosure with the switch board and power supply/charger only. Batteries (two 12VDC/7AH) are sold separately and must be sourced independently. See the full Altronix product line for compatible accessories and companion switch boards.
If your project requires a similar managed solution in an indoor enclosure, the NetWay5PQX uses the same switch board in an NEMA 1-rated indoor BC300 enclosure. If you need the outdoor form factor without batteries or a power supply/charger, evaluate the NetWay5PQWPN. For sites where remote management is not required, the unmanaged NetWay5PWPX reduces cost at the expense of LINQ diagnostics and VLAN capability — a reasonable trade-off for simple, fixed single-camera installations where truck rolls are acceptable.
This unit is well-suited for integrators building IP camera clusters at exterior access points, remote gates, parking structures, and campus perimeter locations where both outdoor environmental protection and centralized remote management are required on the same device. Pair with a network video recorder at the headend and your edge PoE distribution is handled in one UL-listed, NDAA-compliant assembly.
Frequently Asked Questions
Q: Is the NETWAY5PQWPX NDAA Section 889 compliant?
A: Yes. The NETWAY5PQWPX carries NDAA, TAA, BAA, and CE compliance listings per Altronix's published agency listings for this model. It is appropriate for federal, state, and municipal projects with supply-chain compliance requirements.
Q: Does the NETWAY5PQWPX include batteries?
A: No. The enclosure accommodates up to two 12VDC/7AH batteries for local UPS backup, but batteries are sold separately. Altronix specifies that proper ventilation is required when batteries are installed.
Q: What is the total PoE power budget on the NETWAY5PQWPX?
A: 120W total across all four PoE/PoE+ ports. Each port supports up to 30W (802.3at PoE+) or 15W (802.3af PoE). The 120W shared budget supports up to four devices at full 30W draw simultaneously.
Q: What is the operating temperature range of the NETWAY5PQWPX?
A: The switch operates from -30°C to 70°C (-22°F to 158°F), with a storage range of -40°C to 85°C (-40°F to 185°F). This covers extreme cold-climate and high-heat outdoor deployments without derating.
Q: Can the NETWAY5PQWPX be pole-mounted?
A: Yes. Altronix lists the PMK2 Pole Mount Kit as a compatible accessory specifically for outdoor enclosures including this model. The LOCK1WP padlock is also available for enclosure security. Both are sold separately.
Q: What is the difference between the NETWAY5PQWPX and the NetWay5PWPX?
A: The NetWay5PWPX is the unmanaged version of this switch — it lacks LINQ remote management, VLAN support, event logging, and alert notifications. The NETWAY5PQWPX adds full managed switch capability at the edge, including remote power cycling and diagnostics over LAN/WAN.
The spec that defines this product's value proposition is the combination of a -30°C to 70°C operating range, IP66/NEMA4 enclosure, and embedded LINQ management in one assembly — the NETWAY5PQWPX is essentially a managed IT edge switch that has been hardened to survive the same outdoor conditions as the cameras it's powering. Most integrators I've worked with either run exposed unmanaged switches in weatherproof boxes (no remote management, no VLANs) or pull conduit back to an indoor IDF (expensive, sometimes impossible). This unit closes that gap.
Technical Highlights:
- 120W Shared PoE Budget: Four ports at up to 30W each — enough to run a cluster of four PTZ cameras at full draw, or mix in 15W fixed cameras and access controllers. The shared pool means you can't accidentally exceed the power supply capacity at the edge without deliberate oversubscription.
- LINQ Remote Management via LAN/WAN: Per-port power cycling, real-time diagnostics, event history logging, and email/Windows Dashboard alerts — all accessible over the existing network without a separate console cable or physical site visit. On a campus with 40 remote nodes, this pays for itself on the first frozen camera incident.
- Battery Backup Cavity (Two 12VDC/7AH): The enclosure physically accommodates two batteries — the UPS functionality is built into the physical design, not an afterthought add-on enclosure. Plan your runtime against actual device draw; at 60W (two PoE+ PTZs), you'll get meaningful bridge time through a utility interruption.
Deployment Considerations:
- Batteries are sold separately — budget for them at the BOM stage and confirm your local ventilation plan before closing the enclosure. Altronix explicitly requires proper ventilation when batteries are installed inside the WP2 enclosure.
- The 120W budget is shared, not per-port guaranteed. If all four devices are high-draw (PTZ cameras negotiating 30W at startup), verify your worst-case simultaneous draw doesn't exceed the supply capacity before commissioning. Startup inrush on PTZ pan/tilt motors can spike above steady-state draw.
This unit is the right call for parking structure perimeter deployments and remote gate stations where you need outdoor-rated PoE distribution, VLAN segmentation between access control and video traffic, and the ability to reboot a frozen camera from the NOC without dispatching a technician to a remote location at 3 AM.
