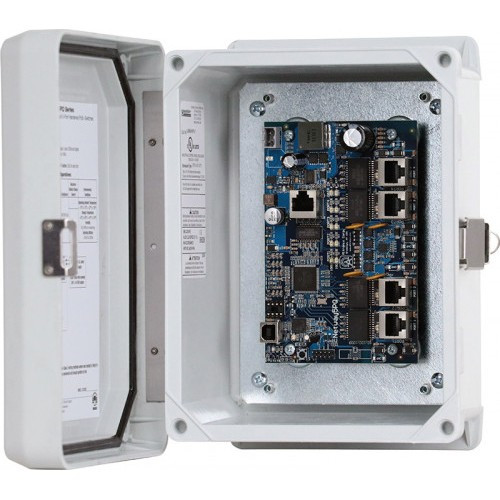

Altronix NETWAY5PQWPN 5-Port Managed Hardened PoE+ Switch in NEMA 4X Outdoor Enclosure
Overview
The Altronix NETWAY5PQWPN is a 5-port managed, hardened PoE+ switch purpose-built for outdoor and harsh-environment surveillance deployments. It combines four powered PoE/PoE+ ports with Altronix's embedded Altronix LINQ technology for remote power monitoring and device control — all sealed inside a NEMA 4/4X, IP66-rated enclosure rated from -30°C to 70°C. If you're deploying cameras or access controllers at a pole, gate, or building perimeter where a conditioned indoor rack isn't an option, this is the switch built for that scenario.
Key Features
- 120W Total PoE Output at 24VDC: Four 10/100/1000 Mbps PoE/PoE+ ports deliver up to 30W each, with 120W aggregate output when powered at 24VDC — enough headroom to run four full PoE+ devices simultaneously without throttling. At 12VDC input, total output drops to 60W, so confirm your power source voltage before finalizing the design.
- LINQ Embedded Remote Management: LINQ technology lets you remotely reset individual ports, monitor real-time power draw, and receive email or Windows Dashboard alerts without rolling a truck. Event logs track diagnostic history, which matters when you're troubleshooting an intermittent camera reboot at a remote site.
- NEMA 4/4X and IP66-Rated Enclosure: The WP4 enclosure handles rain, hose-down, and dust ingress — rated for direct outdoor exposure. The -30°C to 70°C operating range covers most North American climates, including unheated parking structures and rooftop installs.
- VLAN Support (Up to 10 Groups): 802.1Q tagged VLAN with ID range 2–4095 and up to 10 VLAN groups lets you segment camera traffic from access control on the same switch — standard practice for zero-trust physical security network architectures.
- Gigabit on All Five Ports: All five ports run 10/100/1000 Mbps with auto-negotiation and auto-crossover, so you're not bottlenecking on the uplink when aggregating four camera streams.
- TAA, NDAA, BAA, and CE Compliant: NDAA Section 889 compliance means this switch can be deployed in federally funded projects and government facilities without procurement complications. TAA and BAA compliance further broadens eligibility for public-sector and defense contracts.
- Solar Panel Compatible Input: Accepts 12 or 24VDC from a UL Listed source or a solar panel with nominal 24V output (~12–35V range) — a practical option for remote perimeter cameras where utility power is unavailable.
Integration and Compatibility
The NETWAY5PQWPN connects via standard RJ45 with 4-pair CAT5 or better to distances up to 100m — no proprietary cabling required. The uplink is a single data port, keeping the wiring run to the headend simple. LINQ management integrates over LAN/WAN, so it sits alongside your existing network switches and VMS infrastructure without a separate management platform. For pole mounting, the optional PMK1 Pole Mount Kit is a purpose-fit accessory. The LOCK1WP padlock accessory secures the enclosure in unsupervised outdoor locations. If you need the same switch without LINQ management, the NetWay5PWPN is the unmanaged sibling. For indoor deployments, the NetWay5PQX uses a NEMA 1 enclosure. Mounting hardware is included in the box.
This product carries a lifetime manufacturer warranty per Altronix's published policy.
Frequently Asked Questions
Q: Is the NETWAY5PQWPN NDAA Section 889 compliant?
A: Yes. The NETWAY5PQWPN is listed as NDAA compliant per Altronix's published agency listings, along with TAA and BAA compliance.
Q: What is the total PoE power budget, and does it change based on input voltage?
A: Yes — input voltage matters. At 24VDC input, total PoE output is 120W across four ports (up to 30W each). At 12VDC input, total output drops to 60W. Size your input power source accordingly.
Q: Can the NETWAY5PQWPN be powered by a solar panel?
A: Yes. It accepts 12 or 24VDC from a UL Listed power source or a solar panel with a nominal 24V (~12–35V) output, making it suitable for off-grid perimeter camera installations.
Q: How do I remotely manage or reboot a connected device?
A: LINQ technology provides remote port reset, real-time diagnostics, and power monitoring over LAN/WAN. Email and Windows Dashboard alerts notify you of events, and an event log tracks history for each port.
Q: What enclosure rating does the NETWAY5PQWPN carry, and what temperature range does it support?
A: The WP4 enclosure is rated NEMA 4/4X and IP66-11 for outdoor use. Operating temperature range is -30°C to 70°C (-22°F to 158°F).
Q: Does the NETWAY5PQWPN support VLANs?
A: Yes. It supports 802.1Q Tagged VLAN with up to 10 VLAN groups and an ID range of 2–4095, enabling traffic segmentation between cameras and access control devices on the same switch.
The NETWAY5PQWPN is one of the few managed outdoor PoE+ switches I'd spec with confidence for unmanned perimeter locations — the LINQ remote management is the differentiator. On a recent parking structure deployment with eight poles, being able to remotely power-cycle a camera that locked up mid-shift saved multiple truck rolls. That LINQ feature alone justifies the step up from the unmanaged NetWay5PWPN in any site where you can't dispatch a tech quickly.
Technical Highlights:
- Voltage-Dependent Power Budget: The 120W total output requires 24VDC input. If your field power source is 12VDC, budget only 60W — that limits you to roughly two PoE+ devices at full draw instead of four. Confirm input voltage in the design phase.
- NEMA 4X + IP66 Enclosure: The WP4 enclosure holds up to hose-down and salt air, and the -30°C to 70°C range handles unheated rooftop installs across most of the continental US without supplemental heating.
- Gigabit Uplink on CAT5e or Better: The single uplink port runs up to 1000 Mbps at 100m — adequate for aggregating four camera streams, but plan your cable run carefully; exceeding 100m degrades both data and PoE delivery.
Deployment Considerations:
- The PMK1 pole mount kit and LOCK1WP padlock are sold separately — budget for both on any exposed outdoor installation where physical security of the enclosure matters.
- Solar input is supported (~12–35V nominal), but at lower solar output voltages the PoE budget drops to 60W — don't assume 120W availability on solar-only sites without verifying panel output under load conditions.
The NETWAY5PQWPN is purpose-built for perimeter security deployments — parking lots, loading docks, gate lanes, and remote building entrances — where you need managed PoE+ in a weatherproof enclosure without running conditioned power or indoor rack space to the field location.
