APC by Schneider Electric Netshelter SX Roof FAN Tray 208-230 VAC 750MM - ACF504

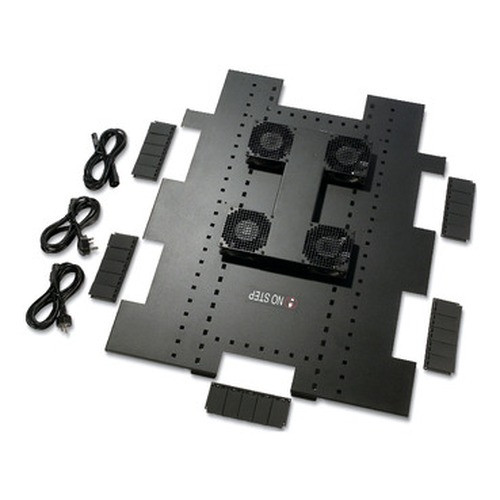

APC by Schneider Electric ACF504 Netshelter SX Roof Fan Tray

Overview

The ACF504 is a roof-mounted fan tray designed to add or replace active exhaust cooling in APC Netshelter SX enclosures with 750mm width. It operates on 208-230 VAC — the standard supply voltage found in most data center and IDF/MDF environments — and installs at the top of the rack to pull hot air up and out, reinforcing the hot-aisle/cold-aisle airflow model without modifying the enclosure structure. Where passive venting is insufficient for high-density IT loads, a roof fan tray like the ACF504 provides targeted active exhaust to keep equipment within thermal thresholds.

Compatibility

The ACF504 is specified for the APC Netshelter SX enclosure family, 750mm-wide configurations. Verify your enclosure's width dimension before ordering — the 600mm Netshelter SX variants require a different fan tray model. Netshelter SX enclosures are a standard deployment in network rack and cabinet installations. Confirm AC voltage availability at the rack before installing: ACF504 requires 208-230 VAC and is not rated for 100-120 VAC circuits.

Installation Notes

The ACF504 mounts to the roof position of the compatible Netshelter SX enclosure. Ensure the target rack is 750mm wide before purchase — dimensional mismatch is the most common installation error with roof fan accessories. Verify that a 208-230 VAC outlet or PDU circuit is accessible within the enclosure before mounting. For rack PDU and power distribution options compatible with Netshelter SX deployments, confirm circuit voltage matches the fan tray's input requirement. Consult APC installation documentation for torque specs and mounting hardware details specific to the enclosure generation.
