APC by Schneider Electric Netshelter SX 750MM Wide X 1200MM Deep Networking Roof - AR7716

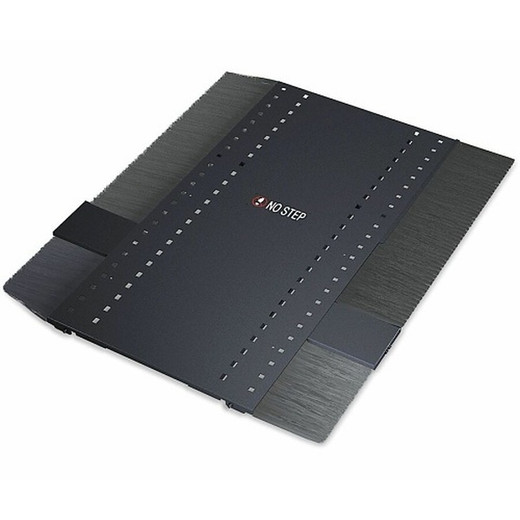

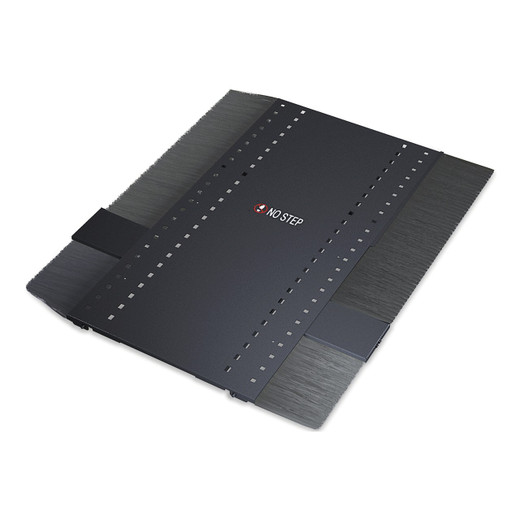

APC by Schneider Electric AR7716 NetShelter SX Networking Roof Panel

Overview

The AR7716 is a purpose-built roof panel for the APC NetShelter SX open-frame rack enclosure series — specifically sized for 750mm-wide by 1200mm-deep cabinets. If you're closing out an open-top NetShelter SX deployment and need to manage airflow, contain cable egress, or simply close off the top of the enclosure for dust control and physical security, this is the correctly dimensioned cover for that frame. At 29.01 inches across its principal dimension, it drops into the NetShelter SX form factor without modification.

The AR7716 ships in black and is APC by Schneider Electric factory-new, RoHS compliant — meaning it meets the EU Restriction of Hazardous Substances directive, relevant for deployments in regulated environments or facilities with environmental compliance requirements. RoHS compliance also signals material quality control: no restricted heavy metals in the panel construction.

Key Features

• Designed for NetShelter SX 750mm x 1200mm: This roof fits one specific enclosure footprint — 750mm wide, 1200mm deep. If your rack is a different width (600mm is the other common NetShelter SX width) or a different depth (1070mm, for example), this panel will not fit. Verify your cabinet model before ordering. Compatible with the NetShelter SX rack enclosure line.
• RoHS Compliant construction: Meets EU hazardous substances standards — relevant for LEED-certified facilities, EU-destined equipment, or internal procurement policies that require RoHS documentation on all installed components.
• Black finish: Matches the standard NetShelter SX black cabinet aesthetic. Consistent visual presentation matters in customer-facing data rooms and network operations centers where cabinet uniformity is part of the standard.
• Enclosure integrity: Closing the top of an open-frame rack limits dust ingress and provides a physical barrier against accidental contact with cabling and patch panels at the top of the cabinet — a basic but real operational benefit in busy IDF closets and machine rooms. For power distribution and cable management builds, a closed top also gives you a defined surface for cable entry planning.

Integration and Compatibility

The AR7716 is designed exclusively for use with the APC NetShelter SX enclosure series. It is not a universal fit. Before ordering, confirm your cabinet's width (750mm) and depth (1200mm). NetShelter SX cabinets ship in 600mm and 750mm widths and in multiple depths — the wrong dimension means the panel won't seat. Check your existing cabinet's model number against APC's NetShelter SX compatibility matrix or cross-reference with your rack enclosure accessories documentation.

No tools or secondary hardware are described in the available evidence beyond the panel itself. Consult APC's installation guide for the NetShelter SX roof accessory family for torque specs and mounting sequence if your cabinet is in a raised-floor environment with active airflow management.

Frequently Asked Questions

Q: What rack enclosure is the AR7716 compatible with?

A: The AR7716 is designed specifically for the APC NetShelter SX series, 750mm wide by 1200mm deep cabinets. It is not compatible with 600mm-wide or shallower NetShelter SX variants.

Q: Is the AR7716 RoHS compliant?

A: Yes. The AR7716 is RoHS compliant, meeting EU Restriction of Hazardous Substances requirements.

Q: What color is the AR7716?

A: Black, matching the standard APC NetShelter SX cabinet finish.

Q: What is the primary dimension of the AR7716?

A: The AR7716 measures 29.01 inches across its principal dimension, sized to fit the 750mm wide x 1200mm deep NetShelter SX footprint.

Q: Does the AR7716 include mounting hardware?

A: Package contents are not fully documented in available evidence. Consult the APC NetShelter SX accessory installation documentation for hardware requirements specific to your cabinet revision.

Karl Wilson

The AR7716 is a dimension-specific accessory — and that specificity is the whole point. If you're building out or expanding a NetShelter SX 750mm x 1200mm cabinet and need a roof panel, this is the correct part. The 29.01-inch principal dimension is what locks it to that one enclosure footprint, so double-check your cabinet's width and depth before the order goes in.

Technical Highlights:

• RoHS Compliance: Verified RoHS conformance means this panel clears procurement hurdles at facilities with environmental compliance mandates — no re-sourcing required for regulated deployments.
• Enclosure-Specific Fit (750mm x 1200mm): Designed to seat flush on the NetShelter SX 750mm x 1200mm frame — no shimming, no modification. Wrong cabinet dimensions mean it won't fit; right dimensions mean it drops in cleanly.
• Black Finish: Matches the NetShelter SX standard finish, keeping cabinet rows visually uniform — a minor but real consideration in customer-visible NOCs and data rooms where aesthetics reflect on the installation.

Deployment Considerations:

• Verify your cabinet model number explicitly before ordering — APC NetShelter SX ships in both 600mm and 750mm widths, and multiple depths. The AR7716 covers only the 750mm x 1200mm variant.
• Package contents (mounting hardware, fasteners) are not documented in available specifications — confirm with APC's NetShelter SX accessory installation guide before beginning work, particularly on raised-floor builds with active airflow requirements.

The AR7716 is the right call for IT integrators closing out a NetShelter SX 750mm x 1200mm cabinet build in a network operations center, IDF closet, or colocation cage where dust management and physical cable containment at the top of the rack are part of the installation standard.
