APC by Schneider Electric AR722500 NetShelter SV Roof Panel — 600mm Wide × 1200mm Deep

Overview

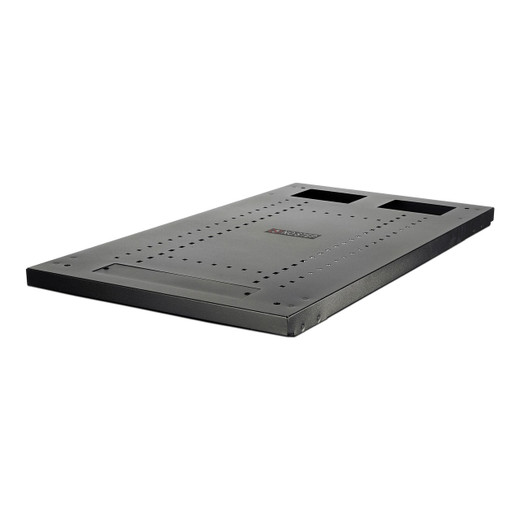

The AR722500 is the matching roof panel for APC's NetShelter SV open-frame and enclosed cabinet line, sized specifically for the 600mm-wide × 1200mm-deep enclosure footprint. If you're completing a new cabinet build or replacing a damaged top panel, this is the correct OEM roof component for that frame size — installing a mismatched panel leaves cable entry gaps and compromises the enclosure's airflow management and physical security posture.

At 21.82 lbs, the AR722500 is a structural panel designed to seat precisely on the NetShelter SV frame rails. Correct fitment matters here: APC produces roof panels across multiple width and depth combinations, and substituting an adjacent size means misaligned mounting points and an open perimeter that defeats brush-strip sealing and blanking.

Key Features

• Exact-fit for 600mm × 1200mm NetShelter SV cabinets: The AR722500 is dimensionally matched to the SV frame's top rail spacing — no field modification, no shimming. If your cabinet is a different depth or width variant, verify the model number before ordering; APC's roof panel lineup covers multiple footprint combinations and the differences are not interchangeable.
• OEM panel construction at 21.82 lbs: The weight reflects a solid steel panel assembly, consistent with APC's cabinet-grade construction standards. Aftermarket alternatives are often lighter gauge — and you'll notice the difference in rigidity when routing top-entry cable management or seating a horizontal cable tray above the cabinet.
• Maintains enclosure integrity: A properly fitted roof panel is required for effective hot/cold aisle containment. Without it, hot exhaust recirculates into the cabinet intake — a real problem in high-density rows where even modest recirculation raises inlet temps and triggers thermal throttling on compute gear.
• Pairs with NetShelter SV rack enclosure accessories: Compatible brush-strip inserts, blanking panels, and top-mount PDU brackets are designed around the assembled SV cabinet — the roof panel is the final structural element that makes those accessories functional.

Integration & Compatibility

The AR722500 is designed for the NetShelter SV cabinet family at the 600mm-wide × 1200mm-deep specification. Before ordering, confirm your cabinet's exact width and depth against APC's enclosure model number — SV models are available in 600mm and 750mm widths and in 1070mm and 1200mm depths; each combination has a dedicated roof SKU. This panel does not fit NetShelter SX, VX, or CX cabinets.

For data center planners integrating APC power distribution and cable management into a full rack build, the roof panel is typically the last structural component installed after PDUs, vertical cable managers, and side panels are in place.

Frequently Asked Questions

Q: What cabinet models is the AR722500 compatible with?

A: The AR722500 is the roof panel for APC NetShelter SV cabinets with a 600mm width and 1200mm depth. It is not compatible with other NetShelter families (SX, VX, CX) or different SV dimension variants.

Q: Does the AR722500 include mounting hardware?

A: Package contents are not confirmed in available evidence. Contact pre-sales to verify what hardware ships with the panel before ordering if you need specific fasteners on-site at installation.

Q: How does the AR722500 contribute to airflow management?

A: A properly fitted roof panel closes the top of the enclosure, preventing hot exhaust air from recirculating back into the cabinet's front intake. This is especially relevant in high-density deployments where even modest hot-air recirculation can elevate intake temperatures and cause thermal throttling.

Q: Is the AR722500 compatible with top-entry cable management accessories?

A: The NetShelter SV roof panel provides the structural base for top-mounted cable management. Verify specific accessory compatibility with APC's cabinet accessory configurator using your full cabinet model number.

Karl Wilson

The AR722500 is one of those components that gets overlooked until it's missing — and when it's missing on a live cabinet in a production row, you feel it immediately in your airflow numbers. At 21.82 lbs, this is a solid-steel OEM roof panel, not a stamped aftermarket substitute, and the fit on a 600mm × 1200mm NetShelter SV frame is exact.

Technical Highlights:

• Exact dimensional fit — 600mm × 1200mm: APC produces roof panels for every SV footprint variant; the AR722500 is specific to this one. Wrong-size panels leave a perimeter gap that breaks brush-strip sealing and creates a recirculation path.
• 21.82 lb panel weight: Consistent with APC's cabinet-grade steel construction. Heavier than aftermarket alternatives — which matters when you're mounting a horizontal cable tray or routing top-entry conduit above the enclosure.
• Enclosure closure for containment integrity: Without a properly seated roof panel, hot exhaust from rear-mounted equipment bypasses the intended airflow path and recirculates into front intakes — a thermal management failure that shows up as elevated inlet temps in your DCIM data.

Deployment Considerations:

• Confirm your cabinet's exact model number for width and depth before ordering — the SV line spans 600mm and 750mm widths and 1070mm and 1200mm depths, each with a dedicated roof SKU. A one-size-off order means a return, and that stalls your rack build.
• This panel is specific to NetShelter SV. It does not fit SX, VX, or CX enclosures, even if the external footprint looks similar.

Right fit for any SV 600 × 1200 cabinet completion or field replacement in a production data center or network room where airflow integrity and physical enclosure closure are non-negotiable.
