APC by Schneider Electric Netshelter SX 42U 1200 Split Feed Through Side Panels Black QTY 2 - AR7313

APC by Schneider Electric AR7313 NetShelter SX 42U Split Feed-Through Side Panels Black Qty 2

Overview

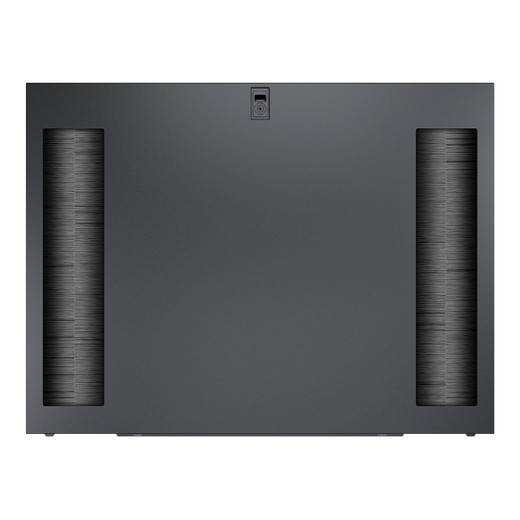

The AR7313 delivers a matched pair of split feed-through side panels designed for the APC NetShelter SX 42U 1200mm-deep enclosure family. At 32.76 inches (83.2 cm) in finished depth and 46.3 lb (21 kg) per pair, these panels are built to close out the sides of your enclosure while preserving feed-through cable access — a practical requirement in dense rack rows where inter-rack cabling runs horizontally between adjacent cabinets. The split design means you can remove each half independently, so access to side-routed cables does not require pulling an entire panel in a tight row. Black finish matches the standard APC by Schneider Electric NetShelter SX aesthetic.

Key Features

• Split Panel Construction: Each panel separates into two halves, letting you open one side at a time in confined row configurations — no need to break adjacent rack clearance to manage cabling.
• Feed-Through Design: Purpose-built openings allow horizontal cable runs to pass directly through the panel, which keeps inter-rack fiber, copper, and power feeds organized without forcing them over the top or under the floor tile.
• 46.3 lb Pair Weight (21 kg): Substantial panel mass reflects a steel-gauge construction suited to network cabinets and enclosures in production data center and IDF environments — not a light-duty aftermarket fit.
• 42U / 1200mm Depth Match: Dimensioned specifically for the NetShelter SX 42U 1200mm enclosure footprint. Verify your cabinet depth before ordering — the 600mm and 750mm deep variants use different panel SKUs.
• Factory-New Genuine Panels: Supplied as a matched qty-2 set, sourced factory-new. Both panels arrive together, avoiding the lead-time mismatch that occurs when ordering singles from separate stock pools.
• Black Finish: Consistent with NetShelter SX standard color, maintaining visual uniformity across mixed-brand rows where APC enclosures are the primary cabinet.

Integration & Compatibility

The AR7313 is engineered for the APC NetShelter SX 42U enclosure with 1200mm depth. If your deployment uses NetShelter SX cabinets at 600mm or 1070mm depth, or NetShelter VX or VS families, this panel will not be a direct fit — confirm enclosure model and depth against APC's compatibility matrix before purchasing. For data center infrastructure buildouts mixing cabinet depths across a row, side panels must be specified per cabinet SKU individually. These panels do not carry power or data — they are structural enclosure accessories and require no configuration. Install with standard rack panel fasteners per the NetShelter SX installation guide. Review your cable management routing plan before mounting to confirm feed-through cutout alignment with your horizontal cable tray positions.

Frequently Asked Questions

Q: What enclosure is the AR7313 designed for?

A: The AR7313 is designed for the APC NetShelter SX 42U enclosure with 1200mm depth. It is not a universal-fit panel — confirm your cabinet depth before ordering.

Q: How many panels are included in the AR7313?

A: The AR7313 includes two (2) side panels as a matched set — one for each side of the enclosure.

Q: What does
