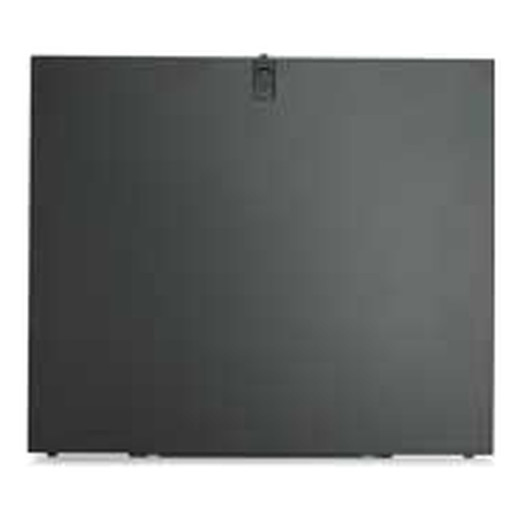

APC by Schneider Electric Netshelter SX 42U 1070MM Deep Split Side Panels Black QTY 2 - AR7301

APC by Schneider Electric AR7301 NetShelter SX 42U Split Side Panels

Overview

The AR7301 delivers a matched pair of split side panels designed for the APC by Schneider Electric NetShelter SX 42U enclosure series. Finished in black and sized at 965 x 822 mm per panel (13 mm thin), these panels close off the sides of your open-frame or partially configured rack without adding meaningful bulk — a practical necessity when your deployment requires containment, cable management tidiness, or simply a clean finished look in a data center or server room.

If you are building out a rack enclosure environment where airflow management and physical security both matter, side panels are frequently the last item on the BOM and the first thing that causes a call-back when they are missing. The AR7301 addresses that gap with panels that are factory-matched to the NetShelter SX form factor, meaning no field modification and no guesswork on fitment.

Key Features

• Matched pair (quantity 2): Both left and right panels ship together as a single SKU — eliminates the ordering error of buying a single panel and discovering the enclosure is open on one side at installation time.
• Split-panel design: The split configuration allows partial panel removal for cable access or maintenance without pulling the entire side — practical in live environments where you cannot fully power down adjacent equipment.
• 965 x 822 mm panel face (13 mm depth): Dimensioned for the NetShelter SX 42U 1070 mm deep footprint. Confirm your enclosure depth before ordering — NetShelter SX ships in multiple depth configurations and panel compatibility is depth-specific.
• Black finish: Matches the standard NetShelter SX black powder-coat finish, maintaining a consistent appearance in mixed-enclosure rows.
• Commercial-grade construction: Sourced as a genuine factory component, not an aftermarket substitute — important when you are maintaining a uniform rack environment across a managed network infrastructure deployment.

Integration and Compatibility

The AR7301 is designed for the APC NetShelter SX 42U enclosure family with 1070 mm internal depth. Verify your enclosure model number against APC's compatibility documentation before procurement — NetShelter SX enclosures with different depth ratings (600 mm, 750 mm) use different panel part numbers. These panels are not cross-compatible with NetShelter VX, NetShelter WX, or third-party rack enclosures. If you are outfitting a rack room with mixed enclosure depths, confirm per-unit before ordering in bulk.

Frequently Asked Questions

Q: What enclosure is the AR7301 designed for?

A: The AR7301 is designed for the APC NetShelter SX 42U enclosure with 1070 mm internal depth. It is not compatible with other NetShelter SX depth configurations or other enclosure families.

Q: Does the AR7301 come as a single panel or a pair?

A: The AR7301 ships as a quantity of 2 — a matched left and right panel pair for a single enclosure.

Q: What are the panel dimensions?

A: Each panel measures 965 mm wide x 822 mm tall x 13 mm deep (approximately 38.0 x 32.4 x 0.5 inches).

Q: Will the AR7301 fit a NetShelter SX 42U with 600 mm or 750 mm depth?

A: No. The AR7301 is dimensioned for the 1070 mm deep variant. APC offers separate panel part numbers for other depth configurations — verify against the APC compatibility matrix before ordering.

Q: Can these panels be partially removed without dismounting the enclosure?

A: Yes. The split-panel design allows each panel half to be removed independently, which is useful for cable routing or maintenance access in live rack environments.

Ted Perry

The AR7301 is one of those components that does not make a BOM look interesting but causes real problems when it is missing. At 13 mm per panel and 965 x 822 mm face dimensions, this pair fits flush against the NetShelter SX 42U 1070 mm enclosure without creating a gap or requiring field trimming — which matters when you are finishing a rack row that needs consistent airflow boundaries for hot-aisle/cold-aisle containment.

Technical Highlights:

• Split-panel construction: Each panel separates into independent halves, so field technicians can pull one half for cable work without breaking the enclosure seal on the opposite side — less downtime in live environments.
• Depth-matched at 1070 mm: The panel width of 965 mm is sized specifically for the 1070 mm deep NetShelter SX footprint. Ordering the wrong panel depth means gaps at the front or rear rail — confirm your enclosure's internal depth before committing to bulk quantities.
• Quantity 2 per SKU: Ships as a left/right pair, which eliminates the half-done enclosure problem common when side panels are ordered line-item by line-item across a multi-rack project.

Deployment Considerations:

• Verify the NetShelter SX enclosure model depth before ordering — APC sells NetShelter SX in 600 mm, 750 mm, and 1070 mm depth configurations, each with its own panel part number. The AR7301 is 1070 mm only.
• These panels do not include locking mechanisms or vented options — if your security policy requires locking side access or if your thermal design relies on controlled side airflow, review whether a different panel variant is required before procurement.

For data center integrators finishing out a NetShelter SX 42U row in a structured cabling environment — particularly where hot-aisle containment or physical access control to rack interiors is part of the facility spec — the AR7301 is the correct factory-matched component to close out the enclosure build cleanly.
