APC by Schneider Electric Netshelter SX 12U 1070MM Deep Side Panel (qty 1) - AR7362

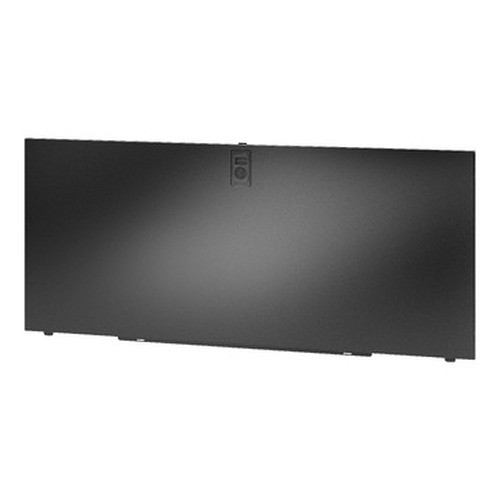

APC by Schneider Electric AR7362 NetShelter SX 12U Side Panel

Overview

The AR7362 is a replacement or supplemental side panel for APC NetShelter SX 12U open-frame rack enclosures. Sold individually (qty 1), it restores enclosure integrity after physical expansion, equipment relocation, or panel damage — without requiring a full enclosure replacement. At 545 mm wide × 1065 mm tall × 120 mm deep, it matches the dimensional profile of the NetShelter SX 12U series precisely, so fitment is straightforward and no field modification is needed. The panel ships in black and carries APC by Schneider Electric's RoHS compliance certification, keeping your deployment aligned with EU hazardous-substance directives. If you're managing a rack enclosure refresh or adding enclosures to an existing row, ordering side panels individually avoids the cost of sourcing a full enclosure when only panel coverage is needed.

Compatibility

The AR7362 is designed exclusively for the NetShelter SX 12U enclosure family. Verify your enclosure model before ordering — NetShelter SX units in other U-heights (18U, 24U, 42U) use dimensionally different panels and are not interchangeable. The 545 mm width aligns with the standard NetShelter SX footprint; non-SX enclosures are not compatible.

Installation Notes

Panel weight is 7.5 kg — plan accordingly when shipping or handling on site. No tools beyond standard rack hardware are required for installation. Package dimensions (1065 × 545 × 120 mm) match the panel itself, so verify receiving door clearances if delivery access is constrained.

Frequently Asked Questions

Q: What rack enclosure is the AR7362 compatible with?

A: The AR7362 is designed for the APC NetShelter SX 12U enclosure series only. It is not interchangeable with other U-height NetShelter SX models or non-SX APC enclosures.

Q: Is the AR7362 sold as a pair or individually?

A: The AR7362 is sold individually — qty 1 per order. If you need panels for both sides of an enclosure, order two units.

Q: Is the AR7362 RoHS compliant?

A: Yes. The AR7362 carries RoHS compliance certification, meeting EU Restriction of Hazardous Substances directives.

Q: What are the dimensions of the AR7362?

A: The panel measures 545 mm wide × 1065 mm tall × 120 mm deep and weighs 7.5 kg.
