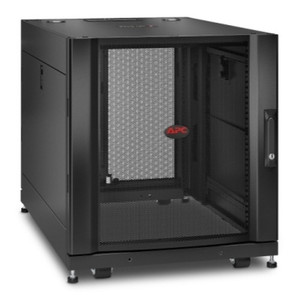

APC by Schneider Electric AR3003SP NetShelter SX 12U Freestanding Rack Enclosure
Overview
The APC by Schneider Electric AR3003SP is a 12U freestanding network enclosure from the NetShelter SX series — a closed-frame cabinet engineered for structured deployments where airflow control, physical security, and cable organization matter as much as what goes inside. At 600 mm wide and 900 mm deep, it fits standard 19-inch rackmount equipment without forcing a compromise between depth clearance and footprint. If you're deploying network video recorders, PoE switches, patch panels, or edge compute nodes in a wiring closet, server room, or on a plant floor, the AR3003SP gives you a hardened enclosure that keeps gear organized, ventilated, and locked down.
The NetShelter SX line has long been the go-to choice for integrators and IT teams who need a rack that installs fast, accommodates a range of equipment depths, and holds up in demanding environments. The AR3003SP hits the practical midpoint: small enough for edge deployments, deep enough for full-depth 1U and 2U servers, and rated to carry up to 272 kg of installed equipment — enough to fill every U with dense hardware without worrying about structural limits.
Key Features
- 12U Capacity, 600 mm × 900 mm Footprint: Twelve rack units of usable space in a 600 mm wide by 900 mm deep frame. That's enough for an NVR, a PoE switch, a patch panel, a UPS, and still have room to grow — without occupying a full-size 42U cabinet's floor space. Right-sized for wiring closets, security head-end rooms, and distributed edge nodes.
- 272 kg Maximum Load Rating: The AR3003SP is rated to support up to 272 kg (roughly 600 lbs) of installed equipment. In practice, dense 12U deployments rarely exceed 100–150 kg, so this rating gives you structural headroom even if you pack the cabinet with high-density UPS units or storage arrays.
- Perforated Back Door with Full Removability: The rear door is perforated to promote passive airflow — hot air exhausted by equipment escapes without requiring blanking panels to redirect it. Both front and rear doors are fully removable, which matters when you're pulling cables or swapping equipment in a tight space. No partial-swing frustration during installs.
- Removable Side Panels with Key Lock: Side panels detach for lateral cable access during initial buildout, then lock in place once the installation is complete. The integrated key lock on both the main enclosure and side panels means physical access is controlled — important in shared spaces like telco rooms, retail back-of-house, or campus wiring closets where multiple trades have access.
- Adjustable Mounting Rails: Rails slide fore and aft to accommodate equipment with varying depth requirements — shallow patch panels at the front, deeper switches or servers further back. You don't need to plan the exact rail position before starting; adjust as equipment arrives.
- Cable Management Integrated: Built-in cable management provisions keep power and data runs organized from the start. Structured cabling in a 12U cabinet can get messy fast; having management built into the frame (rather than bolted on after the fact) keeps airflow lanes clear and makes future moves easier.
- Caster Wheels + Adjustable Feet: Four casters let you roll the populated cabinet into position before locking it down with adjustable leveling feet. On uneven concrete floors common in warehouses and mechanical rooms, the leveling feet prevent rocking without shimming. The combination also means you can reposition the rack without unloading it.
- IP20 Ingress Protection: IP20 means the enclosure guards against solid objects larger than 12.5 mm (fingers, tools) — appropriate for indoor controlled environments. This is not an outdoor-rated or wash-down cabinet; deploy it indoors where ambient conditions are controlled. If your application requires a sealed enclosure for dusty or wet environments, a NEMA-rated or higher-IP alternative is the correct choice.
- UL 2416 and UL 60950-1 Certified: UL 2416 is the standard for IT and telecommunications equipment racks and cabinets — it covers structural integrity and fire containment. UL 60950-1 addresses safety of IT equipment. Both certifications matter for insurance compliance, data center audits, and AHJ (Authority Having Jurisdiction) inspections. REACH compliance covers chemical substance regulations for EU deployments.
- Closed-Frame Construction: Unlike open-frame two-post racks, the NetShelter SX's closed frame contains airflow, reduces ambient dust ingress, and provides a finished appearance appropriate for customer-facing or executive-floor deployments. The black finish is consistent across the NetShelter SX product line, simplifying mixed-cabinet rows.
Integration & Compatibility
The AR3003SP is a standard 19-inch EIA-310 compatible rack enclosure. Any rackmount equipment — switches, NVRs, patch panels, UPS units, KVM drawers — that conforms to standard 19-inch rackmount dimensions will install without modification. The adjustable mounting rails accommodate equipment from shallow (1U patch panels at ~45 mm depth) to full-depth servers and appliances up to the usable internal depth the 900 mm frame provides.
For UPS and power distribution within the cabinet, APC's own rack-mount UPS units (Smart-UPS RT, Smart-UPS SRT series) and rack PDUs are dimensioned to fit NetShelter SX cabinets. Cable routing provisions align with APC's zero-U and 1U PDU form factors. If you're integrating a surveillance head-end — NVR, PoE switch, storage expansion, and management server — the 12U depth is sufficient for a complete small-to-mid system without expansion to a second cabinet.
For larger deployments requiring more rack units, APC's NetShelter SX line scales from 12U up to 48U in the same 600 mm and 750 mm widths, with consistent rail and accessory compatibility across the family. Side panels, casters, and door accessories are interchangeable within the SX series, so adding a second adjacent cabinet later doesn't require sourcing different hardware.
Frequently Asked Questions
Q: What is the maximum equipment load the AR3003SP can support?
A: The AR3003SP is rated for a maximum static load of 272 kg (approximately 600 lbs) of installed equipment. This covers even the densest 12U configurations.
Q: Is the AR3003SP suitable for outdoor or dusty industrial environments?
A: No. The AR3003SP carries an IP20 ingress protection rating, which is appropriate for clean indoor environments only. It does not provide protection against dust ingress or moisture. For harsh or outdoor environments, an enclosure with a higher IP rating (IP54 or above) or a NEMA-rated cabinet would be required.
Q: Are the mounting rails in the AR3003SP adjustable for different equipment depths?
A: Yes. The AR3003SP features adjustable mounting rails that can be repositioned fore and aft within the 900 mm deep frame to accommodate equipment of varying depths — from shallow patch panels to full-depth servers and appliances.
Q: What certifications does the AR3003SP carry?
A: The AR3003SP is certified to UL 2416 (rack and cabinet structural and fire safety standard), UL 60950-1 (IT equipment safety), and meets REACH chemical substance compliance for EU-market deployments.
Q: Can the AR3003SP be moved while populated with equipment?
A: Yes. The cabinet ships with integrated caster wheels that allow it to be rolled into position after equipment is installed. Once positioned, adjustable leveling feet lock it in place on uneven floors. This is particularly useful in warehouse or mechanical room deployments where equipment is staged before final positioning.
Q: Is physical access to the AR3003SP lockable?
A: Yes. The AR3003SP includes key locks on both the main enclosure doors and the removable side panels, providing controlled physical access to all installed equipment — front, rear, and sides.
The AR3003SP is the enclosure I spec when an integrator needs a compact, professional-grade head-end cabinet that doesn't require a dedicated server room to justify it. The 272 kg load rating is the number that often gets overlooked — at 12U you'll rarely approach it, but it tells you the frame is built to the same structural standard as APC's full-size data center cabinets, not a cost-reduced small-form variant.
Technical Highlights:
- 272 kg Static Load Capacity: In a fully loaded 12U deployment — NVR, PoE switch, UPS, patch panel — you're unlikely to exceed 80–100 kg. The 272 kg rating means the frame won't flex or rack over time, and casters won't deform under sustained load during repositioning.
- Perforated Rear Door + Removable Front/Rear Doors: Perforation on the rear door is the difference between a cabinet that manages heat passively and one that traps it. Pair this with a front-intake / rear-exhaust airflow path and you can skip dedicated cooling in most small-to-mid equipment rooms. Full door removability on both sides is a genuine time-saver during initial installs with heavy cable runs.
- UL 2416 Certification: This is the standard AHJs look for on rack enclosures during data center and telecommunications room inspections. Having it on the AR3003SP means you're not negotiating with an inspector over a non-listed enclosure — it's pre-approved for the environments where this cabinet gets deployed.
Deployment Considerations:
- The 900 mm depth accommodates most full-depth 1U and 2U servers, but confirm your deepest piece of equipment's rail-to-bezel measurement against the usable internal depth before ordering — cable management provisions at the rear consume some of that 900 mm.
- IP20 is strictly for clean indoor environments. If this cabinet will be in a manufacturing floor, parking structure, or any space with airborne particulate, you need a higher-rated enclosure. Don't treat IP20 as a partial dust shield — it isn't rated for that use case.
The AR3003SP is the right call for security system head-end buildouts in wiring closets, retail back-of-house, and small enterprise IT rooms where 12U is sufficient, floor space is at a premium, and the installation needs to look finished rather than improvised.
