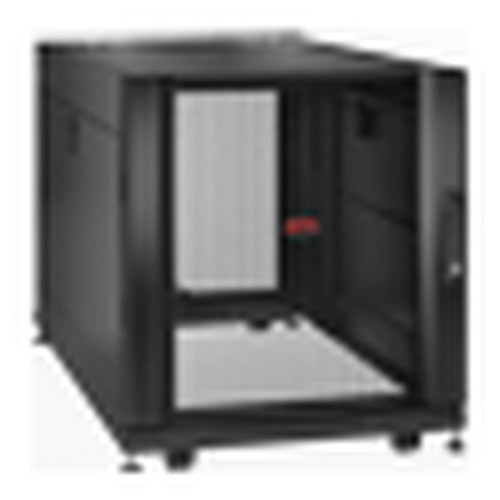

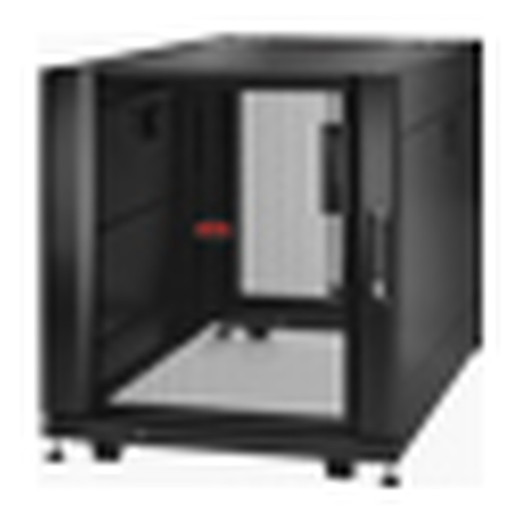

APC by Schneider Electric AR3103SP NetShelter SX 12U Rack Enclosure
Overview
The AR3103SP is APC by Schneider Electric's NetShelter SX 12U rack enclosure in a 600mm wide by 1070mm deep footprint — a compact, fixed-depth cabinet sized for edge deployments, wiring closets, and distributed IT rooms where floor space is constrained but you still need a proper enclosed rack. The 12U capacity accommodates a focused stack: a small NVR or network video recorder, a PoE switch, a patch panel, and a UPS — exactly the kind of consolidated security or network edge node common in retail branches, small offices, and remote surveillance outposts.
Key Features
- 12U Capacity in a Compact Footprint: At 600mm wide and 1070mm deep, the AR3103SP fits where a full-size 42U tower cannot. You get genuine rack-mount density — 12 units of structured, rail-mounted equipment — in a closet-friendly enclosure. For a branch-office security stack (NVR + switch + UPS), 12U is typically sufficient without paying for space you won't use.
- Black Steel (Stainless) Construction: The all-steel chassis resists the mechanical abuse of a working equipment room — door swings, cable pulls, and the occasional cart bump. The black finish is consistent with standard data center and server room aesthetics, reducing the visual mismatch in mixed-vendor environments.
- Hinged Cover Design: The hinged cover provides fast front access without removing panels or using tools, which matters during installs and service calls when every minute on-site costs money. This is a practical detail that separates a proper enclosure from a generic open-frame rack.
- APC NetShelter SX Ecosystem: As part of the APC by Schneider Electric NetShelter SX line, the AR3103SP is designed to accept APC rack PDUs, blanking panels, cable management accessories, and mounting hardware without custom fitment. If your deployment grows, the SX family scales — larger enclosures in the same line share compatible accessories.
- Purpose-Built for Edge and Distributed Sites: The 12U rack enclosure form factor is the standard choice for distributed security infrastructure — think retail loss-prevention nodes, campus edge IDF closets, and surveillance equipment rooms that need organized, lockable, ventilated housing without a full data center footprint. Pair with a managed PoE switch and network video recorder for a clean, serviceable security stack.
Integration & Compatibility
The AR3103SP accepts standard 19-inch rack-mount equipment up to 12U. The 1070mm depth accommodates most 1U and 2U servers, NVRs, and network appliances without extension rails in the majority of cases — verify your deepest device's rail-to-rear measurement against the internal usable depth before ordering. Compatible with the broader APC NetShelter SX accessory ecosystem including side panels, roof fans, and cable management. Standard rack unit spacing (EIA-310) means third-party rail kits will generally fit.
Frequently Asked Questions
Q: What equipment will fit in the AR3103SP?
A: The AR3103SP holds up to 12U of standard 19-inch rack-mount equipment. The 1070mm depth suits most 1U and 2U NVRs, switches, patch panels, and UPS units. Verify your deepest device's physical depth against the enclosure's internal usable depth before ordering.
Q: Is the AR3103SP part of a larger enclosure family?
A: Yes — it belongs to APC's NetShelter SX line, which spans multiple rack unit sizes and depths. Accessories including PDUs, blanking panels, side panels, and cable management are shared across the SX family, so you can standardize on one accessory set across sites.
Q: What color and material is the AR3103SP?
A: The enclosure is black, constructed from steel (stainless), with a hinged cover for tool-free front access.
Q: What is the AR3103SP's rack unit capacity and footprint?
A: 12U rack unit capacity, 600mm wide by 1070mm deep. This is a compact footprint suited for edge wiring closets, branch offices, and distributed equipment rooms.
Q: Does the AR3103SP ship with mounting hardware?
A: Package contents are not confirmed in available evidence. Contact the seller prior to ordering to confirm what hardware is included in the box.
When I spec a distributed security or network edge node for a branch location, the AR3103SP is the enclosure size I reach for first. The 12U capacity in a 600mm wide by 1070mm deep footprint is genuinely the right size for a consolidated security stack — NVR, PoE switch, patch panel, UPS — without oversizing the cabinet and wasting floor space in a closet that also has to hold an HVAC access panel and a mop bucket.
Technical Highlights:
- Hinged Cover: Tool-free front access matters on service calls — no panel removal, no screws to drop behind a rack. On a branch deployment where you may be the only person on-site, this saves real time.
- Steel (Stainless) Construction: The all-steel chassis on the AR3103SP handles the mechanical reality of a working closet environment — it won't flex or rack-shift when you're dressing cables under load.
- NetShelter SX Ecosystem Fit: Because the AR3103SP sits in APC's SX family, you're not hunting for compatible PDUs or blanking panels — SX accessories drop in without fitment work, which matters when you're standardizing hardware across 20 branch sites.
Deployment Considerations:
- Verify the internal usable depth against your deepest device before ordering — the 1070mm external depth does not equal usable rail-to-rear clearance, and a deep NVR or server can come up short on rail engagement.
- The 12U limit is firm — if your stack grows to include a second switch, a firewall appliance, or a console server, you will hit the ceiling fast. Size up to a larger SX enclosure at the planning stage if expansion is likely within 18 months.
The AR3103SP is the right call for a fixed, space-constrained branch security IDF — a retail loss-prevention closet, a small campus surveillance node, or a remote site edge rack where the entire active stack fits comfortably in 12U and won't need to grow.
