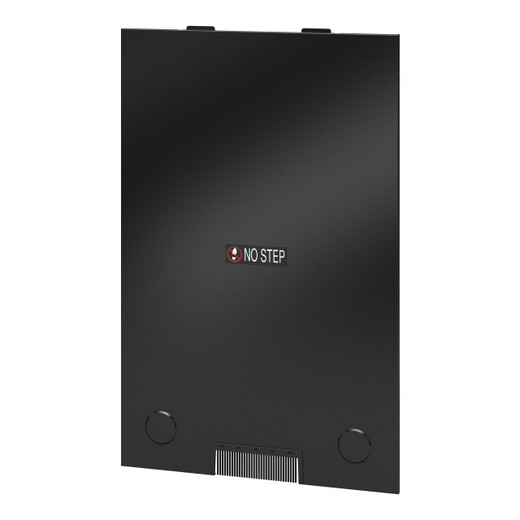

APC by Schneider Electric AR7261 NetShelter SX 12U/18U Roof Panel
Overview
The AR7261 is a factory-matched top panel designed specifically for APC NetShelter SX 12U and 18U open-frame and enclosed rack systems. If you are completing a NetShelter SX enclosure build or replacing a damaged or missing roof panel, this is the part to order — it is dimensioned and engineered to the exact NetShelter SX footprint rather than a generic aftermarket substitute. At 670mm wide and 1010mm tall (panel body), it fits the SX family's standard column spacing without modification. The black powder-coat finish matches the NetShelter SX aesthetic for a clean, uniform installation in data centers, IDF closets, and structured cabling rooms.
A mounting kit is included in the box, so you are not sourcing hardware separately before the panel goes on. The panel ships at approximately 9 kg — light enough for a single-person overhead install in most configurations, though a second set of hands is always advisable when working at height on a fully populated enclosure.
Key Features
- Purpose-fit for NetShelter SX 12U/18U: The AR7261 is dimensioned to APC's NetShelter SX column geometry — 670mm width matches the SX frame exactly, so there is no gap-filling or shimming required. Using a purpose-fit panel rather than a generic cover maintains the enclosure's structural rigidity and cable management continuity.
- 670mm Width / 1010mm Height Panel Dimensions: These measurements correspond to the SX frame's external footprint. If you are ordering for a non-standard SX variant, verify your enclosure's external width before ordering — the SX family spans several depth and width configurations.
- Mounting Kit Included: Hardware is in the box. No separate trip to the parts bin or additional order needed to complete the installation. This matters in time-pressured data center buildouts where waiting on a $4 hardware bag can delay rack commissioning.
- RoHS and REACH Compliant: Both RoHS (restriction of hazardous substances) and REACH (Registration, Evaluation, Authorisation and Restriction of Chemicals) compliance are verified for this SKU. This satisfies standard EU environmental procurement requirements and simplifies compliance documentation for enterprise and government projects operating under restricted-substance policies.
- Black Finish: Matches the standard NetShelter SX color family. Relevant in customer-facing or mixed-vendor environments where rack aesthetic is a procurement requirement — avoids the mismatched gray/black panel problem common when sourcing aftermarket parts.
- Harmonized System Code 85389099: Pre-classified for international shipment. Relevant for integrators ordering for international project deployments or duty drawback programs — the HS code is already assigned and does not require customs classification on import.
Integration & Compatibility
The AR7261 is verified compatible with the APC NetShelter SX 12U and 18U enclosure family. If you are running NetShelter SX enclosures in a mixed-depth or mixed-height configuration, confirm the specific SX model numbers in your installation against APC's enclosure accessory compatibility matrix before ordering. The 120mm panel depth (as packaged) and 1010mm panel height are the key dimensional references to cross-check against your enclosure's top opening. For deeper NetShelter SX variants or other APC enclosure families such as the NetShelter EP or NetShelter VS, a different roof panel SKU will be required — the AR7261 is specific to the 12U/18U SX line.
Integrators deploying APC networking enclosures as part of a structured cabling or IDF buildout will find this panel fits alongside other APC power and enclosure accessories in the same project BOM. For complete rack system planning, review the rack enclosures category for compatible SX frame SKUs and side panels. If you are sourcing a full enclosure rather than a replacement panel, the NetShelter SX enclosure line is the starting point.
Frequently Asked Questions
Q: Which specific APC enclosures is the AR7261 compatible with?
A: The AR7261 is designed for the APC NetShelter SX 12U and 18U enclosure family. It is not verified for other NetShelter lines (EP, VS, CX) or non-SX APC enclosures. Verify your enclosure model number against APC's accessory compatibility documentation before ordering.
Q: Does the AR7261 include mounting hardware?
A: Yes. A mounting kit is included in the package. No additional hardware purchase is required for installation.
Q: What are the panel dimensions for the AR7261?
A: The panel body measures 670mm wide and 1010mm tall, with a 120mm depth. Package dimensions are 1010mm x 670mm x 120mm. Shipped weight is approximately 9 kg.
Q: Is the AR7261 RoHS compliant?
A: Yes. The AR7261 carries both RoHS and REACH compliance certifications, satisfying standard EU restricted-substance procurement requirements.
Q: What color is the AR7261?
A: Black, matching the standard APC NetShelter SX enclosure color family.
Q: Can the AR7261 be used with NetShelter SX enclosures of other U heights?
A: No. The AR7261 is dimensioned for 12U and 18U NetShelter SX enclosures specifically. Other U heights in the SX family require a different roof panel SKU — verify against APC's enclosure accessory selector for your specific frame.
The AR7261 is one of those parts that looks trivial until you are standing in front of a half-built IDF rack needing a compliant enclosure for a client walk-through. It is a purpose-dimensioned roof panel for the NetShelter SX 12U/18U frame — 670mm wide, 1010mm tall — and the fact that it ships with the mounting kit already in the box is worth noting when you are managing a multi-rack build schedule.
Technical Highlights:
- 670mm Panel Width: Matches the NetShelter SX external column spacing directly — no shimming, no field modification. Order confidence comes from the fact that this is an APC-native accessory, not an aftermarket approximation.
- RoHS + REACH Compliance: Both certifications are listed for this SKU, which matters on government, healthcare, and EU-destined projects where restricted-substance documentation is part of the project closeout package.
- 9 kg Shipped Weight: Light enough for a single installer to handle overhead, but plan for a second person if the enclosure is fully populated and you are working in a tight IDF closet where maneuvering a panel at height gets awkward.
Deployment Considerations:
- Confirm your NetShelter SX frame is a 12U or 18U variant before ordering — the AR7261 is not cross-compatible with other U heights or other NetShelter product lines. APC's own accessory selector is the authoritative reference.
- The panel dimensions listed (1010mm height) are the panel body height, not the enclosure U-height. Do not confuse this with rack unit count when specifying to a client or entering into a project BOM.
This panel is the right call for integrators closing out a NetShelter SX 12U or 18U installation where the roof panel is missing, damaged, or was never ordered with the initial enclosure purchase — particularly on projects requiring documented RoHS and REACH compliance at handover.
