APC by Schneider Electric Netshelter SX 12U/18U Roof 900MM Deep Black - AR7260

APC by Schneider Electric AR7260 NetShelter SX 12U/18U Roof Panel 900mm Deep Black

Overview

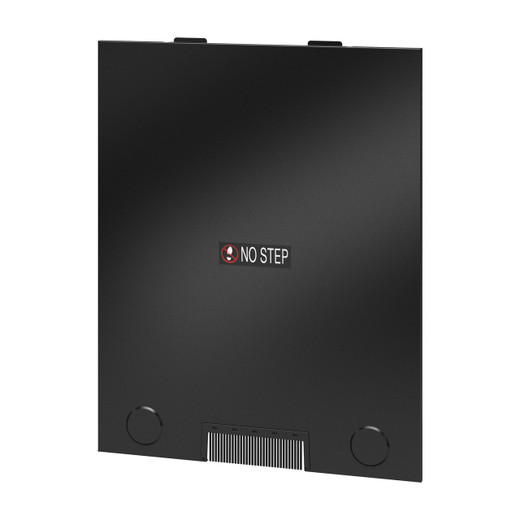

The AR7260 is a 16-gauge steel roof panel engineered specifically for APC NetShelter SX 12U and 18U open-frame enclosures with 900mm depth. If you're sealing the top of a NetShelter SX cabinet to manage airflow, route overhead cabling cleanly, or close off the enclosure for a finished rack installation, this is the part that fits without modification. At 7.5 kg and 830mm across, it's a purpose-built mechanical component — not a universal fit. Verify your enclosure model before ordering.

Key Features

• 16-Gauge Steel Construction: Heavy-gauge sheet metal provides the rigidity needed to support cable management hardware or airflow baffles mounted above the rack without flex or vibration — relevant in high-density deployments where roof-mounted PDU or cable trays add load.
• 900mm Depth Match: Dimensioned specifically for 900mm-deep NetShelter SX enclosures. Shallower 600mm or 750mm variants require a different roof SKU — this panel will not seat correctly on those frames.
• 12U/18U Compatibility: Covers both the 12U and 18U height variants of the SX line, so a mixed-height deployment can standardize on a single roof SKU rather than stocking two separate parts.
• Grommets Included: Pre-cut grommet positions with installed grommets let you route power, fiber, or copper cabling through the roof without exposing bare steel edges that could damage jacket insulation over time.
• Mounting Hardware Included: Fasteners and brackets ship in the box, so installation doesn't require a separate trip to the hardware store. The included installation guide walks through attachment to the SX frame rail.
• Black Finish: Matches the standard NetShelter SX black powder-coat finish, keeping the installation visually consistent in data centers or IDF closets where aesthetics matter to facilities teams.
• Package Dimensions (83 × 67 × 12 cm): Flat-packed at 12cm height, the panel ships without requiring oversized freight handling — standard pallet or shelf storage in a receiving dock.

Integration & Compatibility

The AR7260 is designed for the APC by Schneider Electric NetShelter SX enclosure family. It fits 12U and 18U open-frame rack enclosures with 900mm depth. If your existing installation uses a different depth (600mm or 750mm) or a different enclosure series (NetShelter EP, NetShelter CX, or third-party frames), this panel will not be the correct fit. Cross-reference your enclosure's model number against APC's SX compatibility matrix before ordering. For deployments where airflow management is the primary driver, pair this roof panel with blanking panels and a structured data center cooling approach to maximize hot/cold aisle containment effectiveness at the rack level.

What's in the Box

• 1x AR7260 16-gauge steel roof panel (Black)
• Grommets (cable routing)
• Mounting hardware
• Installation guide

Frequently Asked Questions

Q: Which NetShelter SX enclosures is the AR7260 compatible with?

A: The AR7260 is designed for APC NetShelter SX 12U and 18U enclosures with 900mm depth. It is not compatible with 600mm or 750mm depth variants or other enclosure series.

Q: Does the AR7260 include the hardware needed for installation?

A: Yes. The package includes grommets, mounting hardware, and an installation guide. No separate hardware purchase is required for standard attachment to the SX frame.

Q: Can the AR7260 be used with non-APC rack enclosures?

A: No. The AR7260 is dimensioned specifically for the NetShelter SX frame rail pattern. It is not designed for universal or third-party enclosures.

Q: What is the weight of the AR7260?

A: The AR7260 weighs 7.5 kg (approximately 16.5 lbs) and ships in a package measuring 83 × 67 × 12 cm.

Q: Is the AR7260 rack-mountable?

A: No. The AR7260 is a roof panel that mounts to the top of a NetShelter SX enclosure — it is not itself rack-mountable and does not occupy U-space inside the cabinet.

Jerry Tildsen

The AR7260 is a straightforward mechanical component, but it's the kind of part that causes real project delays when ordered wrong. The 900mm depth spec is the critical number — I've seen installs where someone ordered the 600mm roof for a 900mm cabinet, and the panel either doesn't seat on the rails or overhangs badly. Verify your NetShelter SX depth before the AR7260 ships.

Technical Highlights:

• 16-Gauge Steel: Heavier than standard sheet metal accessories — at 7.5 kg, this panel handles roof-mounted cable management weight without buckling over time.
• Grommet Positions: Grommets are included and pre-installed at the factory, so overhead fiber or copper runs don't require field-cutting or separate grommet kits.
• Flat-Pack Shipping (12cm height): The 83 × 67 × 12 cm package fits standard shelving in a staging area — no special freight handling needed even when ordering multiples for a rollout.

Deployment Considerations:

• The AR7260 covers both 12U and 18U height SX frames at 900mm depth, so a single part number handles mixed-height rows in a data center aisle — useful when standardizing BOM across a multi-rack build-out.
• This panel is not rack-mountable and does not count against U-space — but its 830mm width means it extends to the outer edges of the frame. Confirm overhead clearance in your aisle before installing in a tight ceiling environment.

The AR7260 is the right call on any NetShelter SX 12U/18U 900mm build where you need a finished, cable-ready roof with no field fabrication — particularly in managed data center environments where facilities teams require sealed enclosure tops for airflow and cable routing compliance.
