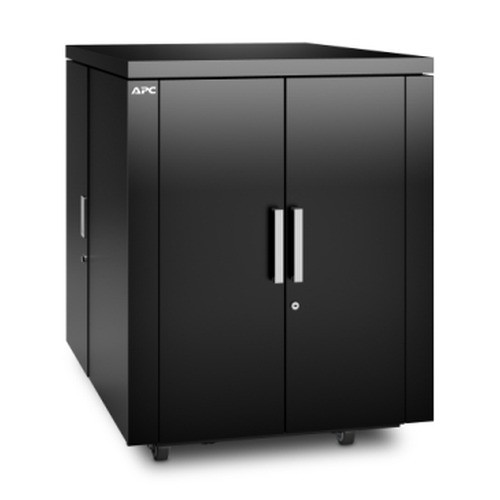

APC by Schneider Electric Netshelter CX 18U 750 MM Wide X 1130 MM - AR4018X429

APC by Schneider Electric AR4018X429 NetShelter CX 18U Freestanding Indoor Enclosure

Overview

The APC by Schneider Electric AR4018X429 is an 18U freestanding network enclosure in the NetShelter CX line — built for indoor deployments where you need a clean, office-compatible enclosure that still meets commercial-grade protection and compliance requirements. At 750 mm wide and 1130 mm deep, it gives you genuine rack depth for dense equipment populations: full-depth servers, patch panels, and UPS units fit without forcing cable management compromises. If you're deploying edge compute, centralized NVR stacks, or structured cabling in a space where appearance and NEMA 13 protection matter, the AR4018X429 is worth serious consideration against open-frame alternatives.

APC's NetShelter CX series targets IT-adjacent environments — think corporate offices, retail back-of-house, branch locations, and operations rooms where a standard open rack would be out of place. The enclosure balances airflow management with a low-profile footprint that doesn't scream "data closet."

Key Features

• 18U Usable Rack Space (1015 mm tall): 18U is enough for a dense edge stack — NVR, PoE switch, patch panel, and a 2U UPS — without the floor footprint of a 24U or 42U cabinet. Right-sized for branch and satellite deployments where you're not filling a full rack but need more than a wall-mount can offer.
• 750 mm Width: The extra 100 mm over a standard 600 mm enclosure means side panels don't fight your cable bundles. Horizontal cable managers, blanking panels, and side-mounted PDUs all have room to breathe. If you're running structured cabling plus power in the same enclosure, the 750 mm footprint pays for itself in reduced installation time.
• 1130 mm Depth for Full-Depth Equipment: Standard 1U servers and full-depth NVR appliances need 800–1000 mm of usable depth after accounting for rails, cable management, and door clearance. At 1130 mm, the AR4018X429 handles even extended-depth 1U platforms without rear-door interference — a real differentiator versus the 1000 mm options common in this class.
• NEMA 13 Rating: NEMA 13 provides protection against dust, light splashing water, and airborne contaminants — meaningful in operations areas, light manufacturing adjacency, or facilities where cleaning crews use spray equipment nearby. This is not a rated outdoor enclosure; for outdoor or harsh-environment use, you'd need NEMA 4 or 4X. But for indoor commercial and light industrial applications, NEMA 13 covers the realistic threat surface.
• Freestanding Installation: No wall attachment required, no structural assessment needed before deployment. Position the enclosure where the run makes sense — not where the studs happen to be. Relevant when you're commissioning in leased or build-out spaces where wall penetrations carry tenant-improvement restrictions.
• TAA Compliance: The AR4018X429 carries TAA (Trade Agreements Act) compliance, which is a procurement gate for federal, state, and many education contracts. If your customer or your own purchasing policy requires TAA-compliant infrastructure, this enclosure clears that requirement without a sourcing workaround.
• RoHS and REACH Compliance: Both RoHS and REACH compliance are confirmed for this SKU — relevant for enterprise sustainability reporting, EU deployments, and any customer with environmental procurement standards baked into their vendor contracts.
• EIA Standard Rail Spacing: EIA-310 rack rail compliance means standard 1U/2U/4U equipment mounts without adapter kits. Every major NVR, switch, and UPS vendor ships to EIA spec — the AR4018X429 works with all of them out of the box.

Integration & Compatibility

The AR4018X429 accepts any EIA-310-compliant rack equipment — the industry standard that covers Axis, Hanwha, Milestone-certified NVR appliances, Cisco and Ubiquiti switching, APC rack PDUs and UPS units, and structured cabling patch panels. The 750 mm width accommodates wider chassis formats that won't fit in 600 mm enclosures, including some 2-post-style deep-mount equipment that needs side clearance.

For PoE switch and NVR deployments, the 1130 mm interior depth comfortably handles rear-mounted cable management and full-depth appliances simultaneously. If you're building out an edge IP camera infrastructure and need a centralized equipment point that can sit in a finished space, this enclosure pairs naturally with APC rack PDUs, blanking panel kits, and 1U or 2U cable managers.

Review APC's full APC by Schneider Electric catalog for compatible accessories including rack rails, PDUs, and ventilation panels designed for the NetShelter CX footprint. For guidance on designing the full edge stack, the networking infrastructure section covers switching, cabling, and power distribution components that pair with this enclosure.

Frequently Asked Questions

Q: Is the AR4018X429 suitable for outdoor installation?

A: No. The AR4018X429 is rated NEMA 13 and designed for indoor use only. NEMA 13 covers dust and incidental liquid splash in indoor commercial environments, but it is not weatherproof. For outdoor or exposed installations, a NEMA 4 or NEMA 4X enclosure is required.

Q: Does the AR4018X429 carry TAA compliance?

A: Yes. The AR4018X429 is TAA (Trade Agreements Act) compliant, making it eligible for federal, state, and education procurement contracts that require TAA-compliant products.

Q: What certifications does the AR4018X429 hold?

A: The AR4018X429 is certified to EIA rack standards and holds TAA, RoHS, and REACH compliance certifications.

Q: What equipment depth will fit inside the AR4018X429?

A: The enclosure is 1130 mm deep, which accommodates full-depth 1U and 2U servers, NVR appliances, and networking gear without rear-door interference. Standard rack equipment at 800–1000 mm depth fits comfortably with room for rear cable management.

Q: How many rack units does the AR4018X429 provide?

A: The AR4018X429 provides 18U of usable rack space within an overall enclosure height of 1015 mm.

Q: Can the AR4018X429 be wall-mounted?

A: No. The AR4018X429 is a freestanding enclosure only. It is not designed or rated for wall-mount installation. For wall-mount applications, a dedicated wall-mount enclosure in the NetShelter line would be the appropriate choice.

Marty Allison

The AR4018X429 comes up regularly in edge deployments where someone has tried to fit a full-depth NVR or a proper PoE switching stack into a 600 mm or 1000 mm enclosure and run out of room. The 1130 mm interior depth is the spec that actually matters here — most competitors in this class stop at 1000 mm, which sounds like it should be enough until you add rear cable management and a PDU, and suddenly your appliances are fighting the door.

Technical Highlights:

• 1130 mm Interior Depth: Handles full-depth 1U servers and extended-depth NVR appliances with room for rear cable routing — eliminates the forced cable-compression problem common in shallower enclosures.
• NEMA 13 Protection: Rated for indoor environments with dust and incidental liquid exposure — appropriate for operations rooms, light manufacturing adjacency, and facilities with active cleaning regimens. Not a substitute for NEMA 4/4X in exposed or outdoor applications.
• TAA + RoHS + REACH Compliance: Three compliance gates cleared in one SKU — relevant when procurement requires TAA for government contracts and environmental compliance for EU or sustainability-reporting customers simultaneously.

Deployment Considerations:

• At 157.5 kg packaged, plan your staging and installation logistics before the enclosure arrives on-site — two-person lift minimum, and verify door clearance on the install path before delivery day.
• NEMA 13 is not a substitute for NEMA 4 or 4X: if the space sees hose-down cleaning, standing water, or any outdoor exposure, this enclosure is the wrong choice regardless of how it's specified on the quote.

This enclosure is a strong fit for corporate branch offices, retail operations rooms, and edge compute deployments where a finished appearance matters, TAA compliance is a procurement requirement, and the equipment stack includes full-depth appliances that 1000 mm alternatives can't cleanly accommodate.
