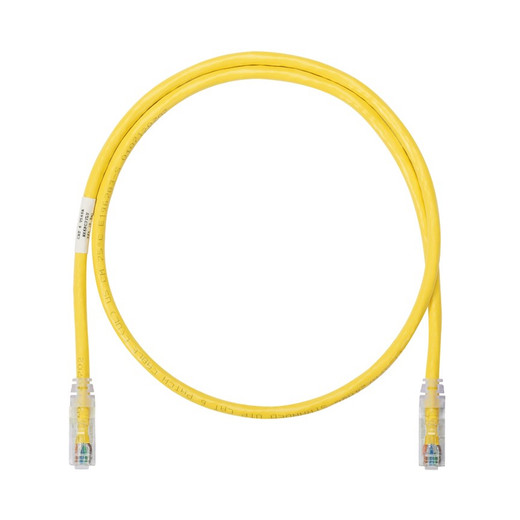

Panduit NK6APC9YL Cat6A 9ft Yellow Patch Cord

Panduit NK6APC9YL NetKey Cat6A 9ft Patch Cord

The Panduit NK6APC9YL is a 9-foot Category 6A UTP patch cord engineered for 10GBASE-T Ethernet, high-power PoE deployments, and noise-sensitive commercial environments. Built with 26 AWG stranded copper conductors and a CM/LSZH jacket, this yellow cable delivers 10 Gbps performance up to 500 MHz while meeting low-smoke safety requirements for occupied spaces. Designed for integrators running wireless backhaul, IP cameras, access points, and PoE-powered devices in data centers, telecom rooms, and structured cabling systems.

Key Features

• Category 6A performance — supports 10GBASE-T Ethernet at 10 Gbps over 100 meters
• CM/LSZH jacket — UL-listed commercial rating with low-smoke, zero-halogen fire safety
• 26 AWG stranded conductors — flexible construction for tight bends in patch panels and cable management
• Full PoE spectrum — supports 802.3af (15.4W), 802.3at (30W), and proposed 802.3bt Type 3 (60W) and Type 4 (100W) Power over Ethernet
• Yellow jacket — high-visibility color coding for VLAN segregation, security networks, or PoE circuit identification
• Exceeds TIA-568-C.2 and ISO 11801 Class EA — verified headroom over Cat6A channel and component specs

Category 6A cabling is the backbone of modern IP security and converged network infrastructure. The NK6APC9YL gives you the channel margin needed for 10 Gbps links between PoE switches and high-throughput devices — 4K/8K IP cameras, Wi-Fi 6E access points, VoIP gateways, and building automation controllers. The 26 AWG stranded design maintains flexibility after hundreds of connect/disconnect cycles, critical for patch cords that see frequent moves, adds, and changes. CM/LSZH jacketing meets commercial plenum-alternative requirements and reduces toxic fume output in fire scenarios, making it suitable for occupied spaces where traditional PVC would fail building codes.

At 9 feet, this cord is sized for typical rack-to-patch-panel connections, switch-to-switch uplinks within a rack, or short cross-connects in telecom enclosures. The UTP construction minimizes alien crosstalk in dense bundle environments — essential when you're running 48-port PoE switches at full utilization. Panduit's NetKey platform is engineered as a system: the modular plugs, cable, and termination components are tested together to exceed TIA and ISO Category 6A insertion loss, return loss, and crosstalk specs by a measurable margin. That system validation translates to fewer no-link failures, lower packet loss, and consistent PoE delivery at distance.

The NK6APC9YL supports the proposed IEEE 802.3bt Type 3 and Type 4 PoE standards — up to 100 watts delivered to the endpoint. This future-proofs your infrastructure for next-generation PTZ cameras with on-board AI processors, LED lighting controllers, and access control panels that replace traditional AC power drops with centralized PoE. The cable meets ANSI/TIA-1096-A (PoE cabling performance), meaning it's tested for the DC resistance unbalance and temperature rise limits that prevent voltage drop and overheating under sustained high-power loads. In a 48-port PoE++ switch pushing 30 watts per port, that thermal performance is the difference between stable uptime and nuisance shutdowns.

Yellow color coding is standard practice for security VLANs, guest networks, or PoE-only circuits in structured cabling documentation. The high-visibility jacket speeds troubleshooting when you're tracing links in a dark rack or crowded enclosure. cULus listing (UL 1863, CAN/CSA-C22.2) confirms third-party verification of flammability and safety performance. RoHS compliance ensures the cable is free of lead, mercury, and restricted substances — required for government, healthcare, and EU installations.
