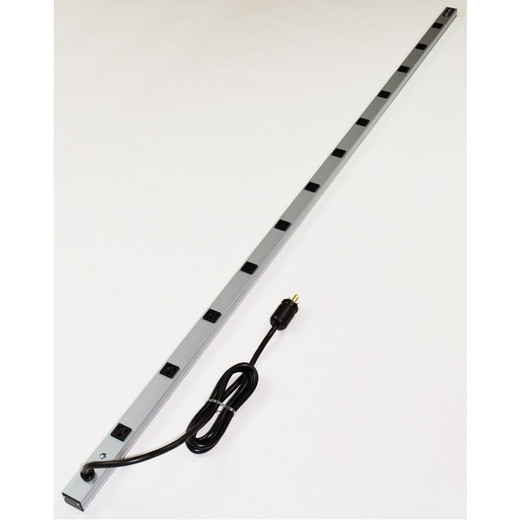

Middle Atlantic Narrow 77IN Gray W/12 5- - 7712BCS20R

Middle Atlantic 7712BCS20R Cabinet-Mount Plug-In Outlet Center

Overview

The Middle Atlantic 7712BCS20R is a cabinet-mount plug-in outlet center from the 7712BCS CabinetMate series, engineered to deliver organized, reliable AC power distribution inside equipment racks and AV/security enclosures. If you're running a multi-device rack — NVRs, switches, encoders, access control panels — consolidating power through a dedicated outlet center like this one is the cleaner, serviceable approach versus daisy-chaining consumer strips. The 7712BCS20R is rated for 20 amps, giving you the headroom to run power-hungry rack equipment without tripping a 15A circuit at an inconvenient moment.

TAA compliance makes the 7712BCS20R a straightforward choice for federal, state, and municipal projects where Trade Agreements Act sourcing is a contract requirement — no workarounds, no procurement exceptions needed.

Key Features

• 20-Amp Rating: A 20A outlet center paired with a 20A dedicated circuit means you're not leaving headroom on the table. Most rack deployments running NVRs, managed switches, and access control gear will hit 12–16A under load — the 7712BCS20R keeps you comfortably below the 80% continuous-load threshold without requiring a panel upgrade.
• 6 ft (1.8 m) Cord: The 6-foot cord gives you enough slack to route cleanly to a wall outlet or PDU without straining the connection — practical in standard 19-inch rack bays where the nearest receptacle is rarely directly behind the unit. Less cord management headache at installation time.
• TAA Compliant: Verified TAA compliance on the 7712BCS20R means this unit qualifies for GSA schedule purchases and government-funded security projects subject to Trade Agreements Act requirements. If your integrator checklist includes a TAA line item, this box is checked at the product level — not at the workaround level.
• CabinetMate Series Design: Designed specifically for Middle Atlantic rack and cabinet enclosures, the 7712BCS20R integrates with the broader Middle Atlantic rack infrastructure lineup. Purpose-built fit means no improvised mounting, no sheet-metal modifications, and consistent cable routing across standardized deployments.
• Plug-In Installation: The plug-in outlet center approach means no hardwiring, no licensed electrician required for the unit itself (circuit provisioning aside), and straightforward swap-out if a unit fails or needs replacement during a service call.
• Commercial-Grade Power Distribution: Purpose-built for rack power distribution in commercial AV and security enclosures — not a repurposed consumer strip. The distinction matters for long-term reliability in 24/7 surveillance and access control environments where the rack never powers down.

Integration & Compatibility

The 7712BCS20R is designed as part of Middle Atlantic's CabinetMate outlet center family and integrates with Middle Atlantic rack enclosures. For larger deployments where remote monitoring or surge protection is required, review the broader rack power management options alongside this unit — a basic plug-in outlet center handles power distribution but does not provide surge suppression, UPS backup, or network-accessible monitoring on its own.

When planning circuit load for a rack using the 7712BCS20R, apply the NEC 80% continuous-load rule: a 20A circuit supports a maximum continuous draw of 16A. Audit your connected device power budgets — NVR, PoE switch, servers, and ancillary gear — before finalizing the outlet center selection. If aggregate draw approaches or exceeds 16A, consider a higher-amperage unit or split the load across two circuits. For PoE switch and NVR pairing guidance, see NVR selection considerations.

TAA-compliant sourcing also means this unit fits cleanly into procurement workflows for government and municipal security installations without requiring country-of-origin exceptions or alternate sourcing documentation.

Frequently Asked Questions

Q: Is the Middle Atlantic 7712BCS20R TAA compliant?

A: Yes. The 7712BCS20R is verified TAA (Trade Agreements Act) compliant, making it suitable for GSA schedule and government-funded projects with TAA sourcing requirements.

Q: What amperage is the 7712BCS20R rated for?

A: The 7712BCS20R is rated for 20 amps. When used on a 20A dedicated circuit, the NEC 80% continuous-load rule limits safe continuous draw to 16A — plan your rack load budget accordingly.

Q: How long is the power cord on the 7712BCS20R?

A: The cord is 6 feet (1.8 meters), providing sufficient reach for typical rack-to-wall-outlet or rack-to-PDU connections without requiring an extension.

Q: Does the 7712BCS20R require hardwiring or a licensed electrician to install?

A: No. The 7712BCS20R is a plug-in outlet center — it connects to a standard receptacle without hardwiring. Circuit provisioning (running a dedicated 20A circuit) may require a licensed electrician depending on jurisdiction, but the unit itself installs without electrical trade work.

Q: Is the 7712BCS20R designed to fit Middle Atlantic rack enclosures?

A: Yes. The 7712BCS20R is part of Middle Atlantic's CabinetMate series, engineered for integration with Middle Atlantic rack and cabinet enclosures for a purpose-built fit.

Q: Does the 7712BCS20R include surge protection or UPS functionality?

A: No. The 7712BCS20R is a plug-in outlet center providing AC power distribution only. It does not include surge suppression, over-voltage protection, or battery backup. For those features, pair it with a separate surge protector or UPS unit appropriate for your rack.

Marty Allison

The spec that matters most on the 7712BCS20R isn't the outlet count — it's the 20-amp rating combined with TAA compliance. In federal and municipal security rack builds, those two attributes together eliminate two separate procurement headaches: you're not undersizing the circuit for a rack running 24/7 NVR and switching gear, and you're not scrambling for a TAA exception letter on the power distribution line item.

Technical Highlights:

• 20-Amp Rating: Supports a 16A continuous load (NEC 80% rule) — enough headroom for NVRs, managed PoE switches, and access control hardware running simultaneously without nuisance tripping on a shared 15A circuit.
• 6 ft Cord: Practical cord length for standard rack bay-to-receptacle distances; avoids the cable-management problem of over-long cords pooling behind the rack.
• TAA Compliance: Factory-verified on the 7712BCS20R — not a post-procurement paperwork claim. Qualifies the unit for GSA schedule and federally funded installations without sourcing workarounds.

Deployment Considerations:

• Verify your dedicated circuit is 20A before specifying this unit — plugging a 20A outlet center into a 15A circuit defeats the amperage rating and creates a code-compliance issue. The plug geometry difference (20A receptacle vs. 15A) should catch this at installation, but confirm in the panel first.
• The 7712BCS20R provides power distribution only — no surge suppression, no monitoring, no UPS. In critical surveillance racks where power events could drop recording, pair this with a rack-mount UPS on the same circuit.

The 7712BCS20R is the right call for TAA-gated government security rack builds — courthouses, municipal facilities, transit hubs — where the outlet center itself needs to clear procurement review and the 20A rating gives you the load margin for a fully populated NVR-plus-switching rack without a dedicated PDU.
