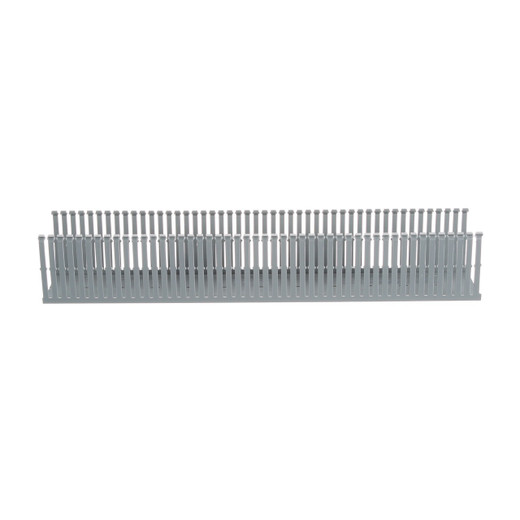

The Panduit F4X4LG6 Panduct cable duct delivers high-density wire routing for control panels, terminal blocks, and equipment racks where space is at a premium. Its narrow slot/finger design provides more routing pathways per linear foot than wide-slot alternatives, letting you maintain proper conductor spacing even when packing dozens of circuits into a single enclosure. Molded from lead-free PVC with UL94V-0 flammability rating, each 6-foot base duct measures 4.1" H × 4.25" W and ships in 6-piece cartons—enough to outfit a full rack or panel run in one order.
High-density installations—alarm panels with 40+ zones, access-control boards managing dozens of door strikes, or PoE switch backplanes feeding 48 cameras—generate cable congestion that traditional 2" or 3" duct can't manage cleanly. The F4X4LG6's narrow-finger geometry solves this by offering more egress points per foot: each slot accepts one or two conductors, and the close spacing matches the pitch of modern terminal blocks. When you need to route power in the bottom half and low-voltage signal in the top half, the score lines let you remove a horizontal finger section to create a mid-duct breakout, maintaining separation without adding a second duct run. The double-bounded slots grip cables firmly enough that you can route vertically without tie-wraps every six inches—the duct itself becomes the primary retention mechanism.
Material selection matters in panel builds that sit in unconditioned spaces or near heat-generating equipment. The F4X4LG6 uses lead-free rigid PVC rated for continuous operation at 50°C, with a V-0 flammability classification that self-extinguishes within 10 seconds of ignition—critical for UL508A industrial control panel listings and NEC 110.3(B) compliance. The light gray finish matches standard panel interiors and won't yellow under fluorescent or LED worklight exposure. Each duct base includes factory-punched mounting holes on 1-inch centers; pair with #8 screws or push-mount anchors depending on your panel material. Covers (sold separately, order Panduit F4X4LG6-C or equivalent) snap onto the base without tools and include their own score lines for mid-run access.
Shipping in 6-piece cartons with each duct spanning 6 feet, the F4X4LG6 is packaged for project buying—one carton covers 36 linear feet, enough for a three-door access controller or a mid-sized fire-alarm panel. UL Recognized (file E10794), CSA certified, and CE conformant for installations governed by North American or European electrical codes. When panel inspectors check wire routing and you need to demonstrate that every conductor is supported, separated, and protected from abrasion, the Panduct system's combination of narrow-slot density and snap-off flexibility gives you a code-compliant answer that's faster to install than lacing or spiral wrap.
