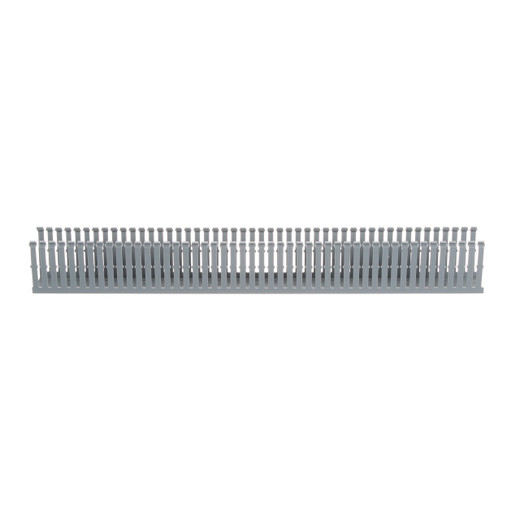

Panduit F2X3LG6 Panduct Base Wiring Duct
The Panduit F2X3LG6 Panduct base wiring duct delivers narrow slot/finger design engineered for high-density terminal block installations. This 2" x 3" (50.8mm x 76.2mm) duct ships in 6' (1.83m) lengths and features lead-free PVC construction with UL 94 V-0 flame rating. The narrow finger spacing matches component density in modern control panels, eliminating the gap-mismatch problems common with standard-pitch ducts. Upper and lower scorelines let you remove finger or sidewall sections in the field without cutting tools.
Key Features
- Narrow slot/finger design matches high-density component spacing
- Upper and lower scorelines for tool-free finger/sidewall removal
- Double restricted slot design retains wires, eliminating wire pop-out
- UL 94 V-0 flame rating, UL Recognized for continuous use up to 122°F (50°C)
- Pre-drilled mounting holes for quick installation
- Lead-free PVC construction, RoHS and BABA compliant
- Light gray finish for clean, professional appearance
The F2X3LG6's narrow finger pattern solves a recurring problem in high-density panels: when terminal blocks, PLCs, or relay banks sit close together, standard-pitch duct leaves fingers blocking access or creates wide gaps that don't retain wires. Panduit's narrow slot design spaces fingers to match typical 5mm-10mm component pitch, giving you a routing path that actually aligns with your terminals. The double restricted slot design uses inward-angled fingers that grip wires without requiring tie-wraps or bundling—drop the wire in, it stays. Upper and lower scorelines molded into the sidewalls let you snap out finger sections or reduce sidewall height in the field to clear obstructions or transition to open routing, no saw required. Lead-free PVC construction meets UL 94 V-0 flame propagation limits and carries a UL Recognized continuous-use temperature rating of 122°F (50°C), suitable for standard industrial and commercial electrical environments.
This 2" wide x 3" high profile fits control cabinet mounting rails and panel chassis where you need structured routing without consuming excessive depth. The 6-foot length reduces the number of joints in long runs, and pre-drilled mounting holes accept #6 or #8 screws for direct panel attachment or DIN rail clips. Cover sold separately—Panduit offers solid and slotted covers in matching light gray (consult Panduit's catalog for compatible cover part numbers). Deploy the F2X3LG6 in industrial automation panels, building management system controllers, access control panels, fire alarm control cabinets, and any installation where wire density and terminal spacing demand tighter finger pitch than commodity duct provides. Light gray finish maintains a professional appearance and matches standard industrial enclosure interiors.
The F2X3LG6 is UL Recognized, CE marked, RoHS compliant, and BABA compliant, meeting North American electrical code requirements and federal procurement standards. Panduit's Panduct line is widely specified in industrial and commercial electrical installations for dimensional consistency, material durability, and field-proven flame performance. When your terminal block spacing exceeds what standard 1" or 1.5" finger-pitch duct can handle, the F2X3LG6's narrow slot design delivers the wire retention and access you need without custom fabrication.
