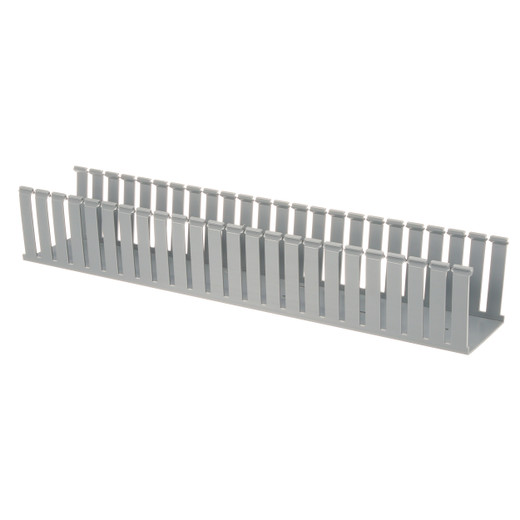

Panduit G4X4LG6 Panduct Wide Slot Base Wiring Duct

The Panduit G4X4LG6 is a 6-foot Panduct base wiring duct engineered for high-density cable management in commercial access control, CCTV head-end installations, IT closets, and datacenter deployments. Its wide slot/finger design delivers greater sidewall rigidity than standard narrow-slot ducts, accommodating variable wire bundle sizes without sagging or finger deflection under load. Measuring 4.25" W × 4.1" H internally, this duct provides 17.4 square inches of fill area—enough capacity for trunk runs feeding multiple IP camera POE drops, card reader home-runs, or mixed low-voltage bundles in integrated security systems. Light gray PVC construction matches standard rack and panel infrastructure; factory-provided mounting holes simplify installation on plywood backboards, ladder rack, or strut channel without field drilling.

Key Features

• Wide Slot/Finger Geometry: Finger and slot openings are sized for quick mid-run access and greater sidewall strength compared to narrow-slot profiles—critical when routing heavy Cat6A bundles or shielded cable assemblies.
• Upper & Lower Scorelines: Pre-scored knockouts allow installers to remove individual fingers or entire sidewall sections in the field for branch-out points, junction box feeds, or panel penetrations without cutting tools.
• UL 94 V-0 Flame Rating: Self-extinguishing PVC meets UL 94 V-0 flammability standard and carries UL Recognized continuous-use rating to 122°F (50°C), satisfying NEC Article 800 plenum-adjacent and riser pathway requirements when paired with appropriate covers.
• Lead-Free PVC Formulation: RoHS-compliant compound eliminates legacy heavy-metal plasticizers, meeting California Prop 65 and EU REACH material restrictions for public-sector and export installations.
• Factory Mounting Holes: Regularly spaced holes along the base accept #10 screws for direct attachment to wood, metal studs, or threaded channel—no template or pilot drilling required on standard 16" or 24" stud spacing.
• Sold as 6-Pack: Each package contains six 6-foot sections (36 linear feet total), optimizing freight and reducing per-foot cost on large campus retrofits or new construction runs exceeding 100 feet.
• Cover Sold Separately: Pairs with Panduit C4 or G-series covers (solid or vented) to create a fully enclosed raceway; cover latches into slot fingers without fasteners for tool-free reconfiguration during MACs.

Lead-free PVC construction ensures compliance with modern environmental and procurement standards—essential for municipal, K-12, healthcare, and federal projects subject to RoHS, BABA (Buy American Build America), and CE marking requirements. The wide slot design addresses a common pain point in high-fill installations: as bundle diameter approaches 70% duct capacity (per NEC 362.22 fill limits), narrow-slot fingers can bow outward or prevent cover seating. Panduit's G-series wide geometry maintains finger alignment and cover engagement even at maximum fill, preventing the "bulging duct" failures seen with underspec'd profiles. Upper and lower scorelines give installers surgical control over breakout points—remove a single 1" finger section for a card reader pigtail, or knock out an entire 6" sidewall panel for a large conduit stub-up, all without compromising adjacent duct integrity. This flexibility is invaluable in retrofit projects where existing infrastructure dictates non-standard branch locations.

Integrators deploy the G4X4LG6 in head-end equipment rooms to consolidate camera home-runs before they enter server racks, in IT closets to separate access control and IP camera VLANs from voice/data bundles, and along perimeter walls in warehouses where overhead cable tray isn't feasible. The 4×4 inch cross-section is the sweet spot for mid-scale projects: large enough to handle 30–50 Cat6 cables or a mix of fiber trunk, coax, and copper without exceeding 40% fill, yet compact enough to mount inside standard 24"-deep relay racks or against drywall studs without protruding into walkways. Light gray finish is the de facto standard for non-industrial environments—it blends with white/gray wall plates and rack rails while remaining distinct from black data cabling, simplifying visual tracing during troubleshooting. The 6-foot section length strikes a balance between minimizing joints (fewer covers required) and jobsite handling—two techs can easily maneuver and mount a section overhead without scaffolding, unlike unwieldy 10-foot or 12-foot lengths.

UL Recognized Component status and UL 94 V-0 flammability rating satisfy AHJ (Authority Having Jurisdiction) inspectors enforcing NEC Chapter 8 wiring method requirements, while CE and RoHS marks streamline spec approval for multinational clients maintaining consistent global standards. BABA compliance makes this duct eligible for federally funded infrastructure projects (GSA, DOT, K-12 E-Rate builds) where domestic content is mandated. Installers gain a fully traceable, code-compliant cable management solution that pairs with Panduit's ecosystem of duct covers, mounting brackets, and transition fittings—eliminating the mix-and-match compatibility gambles that plague field modifications with off-brand components.
