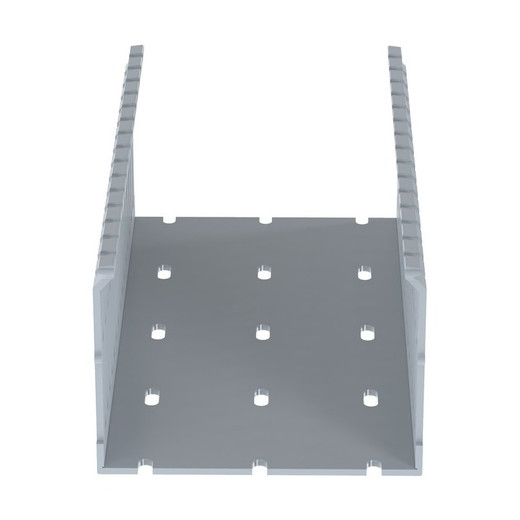

Panduit F4X2LG6 Panduct Lead-Free PVC Narrow Slot Wiring Duct
The Panduit F4X2LG6 Panduct wiring duct solves high-density wire routing challenges in equipment racks, control panels, and terminal block arrays where standard duct finger spacing can't match component pitch. Its narrow slot/finger design provides more wire exit points per linear foot than conventional 4" duct, letting you route cables directly to densely-packed terminal strips, I/O modules, and PoE injector banks without bundling multiple conductors through oversized openings. At 4" wide by 2" deep and 6 feet long, this lead-free PVC base duct handles typical rack-mount and wall-mount wire management runs while maintaining UL 94 V-0 flame rating and 122°F continuous-use temperature compliance for datacenters and equipment rooms.
Key Features
- Narrow slot/finger design matches high-density terminal block and component spacing
- 4" × 2" cross-section (101.6 mm × 50.8 mm), 6-foot length (1.83 m) for standard rack and panel runs
- Upper and lower scorelines enable tool-free finger and sidewall removal for custom breakouts
- Double restricted slot design retains wires during installation and prevents sag over time
- Lead-free PVC construction with UL 94 V-0 flame rating and UL recognized 122°F (50°C) continuous-use temperature
- Pre-drilled mounting holes for rack rail, strut, and panel attachment
- RoHS, UL, CE, and BABA compliant for government and enterprise projects
- Light gray finish coordinates with standard rack and enclosure colors
The narrow finger spacing is the critical differentiator for high-density installations. Where standard Panduct and competing 4" ducts typically space fingers 0.75"–1" apart, the F4X2LG6 uses a tighter pitch that aligns with modern terminal blocks, IP camera PoE injector arrays, and access control I/O modules. This eliminates the common workaround of forcing multiple cables through a single slot or leaving excess service loop inside the duct—both of which complicate troubleshooting and violate fill-ratio best practices. The double restricted slot design adds a retention lip that holds cables in place during rough-in, so you can route an entire panel's worth of homerun cables before dressing and binding. Upper and lower scorelines run the full 6-foot length and snap cleanly with diagonal cutters or a utility knife, letting you remove finger sections for breakout taps or drop entire sidewalls for horizontal raceway conversions without replacing the duct. Lead-free PVC meets current RoHS and California Prop 65 requirements while maintaining the same 122°F continuous-use and UL 94 V-0 flame performance as legacy formulations—critical for installations in occupied spaces and above suspended ceilings where plenum-rated cable is used but duct itself is evaluated under the fixture standard.
Typical applications include security and access control head-end racks (where 16–48 port PoE switches feed high door-count installations), datacenter cross-connect and MDA/HDA cable management (twisted-pair and fiber breakout from high-density panels), and industrial control panels routing hundreds of discrete I/O points to marshalling terminal blocks. The 4" width accommodates Cat6A patch cables with bulky boots, shielded twisted-pair, and small-gauge power wiring in the same duct run; 2" depth provides enough volume for typical 24–48 cable bundles without exceeding the 40% fill guideline. Mounting holes on 1" centers mate with standard rack rail, B-line strut, and DIN rail panel cutouts. The base duct ships without cover—Panduit offers snap-on solid covers, hinged covers, and slotted covers sold separately—so you can mix cover types along a single run based on access requirements (solid over long homerun sections, slotted or hinged at breakout points). Each carton contains six 6-foot sections; volume projects should order in carton quantities to minimize packaging waste and freight cost.
UL recognition under file E10791 and CE compliance make the F4X2LG6 suitable for installations governed by NEC Article 300.11 (support and securing), IBC Section 2702 (wire protection in accessible spaces), and European LVD and RoHS directives. BABA compliance (Build America, Buy America Act) qualifies this product for federally funded infrastructure projects including CISA security grants, GSA modernization contracts, and DOD facility upgrades where domestic-source requirements apply. The light gray finish is color-stable under fluorescent and LED lighting and won't yellow or chalk over the 20+ year service life typical of PVC duct in controlled environments—a measurable advantage over cheaper off-brand ducts using recycled or filled resins that degrade under UV and thermal cycling.
