Bosch MOUNT INDOOR UNIVERSAL WALLCEILING 10 - TC9210U

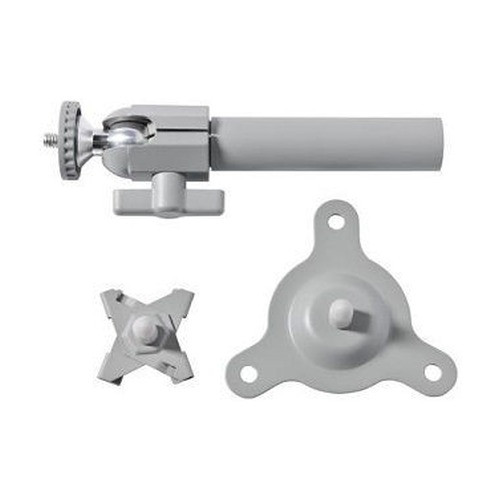

Bosch TC9210U Universal Indoor Wall/Ceiling Mount

The Bosch TC9210U is a universal indoor wall and ceiling camera mount built for integrators who need reliable, repeatable camera positioning across mixed-device deployments. With a 10 lb (4.5 kg) load capacity, full 360° pan and 180° tilt adjustment, and a standard 1/4-20 mounting bolt, the TC9210U handles everything from compact dome cameras to heavier box-camera housings without requiring model-specific hardware. If you're standardizing your mounting hardware across a commercial surveillance rollout, this is the kind of universal component that keeps your parts inventory lean and your installation workflow consistent. Explore the broader Bosch surveillance line for compatible camera families this mount is designed to support.

Key Features

• 360° Pan / 180° Tilt Adjustable Head: Full horizontal rotation combined with a 180° tilt range means you can fine-tune camera aim after rough-positioning the mount — useful in ceiling deployments where exact conduit entry points rarely align with the ideal camera angle. You're not locked into a fixed orientation at install time.
• 10 lb (4.5 kg) Maximum Load Capacity: Supports the weight range covering the majority of commercial indoor IP cameras — from lightweight mini-domes under 1 lb up to heavier box camera configurations approaching the limit. Verify your camera-plus-housing combined weight before specifying; a loaded box housing with a heavy lens can approach this ceiling.
• Standard 1/4-20 Mounting Bolt: The industry-standard thread size means this mount is mechanically compatible with a wide range of camera bases and housings — not just Bosch. For multi-brand deployments or mixed-vendor retrofits, one mount SKU can service multiple camera types without adapter hardware.
• Dual-Weight Configuration — Wall/Ceiling Flange vs. T-Bar Clip Flange: The mount ships in two usable configurations: 291 g (0.64 lb) with the wall/ceiling flange for hard-surface mounting to drywall, concrete, or tile, and 245 g (0.54 lb) with the T-bar clip flange for suspended ceiling grid installations. The T-bar clip option cuts roughly 46 g and eliminates the need to cut and patch ceiling tile in open-grid environments — a meaningful time-saver when running dozens of drops in a warehouse or open-plan office. Consult a ceiling mount camera guide to match this to your ceiling type.
• Off-White Finish: Matches standard commercial drop-ceiling and wall paint finishes, so the mount blends without requiring painting or custom finishing in typical office, retail, or healthcare environments. Not ideal for dark or specialty-finish ceilings — plan finish accordingly.
• Compact, Low-Profile Form Factor: At under 300 g assembled, the TC9210U doesn't add meaningful visual bulk. For aesthetics-sensitive lobbies or retail floors, the low-profile wall arm keeps the camera and hardware visually tight against the surface.

Integration & Compatibility

The TC9210U is designed for indoor use only — do not deploy this mount in outdoor or high-humidity environments. The 1/4-20 thread is compatible with a broad range of camera bases across multiple manufacturers, making it a practical choice for mixed-brand environments as well as Bosch security cameras in the same product family. For projects requiring outdoor mounting, look to weatherproof Bosch mount variants rated for moisture and temperature exposure. When planning a PoE switch and camera infrastructure for larger rollouts, confirm total camera weight — including the lens, housing, and any attached accessories — stays within the 4.5 kg limit before specifying this mount at scale.

Frequently Asked Questions

Q: What is the maximum load the TC9210U can support?

A: The TC9210U supports a maximum load of 4.5 kg (10 lb). Verify that your camera plus any housing or lens accessories stays within this limit before specifying the mount.

Q: Can the TC9210U be used outdoors?

A: No. The TC9210U is designed for indoor use only. For outdoor deployments, specify a Bosch mount variant rated for moisture resistance and outdoor temperature exposure.

Q: What mounting bolt does the TC9210U use?

A: The TC9210U uses a standard 1/4-20 mounting bolt, which is compatible with a wide range of camera bases across multiple manufacturers — not limited to Bosch cameras.

Q: Does the TC9210U support suspended ceiling (T-bar) installation?

A: Yes. The mount supports two flange configurations: a wall/ceiling flange for hard surfaces (291 g assembled) and a T-bar clip flange for suspended ceiling grid installations (245 g assembled). The T-bar option avoids cutting ceiling tiles in open-grid environments.

Q: How much pan and tilt adjustment does the TC9210U mounting head offer?

A: The adjustable mounting head provides 360° pan and 180° tilt, allowing precise camera aiming after the mount is fixed — useful when conduit entry points don't align perfectly with the target coverage zone.

Q: Is the TC9210U compatible with non-Bosch cameras?

A: The 1/4-20 standard bolt thread is mechanically compatible with many camera bases from multiple manufacturers. Always verify your specific camera's thread size and weight before mounting.

Jerry Tildsen

The TC9210U is the kind of hardware that doesn't get written up in project specs but quietly determines whether a camera installation looks and performs the way the design intended. The 360° pan plus 180° tilt on the adjustable head is the spec I keep coming back to — in practice, that's what lets a tech rough-mount on a stud or anchor, run cable, then dial in exact camera aim without touching the structural attachment point. On a 20-camera office rollout, that workflow flexibility compounds quickly.

Technical Highlights:

• 4.5 kg (10 lb) Load Rating: Covers the full weight envelope of standard commercial indoor cameras including box-camera-plus-housing configurations — but integrators should add up camera body, lens, and any pigtail hardware weight; a heavy CS-mount lens on a box body can eat into that budget faster than expected.
• Dual Flange Configurations: The T-bar clip flange at 245 g is the detail that matters on open-grid ceiling installs — no tile cutting, no patching, faster cycle time per drop. Hard-ceiling flange at 291 g goes to concrete or drywall with standard anchors.
• 1/4-20 Standard Bolt: The thread standard that covers the majority of commercial camera bases. In mixed-brand environments or retrofit projects, this means the TC9210U can serve as your single mount SKU across multiple camera makes — simplifies procurement and van stock.

Deployment Considerations:

• Confirm combined camera-plus-housing weight against the 4.5 kg ceiling before specifying at scale — it's easy to overlook accessory weight on PTZ or box camera builds that approach the limit.
• The off-white finish suits standard commercial environments well but will stand out against dark or specialty ceiling finishes; budget for painting or specify a finish-matched alternative on aesthetics-critical spaces like executive lobbies or high-end retail.

The TC9210U is a strong fit for standardized commercial interior rollouts — office buildings, retail chains, healthcare facilities — where consistent mounting hardware across a mixed-camera deployment reduces van stock complexity and keeps installation labor predictable across sites.
