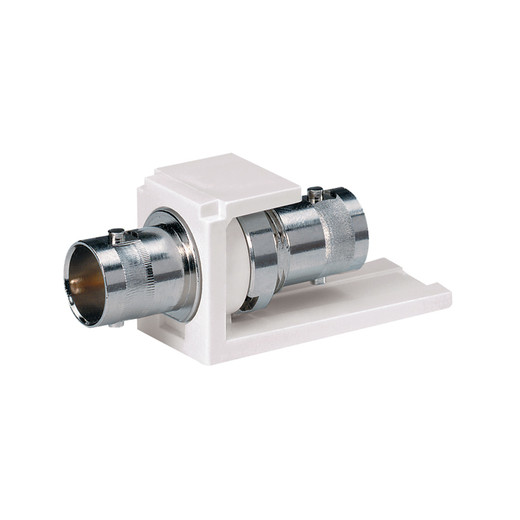

Panduit CMBA75BLY Pan-Net® 75 Ohm BNC Module

The Panduit CMBA75BLY delivers industry-standard 75 Ohm BNC connectivity in a compact modular format designed for professional A/V and video distribution systems. This coupler module integrates seamlessly into Pan-Net® structured cabling infrastructure, providing reliable coaxial signal pass-through for analog security cameras, broadcast video feeds, and RF distribution applications where impedance-matched connections are critical to signal integrity.

Key Features

75 Ohm BNC coupler optimized for video and RF applications

Pan-Net® modular design fits standard telecom faceplates and patch panels

Industry-standard BNC interface ensures broad compatibility with existing coax infrastructure

Durable ABS construction with black finish for professional installations

RoHS and CE compliant for global deployment

The 75 Ohm impedance specification is purpose-built for video and RF signal transport, distinguishing this module from 50 Ohm variants used in data networking. This makes the CMBA75BLY the correct choice for analog CCTV camera connections, SDI video distribution, and broadcast monitoring applications where impedance mismatches cause reflections and degrade picture quality. The module's compact 0.72" × 0.61" footprint allows dense packing in rack-mount patch panels and wall-mounted telecom boxes without compromising accessibility.

Pan-Net®'s modular architecture gives integrators flexibility to build mixed-media outlet assemblies combining coax, copper, and fiber terminations in a single faceplate. The CMBA75BLY snaps into any Pan-Net® frame or patch panel, creating a permanent female-to-female BNC coupler that supports quick reconfiguration without re-terminating cables. This is especially valuable in security control rooms and broadcast facilities where camera assignments and signal routing change frequently. The black housing maintains a clean, professional appearance in visible installations and matches standard black rack enclosures.

This module ships as a complete assembly with the 75 Ohm BNC coupler factory-installed, eliminating field assembly errors. The ABS housing provides impact resistance and dimensional stability across the -10°C to +60°C operating range typical in equipment rooms and plenum spaces. For integrators managing analog security camera migrations or maintaining legacy coax infrastructure alongside IP systems, the CMBA75BLY offers a structured, standards-compliant interconnect solution that simplifies moves, adds, and changes while preserving video signal quality.
