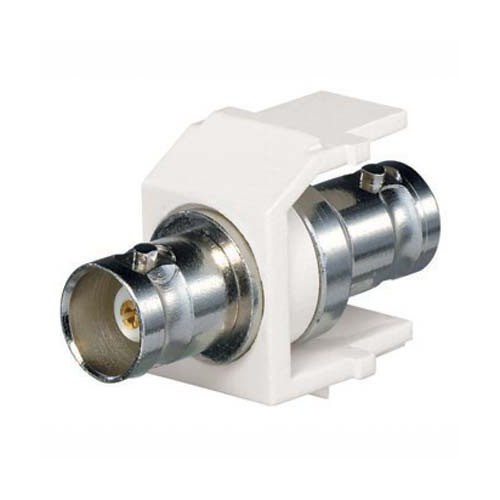

Panduit NKBNCMIGY NetKey BNC Module
The Panduit NKBNCMIGY delivers professional-grade 50-ohm coaxial connectivity in the NetKey keystone platform. Built around an industry-standard BNC bulkhead coupler, this module drops into any keystone-compatible patch panel, surface-mount box, or wall plate—giving you standardized BNC termination points wherever your analog video, RF distribution, or instrumentation runs need them. International Gray finish matches neutral rack environments and integrates cleanly into mixed-media faceplates.
Key Features
- 50-ohm impedance matched for SDI video, RF distribution, and instrumentation
- Industry-standard BNC bulkhead coupler in keystone form factor
- Fits all keystone patch panels, wall plates, and surface boxes
- International Gray housing for consistent aesthetics
- RoHS compliant construction
- Compact 0.86 in H × 0.64 in W footprint
Security integrators working with hybrid NVR systems, legacy coax infrastructure, or SDI video transport rely on keystone BNC modules to bring structured termination discipline to 50-ohm and 75-ohm coax runs. The NKBNCMIGY uses a 50-ohm bulkhead coupler—the right choice for applications where impedance matching is critical. This includes Serial Digital Interface (SDI) video transport, antenna distribution systems, test equipment patching, and any environment where you're coupling 50-ohm coax to 50-ohm coax. If you're working with standard analog CCTV on RG59 or RG6, confirm your system's impedance specification first; most analog video systems run 75-ohm, which requires a 75-ohm coupler for proper termination and minimal signal reflection.
The keystone form factor is the same mechanical standard used for RJ45 jacks, fiber couplers, HDMI pass-throughs, and USB modules. That commonality lets you build mixed-media patch panels and wall plates using a single faceplate or panel chassis—coax, Ethernet, HDMI, and fiber all terminating in the same rack unit or wall box. Snap the module into any standard keystone opening; the retention tabs lock it in place without tools. The bulkhead coupler inside is a female-to-female BNC barrel—plug a male BNC cable into either side and you have a clean mechanical connection with no solder, no crimp, and no field assembly beyond the cable's own BNC connector. This makes moves, adds, and changes straightforward: pull the cable, swap the module if needed, reconnect.
Dimensions conform to the keystone module specification: 21.8 mm (0.86 in) high by 16.3 mm (0.64 in) wide. The International Gray finish is neutral enough to blend into most rack environments and matches Panduit's broader NetKey line for visual consistency across your structured cabling install. Ships as a single module; carton quantity is 10 for stocking or multi-drop projects. RoHS compliant per current EU directives, suitable for projects with environmental procurement requirements, cross-border installations subject to RoHS enforcement, or any spec that calls out restricted-substance compliance in passive components.
