Panduit CMEB12-2S-C300 Non-Drill Edge Clip w/ Tie

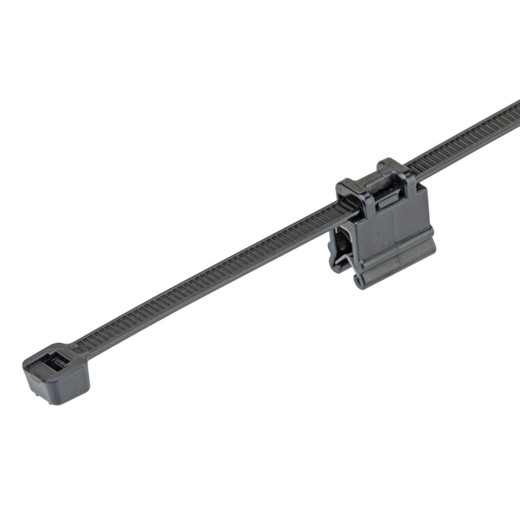

Panduit CMEB12-2S-C300 Edge Clip with Integrated Cable Tie Mount

The Panduit CMEB12-2S-C300 edge clip delivers non-destructive cable routing for thin-edge panels in mobile, industrial, and outdoor applications. Pre-assembled with an integral tie mount, this black nylon clamp snaps onto edges 0.7–3mm thick without drilling holes or applying adhesive, enabling installers to secure and route cables perpendicular to the mounting surface in seconds. UV-stabilized PA 6.6 construction withstands engine-compartment heat, direct sunlight, and temperature cycling across automotive, rail, heavy equipment, truck, and solar PV installations where adhesive-backed mounts fail and drilling compromises structural integrity or voids equipment warranties.

Key Features

• Tool-free edge mounting: Spring-clip mechanism grips 0.028–0.118 in (0.7–3mm) panel edges securely without fasteners, adhesive, or penetrations
• Pre-assembled tie mount: Integrated saddle accepts Panduit cable ties for perpendicular or offset bundle routing relative to the mounting edge
• UV and high-temperature rated: PA 6.6 (nylon 6.6) material withstands prolonged UV exposure and elevated temperatures common in outdoor and under-hood environments
• Bulk packaging: Ships 100 pieces per package, 500 per carton, for fleet retrofits and production-line integration
• RoHS compliant: Meets EU Directive 2011/65/EU restricting hazardous substances in electrical and electronic equipment

Molded from black nylon 6.6 with a UL94V-2 flammability rating, the CMEB12-2S-C300 measures 15.7mm high × 9.4mm wide, providing a low-profile footprint that clears tight spaces behind instrument panels, along chassis rails, and inside equipment enclosures. The integral tie mount orients perpendicular to the edge, guiding cables away from sheet-metal edges and moving parts while maintaining bend-radius compliance for Ethernet, CAN bus, and power feeds. Unlike adhesive-backed mounts that debond under heat or vibration, the mechanical grip of the edge clip remains secure through thermal cycling and shock loads typical of mobile platforms. The black finish blends with OEM harnesses and reduces visual clutter in accessible service areas.

Installers mount the clip by spreading the jaws to clear the panel edge, then releasing to lock the spring tabs against both faces of the substrate. A cable tie threaded through the integrated saddle captures the bundle and cinches tight; the perpendicular orientation keeps wires clear of adjacent components and prevents chafing against the panel edge. The assembly accommodates a range of sheet thicknesses—from thin solar-panel frames and electronics enclosures to thicker cab panels and equipment covers—without custom brackets or shimming. In solar PV arrays, the UV-stable material survives decades of sun exposure without embrittlement; in rail and heavy equipment, the high-temperature nylon resists degradation from engine heat, hydraulic fluid mist, and diesel exhaust. The design suits both original equipment builds and field retrofits where drilling would compromise IP ratings, introduce corrosion paths, or void equipment certifications.

Competitively cross-referenced to HellermannTyton 156-01086 and other edge-mount clamps with tie posts, the CMEB12-2S-C300 provides Panduit's engineered fit and material consistency across multi-site deployments. RoHS compliance ensures suitability for EU-market vehicles, machinery, and renewable-energy systems subject to Directive 2011/65/EU. For integrators managing harness installs across truck fleets, rail cars, construction equipment, or solar farms, this edge clip eliminates the downtime and tooling complexity of drilled mounts while delivering the mechanical strength and environmental durability required for outdoor and mobile service life.
