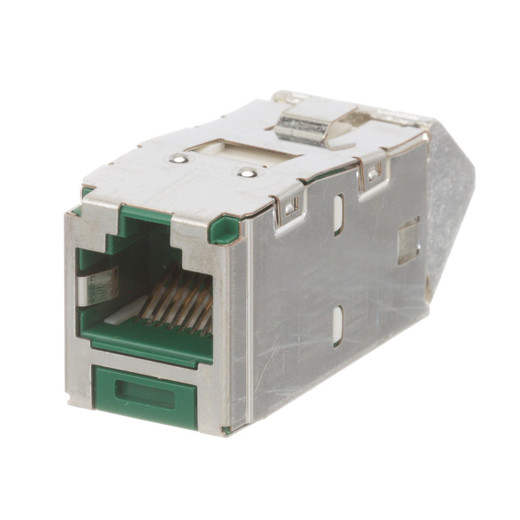

Panduit CJSUD6X88TGGRY Pan-Net® Shielded Jack Module

The Panduit CJSUD6X88TGGRY is a shielded 8-position modular jack engineered for high-performance structured cabling systems supporting 10GBASE-T and PoE++ delivery up to 90W. This Pan-Net® component exceeds ANSI/TIA-568.2-D and ISO/IEC 11801 channel requirements, providing headroom for 10 Gb/s transmission in enterprise datacenter horizontal runs, campus backbone distribution, and industrial control networks. IEEE 802.3bt Type 3 and Type 4 compliance ensures reliable power delivery to multi-radio access points, PTZ cameras with integrated heaters, LED lighting controllers, and building automation gateways. The green housing provides visual circuit identification for VLAN segmentation, voice/data separation, or facility-specific labeling schemes in high-density patch fields.

Key Features

• Exceeds ANSI/TIA-568.2-D and ISO/IEC 11801 component performance specifications for balanced twisted-pair cabling
• Shielded construction maintains alien crosstalk margins in high-density cable bundles (48+ cables with zero separation)
• IEEE 802.3bt Type 3 and Type 4 compliant – delivers PoE++ up to 90W for camera heaters, motorized lens assemblies, and access control strikes
• Rated for 2,500 connection cycles under PoE electrical load per IEC 60603-7 – 5× standard enterprise jack lifespan
• UL 2043 plenum rated for installation in air-handling spaces without conduit or additional enclosures
• Green housing color for permanent port identification (voice circuits, guest networks, IoT VLANs, or site-specific schemes)
• Tool-less IDC termination with integrated wire manager – field-terminate in under 60 seconds with zero specialized tools
• RoHS compliant, UL 1863 telecommunications wiring listed

Shielded jack modules solve two persistent problems in modern IP infrastructure: maintaining signal integrity under alien crosstalk stress and ensuring contact durability under continuous PoE electrical load. Unshielded systems experience performance degradation when cable bundles exceed 24 conductors in shared pathways – a threshold routinely exceeded in MDF/IDF consolidation projects, overhead cable tray runs, and vertical riser installations. The CJSUD6X88TGGRY’s 360° shield termination and captive ground spring maintain specification-compliant crosstalk margins even in 96-cable bundles with no physical separation, eliminating the need to over-provision conduit and pathway space or introduce costly cable management accessories. The jack’s spring-loaded contacts are rated for 2,500 insertions under 90W continuous PoE load – critical for IP camera and access control deployments where integrators repeatedly swap devices during commissioning, troubleshooting, and technology refresh cycles. Standard jacks rated for 750 cycles exhibit contact-plating wear and increased insertion force after 18–24 months in PoE environments, leading to intermittent link failures and premature jack replacement.

The CJSUD6X88TGGRY integrates into Panduit Mini-Com® faceplates, surface-mount boxes, and blank modular patch panels from single-gang residential installations to 48-port enterprise distribution frames. Tool-less termination uses a hinged cap and color-coded wire guides: strip cable jacket to the integrated stop mark (typically 1 inch), untwist pairs to the guide slots (maintaining the 6.35 mm untwist limit), seat conductors into the IDC slots, and snap the cap closed. The internal strain relief secures the cable jacket without external tie wraps, and the hinged design allows re-termination if a conductor is seated incorrectly – a significant advantage over one-time-use punch-down caps. Experienced techs average 55 seconds per jack including cable prep, dressing, and testing – roughly 40% faster than traditional 110-style termination. The captive hinged cap eliminates the risk of losing termination components during rough-in and prevents dust or drywall debris ingress before final device connection.

The green housing provides permanent visual circuit identification without adhesive labels that fade, peel, or become illegible under UV exposure or cleaning chemicals. Typical deployments include color-coding voice circuits in converged voice/data patch panels, segregating guest or IoT VLANs in access-layer switches, or implementing facility-specific identification standards (green = IP cameras, blue = access control, yellow = nurse call, white = data). The molded color remains legible through 20+ years of service and survives repeated cleaning, cable management adjustments, and environmental exposure in telecom rooms without climate control. Standard termination uses T568A or T568B wiring schemes; the color-coded wire guides support both patterns and include pair-twist indicators to minimize untwist length and maintain performance at the connector interface.

The CJSUD6X88TGGRY ships in 50-unit contractor cartons with individual anti-static bags. Each jack is UL 2043 plenum rated for installation in air-handling spaces (above drop ceilings, under raised floors, in HVAC plenums) without additional conduit or fire-rated enclosures – reducing material cost and labor on commercial retrofits. UL 1863 listing covers telecommunications circuit wiring, and RoHS compliance ensures conformance with municipal e-waste regulations and export requirements for EU/UK installations. For structured cabling deployments supporting 10GBASE-T backbone links, PoE++-powered edge devices, and high-density patch fields where installation speed, long-term contact reliability, and visual circuit identification directly impact project cost and operational uptime, the Panduit CJSUD6X88TGGRY provides third-party verified performance, extended service life under electrical load, and tool-free termination that reduces field labor and eliminates specialized equipment requirements.
