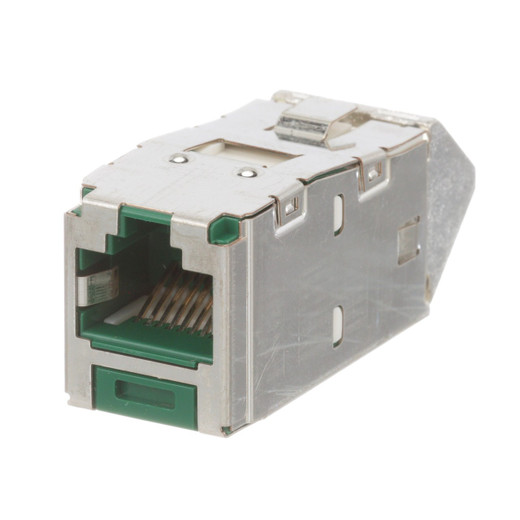

Panduit CJSUD688TGGRY Shielded Cat 6 Jack Module

Overview

The Panduit CJSUD688TGGRY is a shielded, Cat 6 RJ45 jack module designed for terminating 4-pair, 22-26 AWG twisted pair cable. Its 45° Up/Down angled design is specifically engineered to improve cable routing in confined spaces, such as behind wall plates or within patch panels, preventing sharp bends and potential signal degradation. This module is 100% factory tested to exceed industry performance standards for Category 6 connectivity. The TG style termination eliminates the need for specialized punch-down tools, streamlining the installation process. Each jack is individually serialized for traceability.

Compatibility

This jack module is fully compatible with Panduit Mini-Com Modular Patch Panels and Faceplates. It meets the channel and component requirements of ANSI/TIA-568.2-D and ISO 11801 standards for its category. It supports IEEE 802.3af, 802.3at, and 802.3bt (Type 3 and Type 4) Power over Ethernet standards, ensuring it can handle the power demands of PoE-enabled devices without performance compromise.

Installation Notes

The TG style termination is designed for tool-less termination, simplifying field installations. The module supports up to 2500 connection cycles, providing long-term reliability. Its compact dimensions (0.71" H x 0.62" W) are ideal for high-density installations where space is at a premium. The green color aids in visual identification and cable management.
