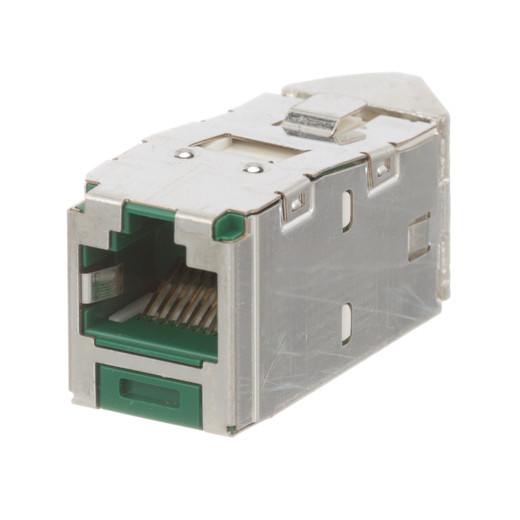

Panduit CJSLR688TGGRY Jack Module

Overview

The Panduit CJSLR688TGGRY is a Mini-Com™ STP (Shielded Twisted Pair) RJ45 jack module designed for 45° left/right angled termination. It supports Category 6 performance, enabling high-speed data transmission for demanding network infrastructure. This module is ideal for installations with limited space where cable routing to jacks requires a compact, angled solution, such as in wall plates or patch panels. The Pan-Nettie™ sub-brand signifies its inclusion in Panduit's comprehensive networking solutions.

Compatibility

This module is compatible with Panduit Mini-Com™ faceplates and modular patch panels, facilitating integration into existing or new Panduit copper-systems deployments. It is designed for terminating 4-pair, 22-26 AWG solid or stranded shielded twisted-pair cables. The module meets or exceeds ANSI/TIA-568.2-D and ISO 11801 component and channel requirements for its category, ensuring interoperability with certified network equipment.

Installation Notes

The TG-style termination on this module eliminates the need for a dedicated punch-down tool, simplifying installation. Each module is factory-tested to ensure performance compliance. It supports 2500 mating cycles with IEEE 802.3af, 802.3at, and 802.3bt (Types 3 and 4) Power over Ethernet standards, indicating durability and future-proofing for PoE-powered devices. The module is approved for UL 1863 and UL 2043, and complies with RoHS directives.
