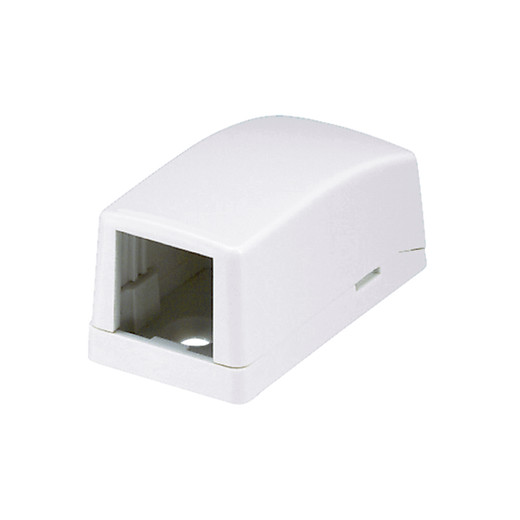

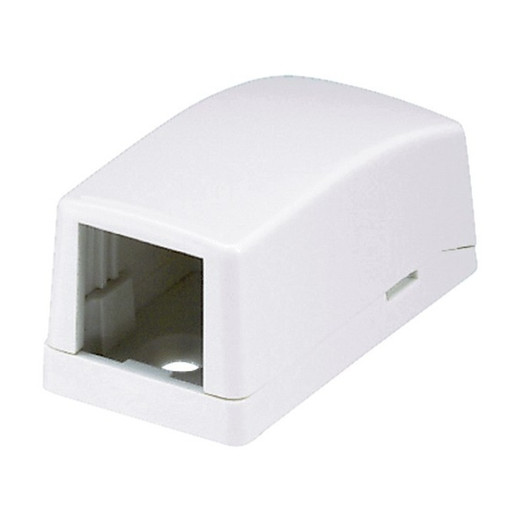

Panduit CBX1WH-A Mini-Com Single-Port Surface Mount Box

The Panduit CBX1WH-A delivers a plenum-rated surface mount solution for terminating a single Mini-Com module in retrofit, exposed-run, or solid-surface installations where recessed boxes aren't feasible. Molded from white ABS with a compact 1.89" × 1.03" × 0.92" footprint, this box accepts any Mini-Com insert—copper keystone, fiber adapter, or blank—and mounts via adhesive backing or #6 screws, letting you anchor jacks to cubicle panels, concrete columns, equipment racks, or finished millwork without cutting drywall. UL 2043 plenum certification permits installation in air-handling spaces above drop ceilings, critical for healthcare, finance, and multi-tenant commercial buildings where fire-code compliance governs every pathway component.

Key Features

• Single-port capacity for one Mini-Com module (RJ45 copper, LC/SC fiber, HDMI, USB, or blank)
• UL 2043 plenum-rated and UL 1863 Listed—approved for air-handling spaces and communications wiring
• Dual mounting: peel-and-stick adhesive or two-screw mechanical fastening for permanent anchorage
• Integrated label window on faceplate for port identification using adhesive legends or P1 label cassettes
• White ABS housing blends with standard office finishes; mates with Pan-Net and Pan-Way raceway systems
• Compact 1.89" L × 1.03" W × 0.92" H profile minimizes visual footprint on exposed surfaces
• RoHS compliant; carton quantity 10 for multi-drop projects

Surface mount boxes solve the universal retrofit problem: adding data drops to spaces with finished walls, glass partitions, modular furniture, or poured-concrete columns where fishing cable behind drywall isn't practical. The CBX1WH-A snaps onto any flat surface in seconds using its factory-applied adhesive pad, or you can drill two pilot holes for #6 screws when permanent mechanical anchorage is required—think high-vibration factory floors, public kiosks, or wall-mount IP cameras where someone might tug the cable. The elongated form factor orients the module horizontally, keeping patch cords parallel to the wall and reducing snag risk in high-traffic corridors. Pair it with Panduit's CJ688TGAW Cat 6A keystone for a 10GBASE-T drop, or load an CMFAEIW fiber adapter to extend your single-mode backbone to a wireless AP mounted fifteen feet up a column. Installers stock these by the carton because every job has three or four spots where in-wall isn't an option.

UL 2043 plenum certification matters in commercial tenant improvements and healthcare renovations, where the Authority Having Jurisdiction red-lines any non-listed component in a return-air ceiling. The CBX1WH-A passed the 20-minute flame-spread and smoke-generation test, so you can mount it on a column directly below a plenum space, run your cable up into the ceiling grid, and pass inspection without variance requests. UL 1863 communications-cable-raceway listing covers the electrical-safety side—flammability, dielectric strength, and impact resistance—giving you a defensible paper trail when the fire marshal walks the job. The label window on the faceplate accepts Panduit's LS8E or P1-series adhesive legends, letting you mark "DATA-42" or "VLAN-350" so the next tech knows what that jack does without tracing cable back to the IDF. RoHS compliance ships with every unit, satisfying LEED documentation requirements and California Prop 65 for public-sector contracts.

The CBX1WH-A cross-references to Hubbell ISB1W, Leviton 41089-1WP, Ortronics M101SMB-B-262, and ten other single-gang surface boxes in competitive specs, but the Pan-Net ecosystem advantage is real: this box mates flush with LD3 raceway, clips into CBXD dual-box assemblies for side-by-side pairs, and accepts the same Mini-Com modules installed everywhere else in your Panduit structured-cabling system. One SKU stocks your van for desk drops, camera mounts, badge-reader backhauls, and temporary event networks—no need to cross-reference three different vendors' mounting hardware mid-job. At 3.31 cost and 5.84 MSRP per unit (ten per carton), the math works for both integrator margin and end-user budget on projects where every dollar gets scrutinized.
