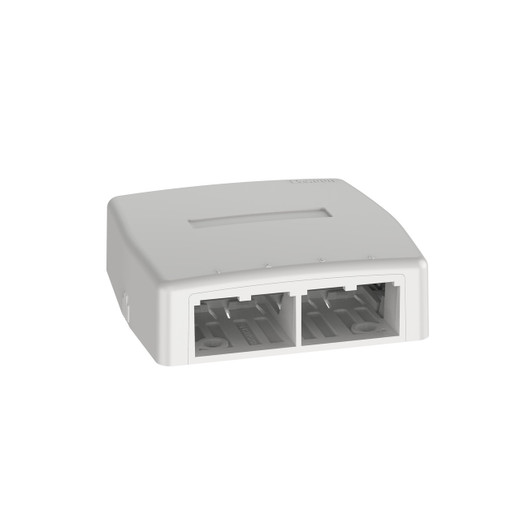

Panduit CBXQ4IW-A 4-Port Plenum Surface Mount Box

Panduit CBXQ4IW-A Mini-Com® 4-Port Surface Mount Box

The Panduit CBXQ4IW-A delivers plenum-rated surface mounting for Mini-Com modular jacks in environments where in-wall boxes aren't an option or air-handling compliance is mandatory. Whether you're retrofitting conference rooms over drop ceilings, terminating desk-side data drops in open offices, or providing flexible connectivity at datacenter edge racks, this 4-port enclosure combines UL 2043 plenum certification with tool-free access and three distinct mounting methods. The quick-release cover mechanism eliminates screw-hunting during adds/moves/changes while still offering optional screw-down security, and the integrated label pocket ensures every termination point stays documented through years of MACs.

Key Features

• UL 2043 Plenum Rated: Certified for installation in air-handling spaces above drop ceilings and below raised floors, meeting strict low-smoke and flame-spread requirements for commercial and institutional buildings.
• Quick-Release Cover with Optional Security: Tool-free snap-open access for routine adds/moves/changes; cover accepts a single screw when tamper resistance or vibration environments require positive retention.
• Triple Mounting Options: Install via adhesive tape for temporary or non-invasive deployments, #6 screws for permanent wall/furniture mounting, or optional magnetic base (sold separately) for steel surfaces and equipment racks.
• Four Mini-Com Module Ports: Accepts any combination of Panduit Mini-Com copper, fiber, A/V, or blank modules in a compact 3.7" × 3.754" × 1.181" ABS enclosure that fits tight spaces without sacrificing port density.
• Integrated Label Pocket: Front-facing recess accepts adhesive or printable labels for room numbers, jack IDs, VLAN assignments, or asset tags—critical for maintaining as-built documentation in multi-tenant or large-campus installations.
• Off-White Finish: Neutral color blends with standard commercial wall colors and office furniture, reducing visual clutter in customer-facing spaces while maintaining professional aesthetics.

The CBXQ4IW-A solves the persistent challenge of providing modular connectivity where traditional wall boxes can't go. In retrofit scenarios—adding voice/data to existing conference rooms, breakrooms, or open-plan hoteling desks—this surface mount box eliminates drywall cutting, mud/tape/paint cycles, and the coordination headaches of scheduling low-voltage work around occupied spaces. The adhesive-tape mounting option enables same-day deployments: peel, stick, snap in your keystones, done. For permanent installs, two #6 screw holes provide pull-rated attachment to wood studs, steel studs with anchors, or furniture panels, while the optional magnet base transforms the box into a relocatable termination point for factory floors, server rooms, or anywhere steel surfaces and changing layouts intersect. The quick-release cover is the operational differentiator—press the release tabs, cover pops off, swap a module or move a patch cord, snap it closed. No screwdriver, no lost hardware, no frustration when you're balancing on a ladder with a tone generator in one hand. When security or high-vibration environments demand it, a single screw through the cover's center hole locks everything down without sacrificing the tool-free access for everyday work.

Plenum rating isn't optional in most commercial construction—2020+ building codes and insurance requirements push low-smoke/low-flame materials into every air-handling space, and the gap between drop ceilings and structural decks is legally defined as plenum in the majority of North American jurisdictions. The CBXQ4IW-A's UL 2043 listing means it's engineered and tested to NFPA 90A combustion limits: if fire reaches the ceiling cavity, this box won't contribute significant smoke or flame spread, protecting egress paths and limiting liability. That certification extends its deployment range beyond above-ceiling installations to under-floor datacenter zones, return-air plenums in HVAC systems, and any space where the authority having jurisdiction red-lines non-plenum materials during permit review. The ABS polymer construction balances impact resistance with the low-combustion chemistry required for UL 2043, and the 10-pack carton quantity aligns with typical per-floor or per-wing rollouts—order once, install a full conference level or open-plan pod without mid-job restock runs.

UL 1863 certification confirms the box meets enclosure standards for communications wiring devices, RoHS compliance clears it for government and EU-market projects, and the Sub-Brand designation as Pan-Net® places it squarely in Panduit's structured cabling ecosystem. When your spec calls for Mini-Com modules and your install conditions rule out recessed boxes, the CBXQ4IW-A is the plenum-rated, quick-access, multi-mount solution that keeps projects on schedule and inspectors happy.
