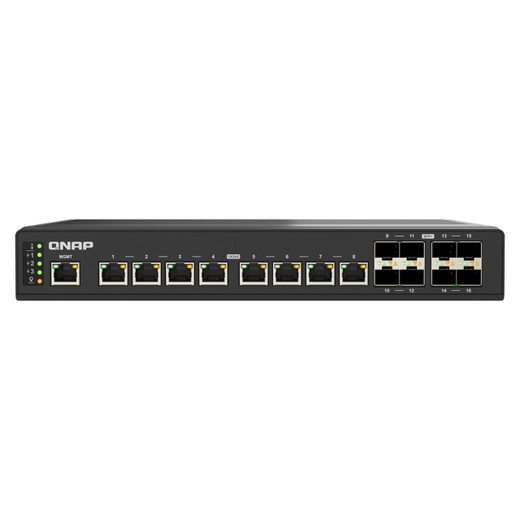

QNAP QSW-IM3216-8S8T-US Industrial 16-Port Full 10GbE Fanless Layer 3 Lite Switch
The QSW-IM3216-8S8T-US is a 16-port, full 10GbE industrial managed switch built around the Marvell 98DX3550 ASIC with 8GB DDR4 and a 320Gbps non-blocking backplane. It delivers line-rate 10G connectivity across all 16 ports — 8 x SFP+ fiber and 8 x RJ45 copper — in a fanless, IP20-rated enclosure designed to operate in factory floors, outdoor cabinets, and other environments where fan noise, vibration, and wide supply-voltage swings would disqualify standard commercial gear. If you're wiring a high-density network switch backbone for a surveillance or industrial automation site and need the full port count running at 10G without active cooling, the QSW-IM3216-8S8T-US (often searched as QSW IM3216 8S8T US) is worth a direct look.
Port Configuration and Throughput
- 8 × 10GbE SFP+ fiber ports (10G/1G): Single-mode or multi-mode fiber runs to remote IDF closets, server rooms, or high-bandwidth NVR appliances without copper distance limits. The 10G/1G auto-negotiation means legacy 1G SFP modules still work if you're migrating incrementally — no forced forklift upgrade.
- 8 × 10GbE RJ45 copper ports (10G/5G/2.5G/1G): Multi-gig auto-negotiation on the copper side lets you connect Cat5e/Cat6 endpoints at their maximum capable speed rather than forcing everything to 1G or 10G. Useful when mixing older workstations and new NAS or edge compute nodes on the same switch.
- 320Gbps switching capacity: Non-blocking at full line rate across all 16 ports simultaneously. At 10G per port × 16 ports × duplex = 320Gbps total, so there is no oversubscription to plan around — critical for surveillance deployments where a multi-camera burst to a central NVR cannot afford internal congestion.
- Marvell 98DX3550 with 8GB DDR4: The 98DX3550 is a proven Layer 3 Lite ASIC used in enterprise-class equipment. The 8GB DDR4 allocation means large MAC and routing tables won't hit memory pressure in dense deployments — a meaningful advantage over embedded-RAM designs common in lower-cost industrial gear.
PoE Delivery
The QSW-IM3216-8S8T-US does not include PoE output on the reviewed specification. It is a pure switching platform — cameras, access points, and IP phones connected to this switch will require their own PoE injectors or a separate PoE switch upstream. Factor that into your PoE switch selection if endpoint power delivery is a requirement.
Management and Monitoring
As a Layer 3 Lite switch, the QSW-IM3216-8S8T-US supports inter-VLAN routing, static routing, and the management feature set associated with QNAP's QSS (QNAP Smart Switch) OS platform — appropriate for segmenting camera VLANs from production traffic, isolating IoT networks, or building a collapsed distribution layer in a smaller industrial facility. For deeper guidance on designing switch architecture for multi-camera environments, see the network switch buying guide.
Environmental Ratings and Durability
- Fanless design: No moving parts means no fan bearing failures over time — the single most common mechanical failure mode in switches deployed in dusty or vibration-heavy environments. In a factory or utility room, a fanless switch is also an acoustic non-issue next to loud machinery.
- IP20 enclosure: Protects against solid objects greater than 12mm (fingers, tools) and provides no liquid ingress protection. IP20 is appropriate for enclosed industrial cabinets, control panels, and indoor utility spaces — it is not rated for direct water exposure or outdoor open-air mounting. If you need outdoor-rated switching, plan for a protective cabinet enclosure.
- Redundant 9–54VDC input: The wide DC voltage window (9V to 54V) accommodates 12V, 24V, and 48V DC bus architectures common in industrial automation, telecom, and solar/battery-backed installations. Redundant DC inputs mean a failed power feed does not drop the switch — critical in unattended remote sites.
- 48.632W max power consumption: At under 49W draw, this switch can be powered from a standard 60W DC supply with headroom, and the thermal output is low enough that the fanless design stays viable across typical industrial temperature ranges.
Installation Notes
The DC-only power input distinguishes the QSW-IM3216-8S8T-US from AC-powered commercial switches and affects site planning: you need a regulated DC power source in the 9–54VDC range rather than a standard IEC power strip. The redundant input terminals support dual-feed wiring for high-availability installs. Verify cabinet depth before ordering — industrial DIN-rail or rack mount configurations vary by enclosure. This switch pairs naturally with a QNAP NAS or NVR as a dedicated 10G aggregation layer, eliminating the bottleneck of 1G uplinks from high-resolution camera clusters. For large-scale deployments combining NVRs and high-channel camera counts, also review network video recorders to size the storage tier appropriately alongside this switching infrastructure.
Frequently Asked Questions
Q: Does the QSW-IM3216-8S8T-US support PoE output for powering cameras or access points?
A: No. The QSW-IM3216-8S8T-US is a non-PoE switch. It provides 10GbE connectivity only — endpoint devices requiring PoE need a separate PoE injector or PoE-capable switch feeding into this unit.
Q: What is the switching capacity of the QSW-IM3216-8S8T-US?
A: The backplane bandwidth is 320Gbps — non-blocking at full line rate across all 16 ports simultaneously, so there is no oversubscription at 10G per port.
Q: What power supply does the QSW-IM3216-8S8T-US require?
A: It requires a regulated DC source in the 9–54VDC range. It does not accept standard AC (IEC) power. The unit supports redundant DC inputs for dual-feed high-availability wiring. Maximum consumption is 48.632W.
Q: Is the QSW-IM3216-8S8T-US suitable for outdoor deployment?
A: Not without a protective enclosure. The IP20 rating covers solid-object protection only — there is no liquid ingress protection. Mount it inside a sealed outdoor cabinet rated for your local weather conditions.
Q: What SFP+ modules are compatible with the QSW-IM3216-8S8T-US fiber ports?
A: The 8 SFP+ ports support 10G and 1G modules. For verified module compatibility, consult the QNAP compatibility list for the QSW-IM3216-8S8T series directly from the manufacturer.
Q: What processor and memory does the QSW-IM3216-8S8T-US use?
A: It runs on the Marvell 98DX3550 ASIC with 8GB DDR4 — a combination that supports large forwarding tables and Layer 3 Lite routing without memory-constrained performance degradation.
The QSW-IM3216-8S8T-US addresses a specific gap: you need full 10G across all 16 ports, a non-blocking 320Gbps backplane, and DC power compatibility — in a switch that won't fail from fan wear in a dusty control cabinet. That combination is harder to source than it sounds in the managed industrial switch space.
Technical Highlights:
- Marvell 98DX3550 / 8GB DDR4: This ASIC handles large L2/L3 Lite forwarding tables without the memory ceiling issues common in embedded-RAM industrial ASICs — important when you're aggregating dozens of camera VLANs.
- 320Gbps non-blocking backplane: All 16 ports at 10G simultaneously with zero oversubscription. On a multi-NVR deployment where several servers are pulling 4K streams concurrently, internal congestion is not a variable you want in the equation.
- 9–54VDC redundant input at 48.632W max draw: The wide DC window covers 12V, 24V, and 48V industrial bus architectures. At under 49W, a 60W DC supply runs this switch with thermal headroom to spare — and the redundant input terminals let you dual-feed for unattended remote-site uptime.
Deployment Considerations:
- DC-only power means site prep must include a regulated DC supply in the 9–54V range — this is not a drop-in for AC-powered IDFs. Budget the PSU and cabling during the design phase, not on install day.
- IP20 is strictly indoor-cabinet rated. Direct rain, wash-down environments, or open outdoor mounting require a sealed enclosure around the switch — plan cabinet IP ratings before the hardware arrives on site.
Best fit: a 10G aggregation layer in a hardened industrial surveillance or automation installation — specifically where DC bus power, fanless reliability, and non-blocking 10G throughput to a QNAP NAS or NVR cluster are all required simultaneously.
