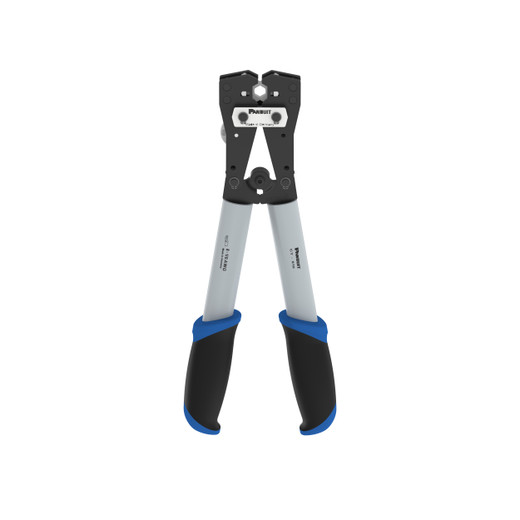

Panduit CT-810 Pan-Lug™ Manual Crimping Tool
The Panduit CT-810 is a manual crimping tool engineered for terminating copper lugs on large-gauge conductors from 8 AWG through 1/0 AWG. Integrators installing UPS systems, battery banks, or datacenter power distribution need reliable, code-compliant terminations on heavy conductors—this tool delivers UL and CSA approved crimps without the cost or complexity of hydraulic equipment. The integrated 6-position rotating wheel eliminates the need for individual die sets, reducing jobsite complexity and setup time.
Key Features
- 6-position rotating wheel handles 8, 6, 4, 2, 1, and 1/0 AWG copper connectors without die changes
- UL and CSA approved crimping for code-compliant terminations
- Durable construction for long-term reliability in commercial and industrial environments
- Compact 15.71" length and 6.31" width for jobsite portability
- Single-unit package—no additional dies or accessories required
Large-gauge wire termination is a frequent requirement in security and datacenter installations. Battery backup systems for access control panels, IP camera PoE++ switches with DC input options, and centralized UPS racks all demand secure, low-resistance connections on 2 AWG or larger conductors. The CT-810's rotating wheel indexes to the correct crimp profile for each wire gauge, ensuring consistent compression across the full contact area of the lug barrel. UL listing confirms that crimps meet pullout and resistance thresholds for NEC 110.14 and 690.31 compliance—critical for inspection signoff on commercial projects. The tool's ratchet mechanism prevents partial crimps; once engaged, the handle must complete the full stroke before releasing, eliminating the operator error that leads to loose terminations and service callbacks.
Datacenter and large-scale security installations often involve dozens of battery-to-busbar or UPS-to-PDU terminations. Hydraulic crimpers deliver force but require power, hoses, and a pump unit—impractical for retrofit work in occupied buildings or remote equipment closets. The CT-810 provides the middle ground: sufficient mechanical advantage for 1/0 AWG copper lugs while remaining a hand-portable, single-operator tool. The 15.71" overall length fits inside a standard tool bag, and the 35mm profile clears tight work envelopes around battery racks and electrical panels. For integrators running split DC power from a central UPS to distributed rack-mount equipment, this tool turns a four-hour termination job into a two-hour task—no setup, no teardown, no hydraulic fluid leaks on a customer's finished floor.
Pan-Lug crimping tools are designed for the professional who terminates large-gauge conductors regularly, not occasionally. The hardened steel jaws and precision-machined wheel provide repeatable crimp geometry across thousands of cycles, and the tool's single-piece frame eliminates the flex and misalignment common in stamped-metal competitors. For security integrators bidding on hospital generator tie-ins, municipal solar-plus-storage projects, or colocation facility build-outs, the CT-810 is the go-to tool for delivering code-compliant, inspection-ready terminations on the first attempt. Manufacturer warranty covers defects; replacement parts including the rotating wheel and ratchet pawl are available separately for long-term serviceability.
